| Code | J061 |
|---|---|
| Model | PT-2500 |
| Capacity | 2500kg Load Capacity |
| Weight (kg) | 72 |
| Weight (m3) | 0.520 |
| Weight (Freight) | 173.160 |
| Dimensions (cm) | 165 x 70 x 45 |

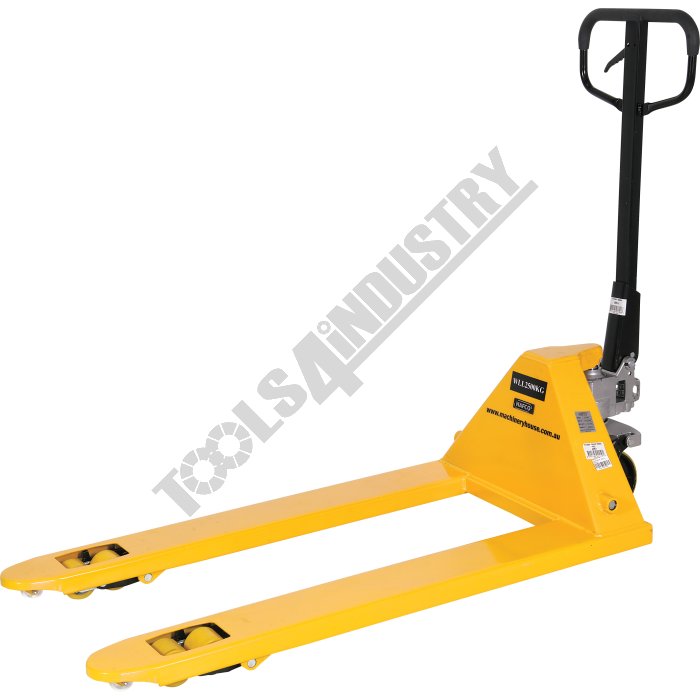

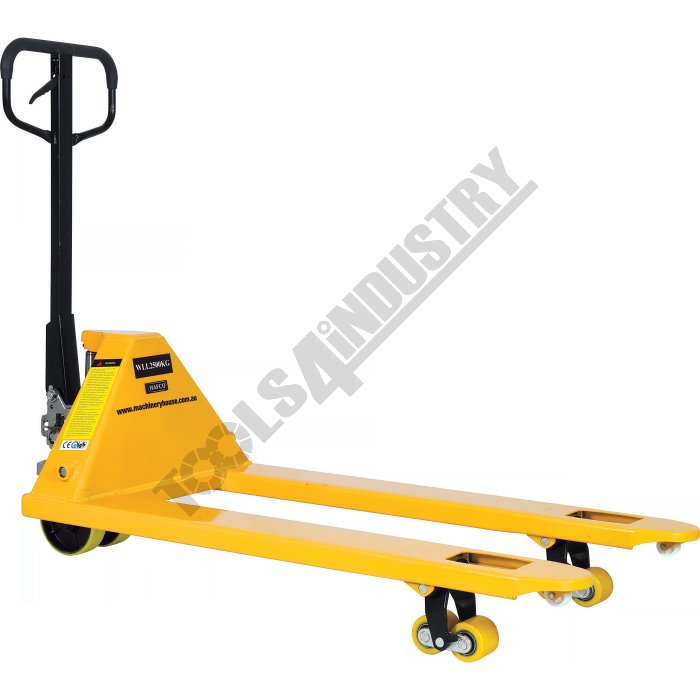

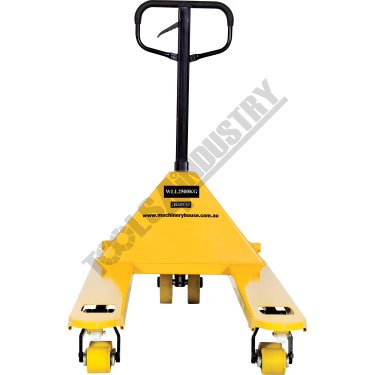

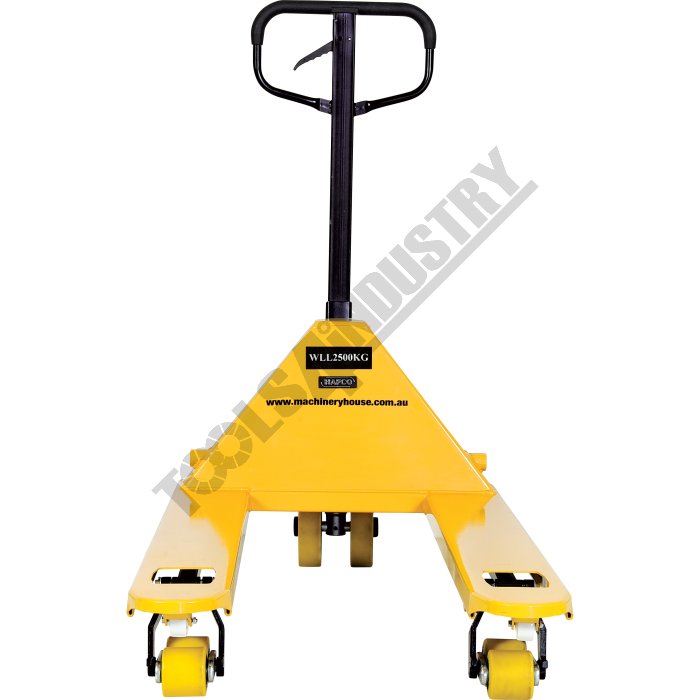

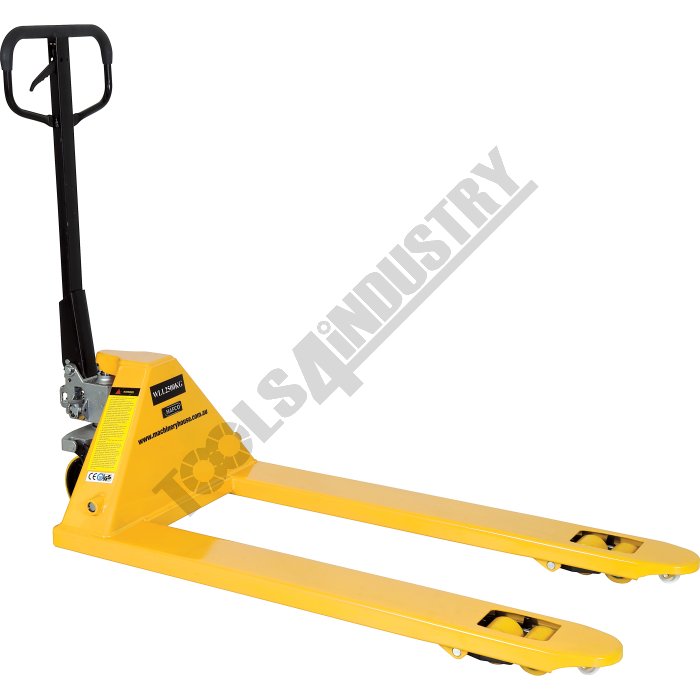

Hydraulic Pallet Truck PT-2500 2500kg Load Capacity
Description
This 2500KG pallet truck is suitable for many types of industries for example, Hire Companies, Work Sites, Manufacturing Shops, Shopping Centres, Warehousing Stores, Bottle Shops & Schools & TAFES.Features

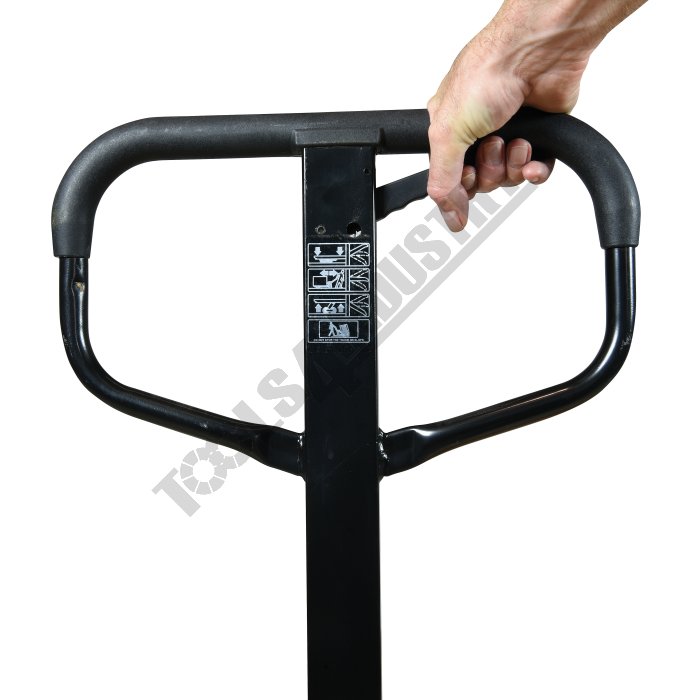

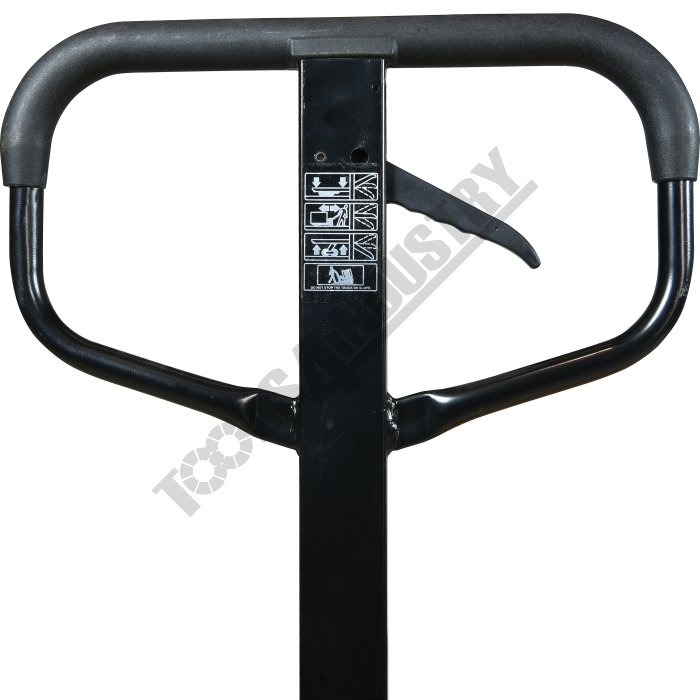

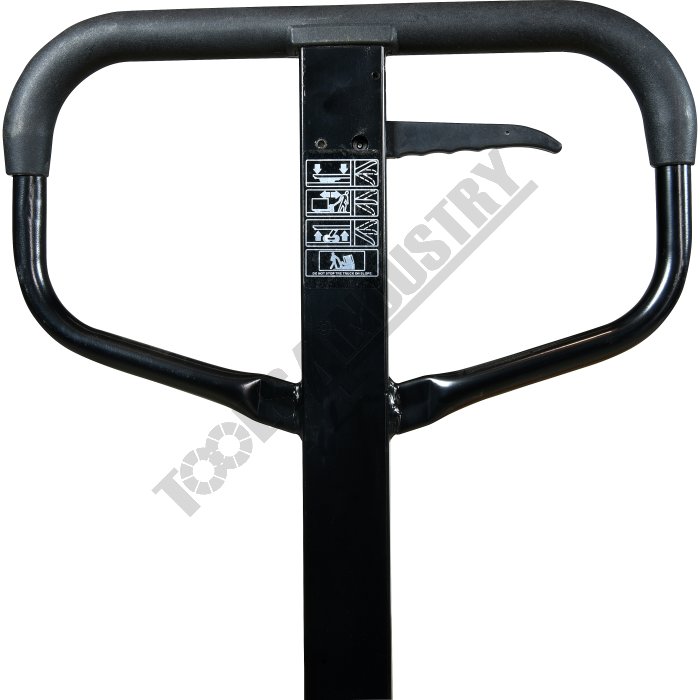

- 3-stage fingertip control (raise - neutral - lower)

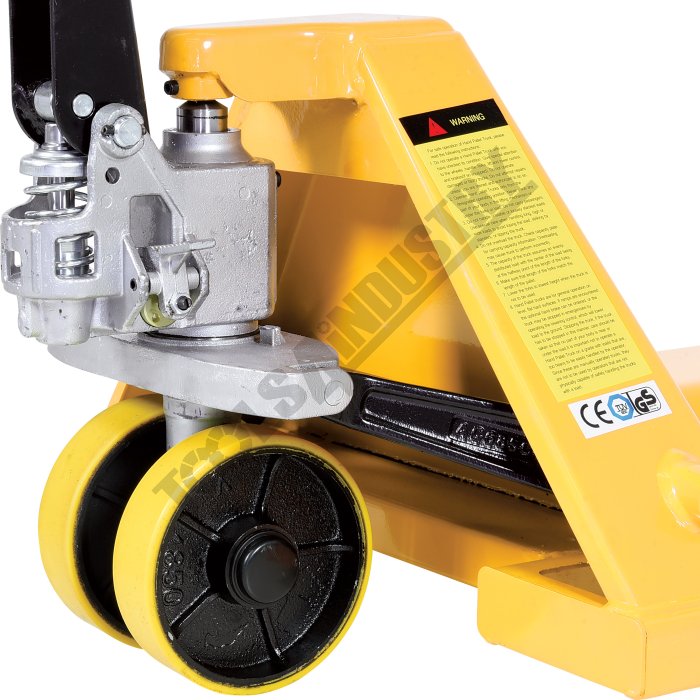

- Twin Rear 180 x 50mm Polyurethane-coated cast Iron wheels with metal hubs

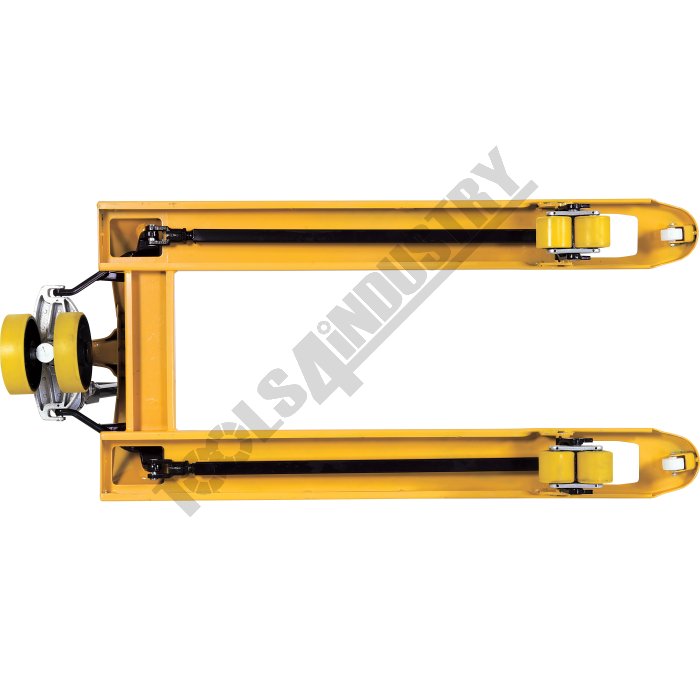

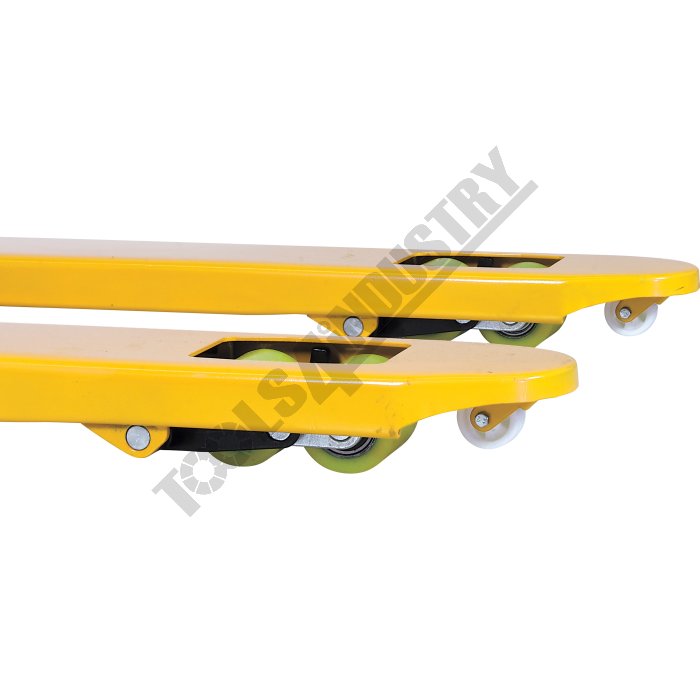

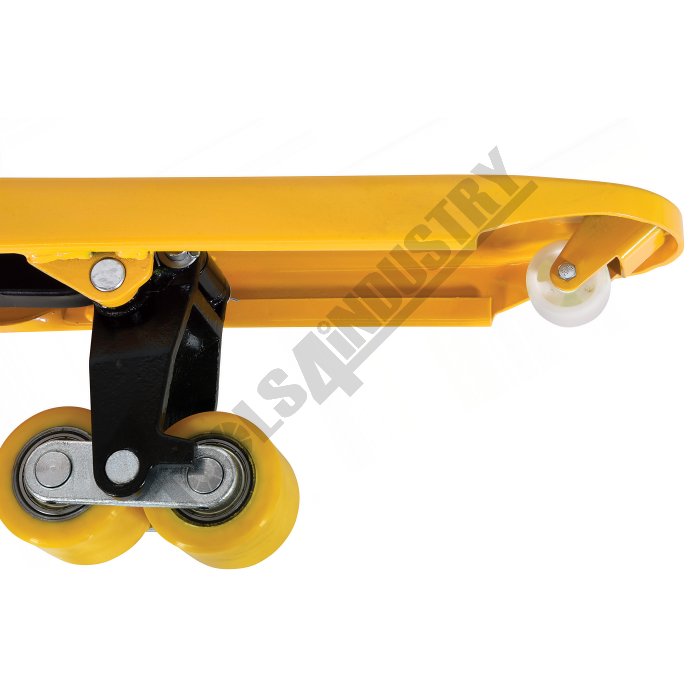

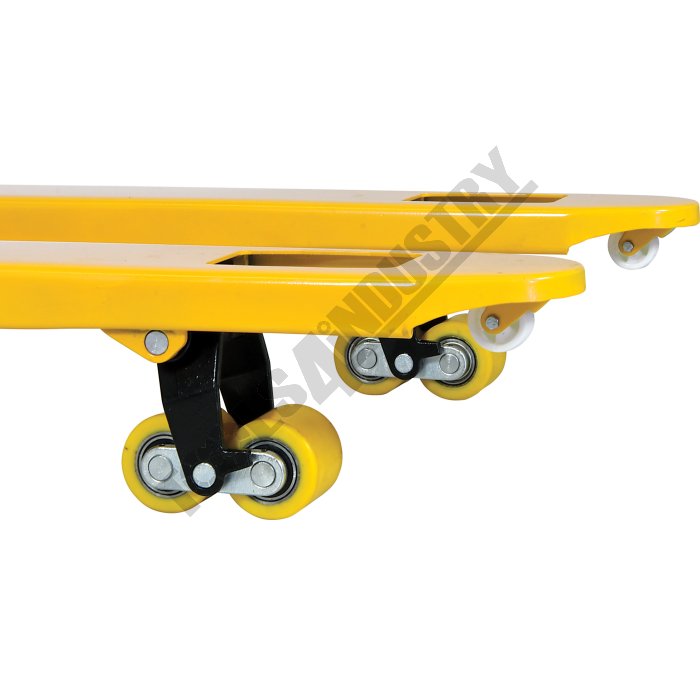

- Dual front wheels, ideal for mezzanine floors to distribute the load

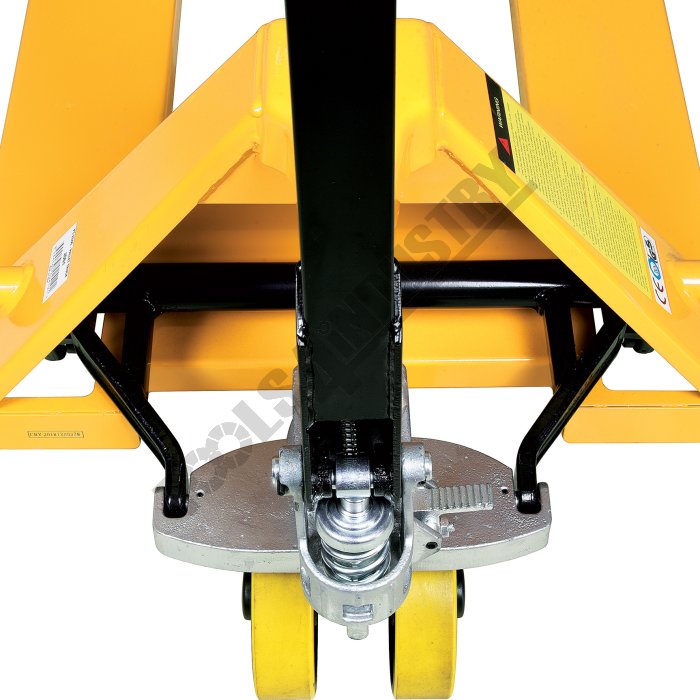

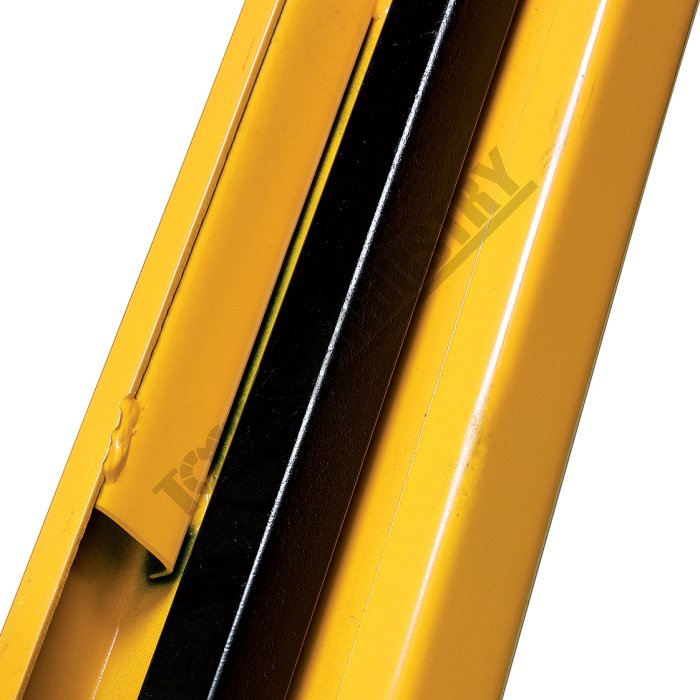

- Fork legs reinforced with welded box section to increased strength

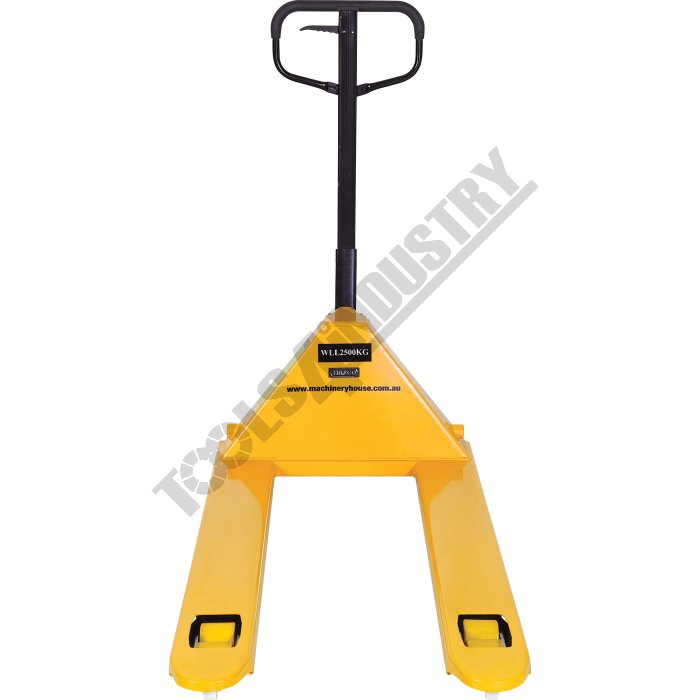

- Tapered front guides to help assist with pallet entry

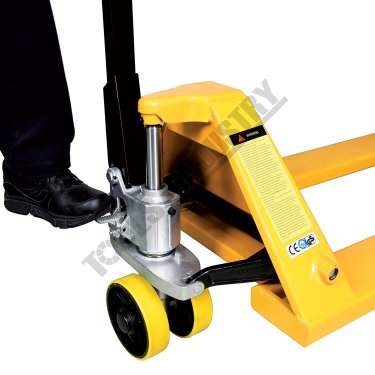

- Foot release lever for lowering tynes
- Cast iron pump designed to increase pump life
- Greasing nipples provides lubrication to bearings

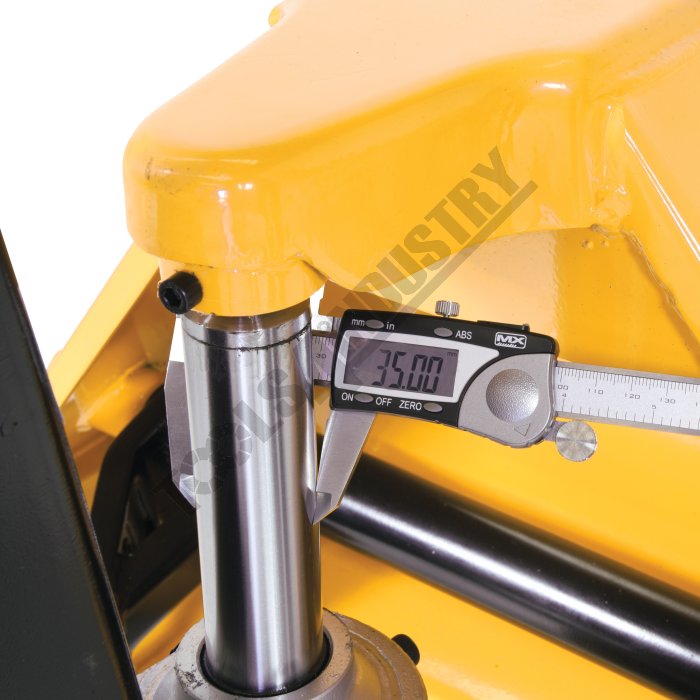

- Chrome piston and ram for prolonged life
- 685mm width of forks for easy & stable pallet manoeuvrability
- Bypass valve prevents overload
- 180º turning circle
- Quality steel fabrication
Specifications
- Compare 1 Products
- ORDER CODE
- MODEL
- Load Capacitykg
- Total Lift Heightmm
- Lowered Fork Heightmm
- Height (without Handle)mm
- Width Between Legsmm
- Total Heightmm
- Fork Lengthmm
- Blade Widthmm
- Width Over Forksmm
- Front Fork Wheelsmm
- Rear Swivel Wheelsmm
- Lift Speedmm/Stroke
- Overall Dimensions (L x W x H)mm
- Nett Weightkg
- J061
- PT-2500
- 2500
- 195
- 85
- 431.5
- ~
- 1235
- 1220
- 160
- 685
- Ø80
- Ø185
- ~
- ~
- 77
| ORDER CODE | PT-2500 |
|---|---|
| MODEL | 2500 |
| Load Capacitykg | 195 |
| Total Lift Heightmm | 85 |
| Lowered Fork Heightmm | 431.5 |
| Height (without Handle)mm | ~ |
| Width Between Legsmm | 1235 |
| Total Heightmm | 1220 |
| Fork Lengthmm | 160 |
| Blade Widthmm | 685 |
| Width Over Forksmm | Ø80 |
| Front Fork Wheelsmm | Ø185 |
| Rear Swivel Wheelsmm | ~ |
| Lift Speedmm/Stroke | ~ |
| Overall Dimensions (L x W x H)mm | 77 |
| Nett Weightkg |
