| Code | G1975 |
|---|---|
| Model | TM-U3 |
| Capacity | 370W, 240V Motor |
| Weight (kg) | 50 |
| Weight (m3) | 0.087 |
| Weight (Freight) | 50 |
| Dimensions (cm) | 52 x 41 x 41 |

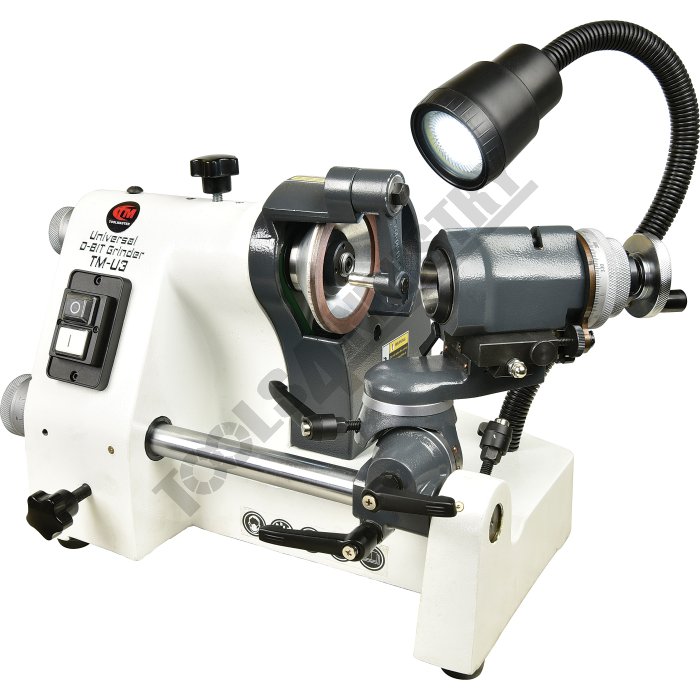

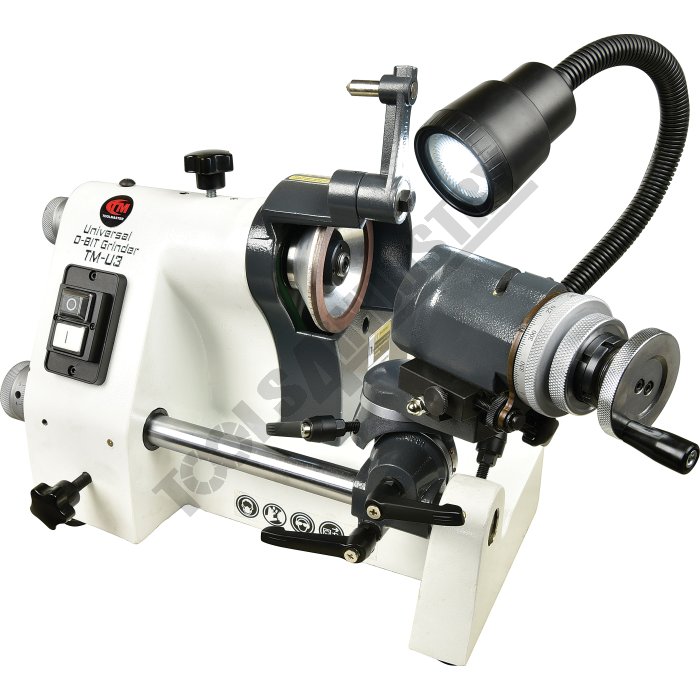

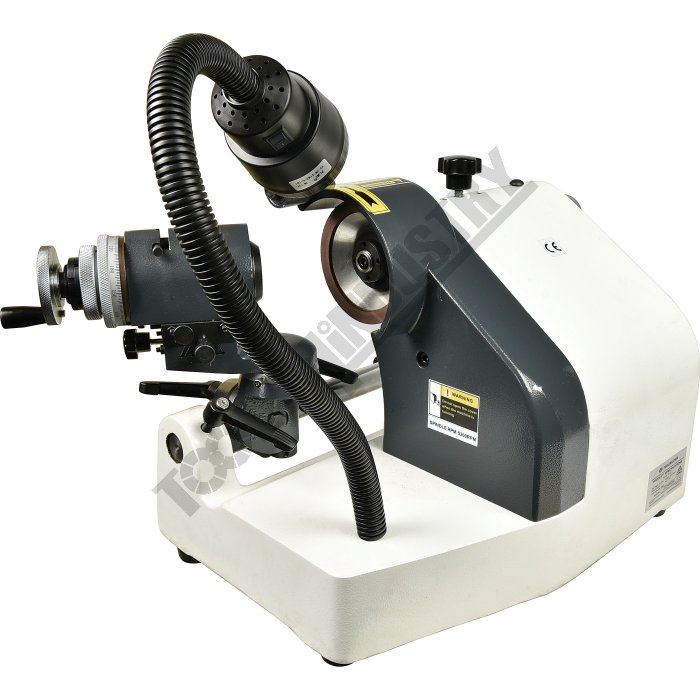

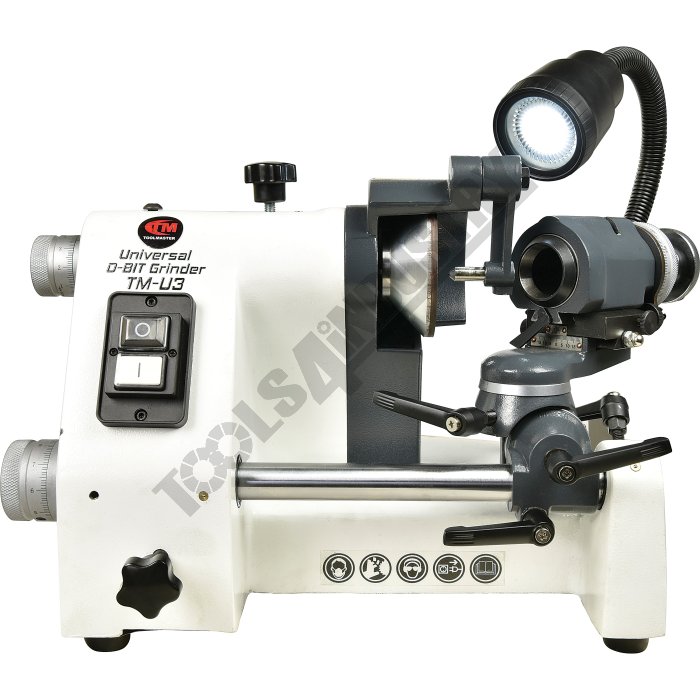

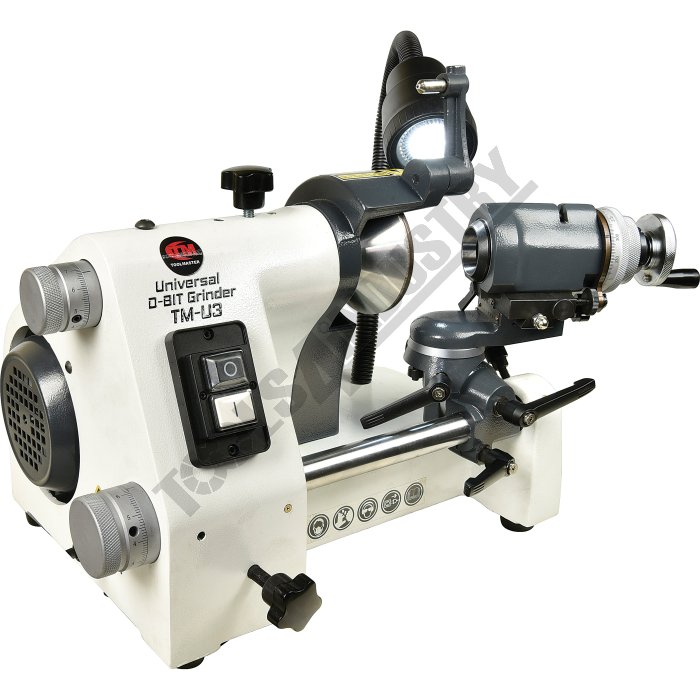

TM-U3 Universal D BIT Grinder 370W, 240V Motor
Description

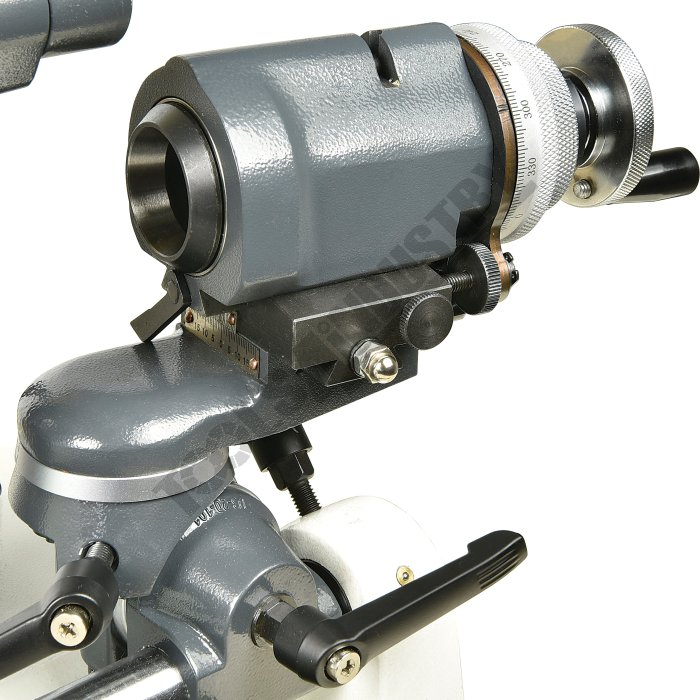

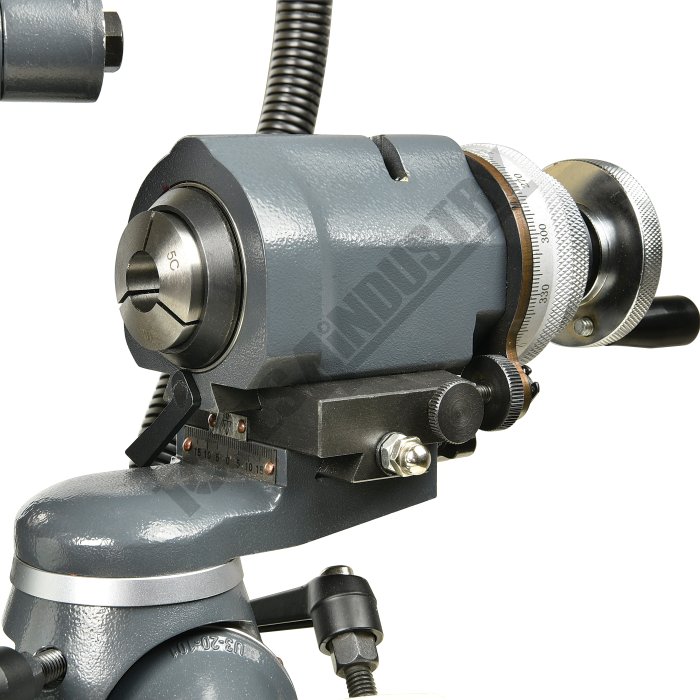

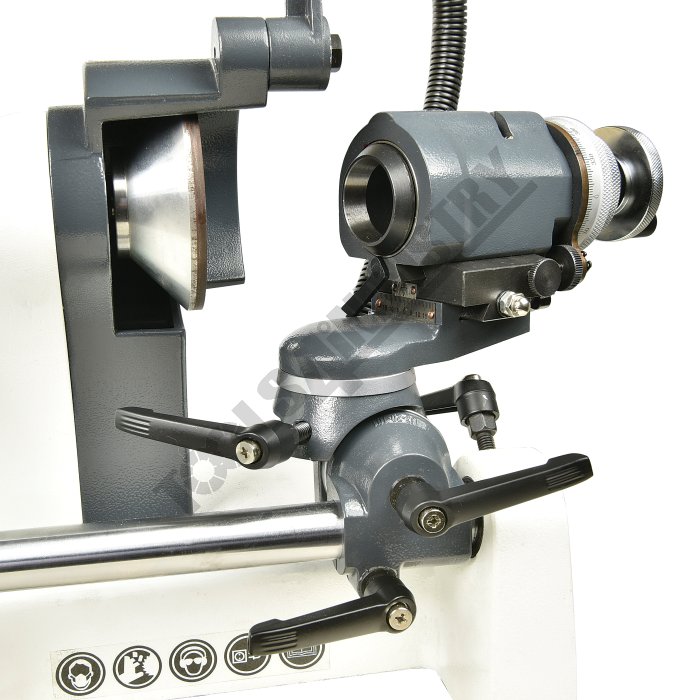

Used for grinding of HSS and carbide engraving cutters with single and multiple flutes in various shapes. The cutters are held by 5C collets in the end mill grinding attachmentWith the accessories provided the universal "D" bit grinder can be set up to grind end mills, slot drills and drill bits.
For more information see the manual under "Downloads"
Features
- Grinding wheel size 100 x 50 x 20mm
- Halogen Light 12V
- 370W, 240V motor
- Taper angles 0 - 180º
- Relief angle 0 - 45º
- Negative angle 0 - 26º
- Metric & imperial 5C collets
- Grinding speed 5200rpm
Includes
- Wheel dresser with diamond
- Wheel flange mounted

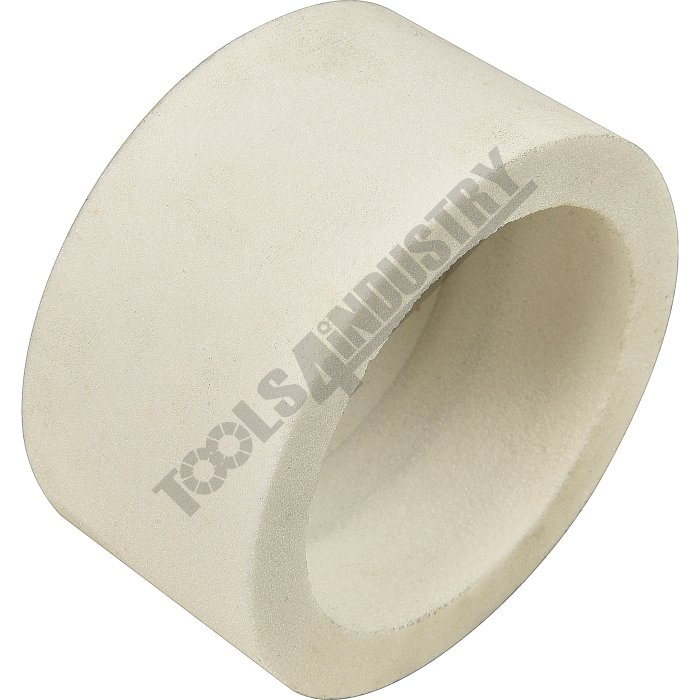

- Diamond wheel

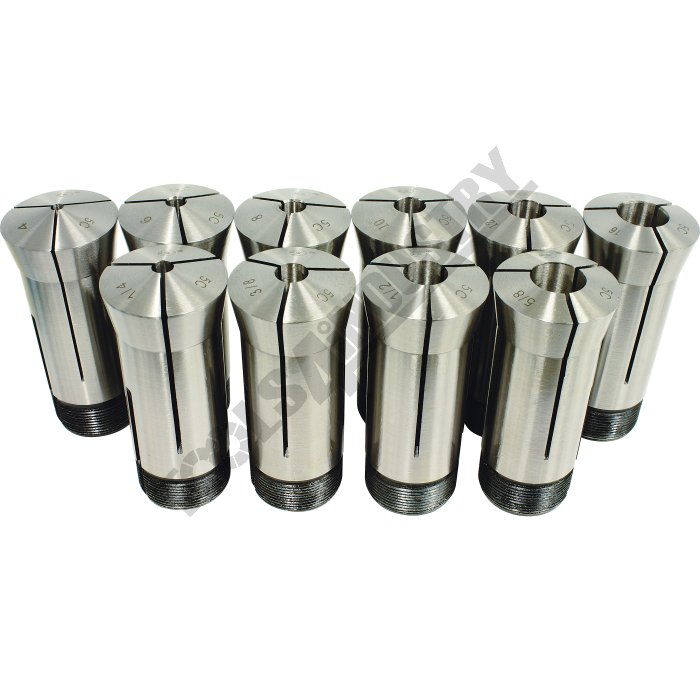

- 4, 6, 8, 10, 12, 16mm, 1/4", 3/8", 1/2" & 5/8" 5C collets
- Aligning finger

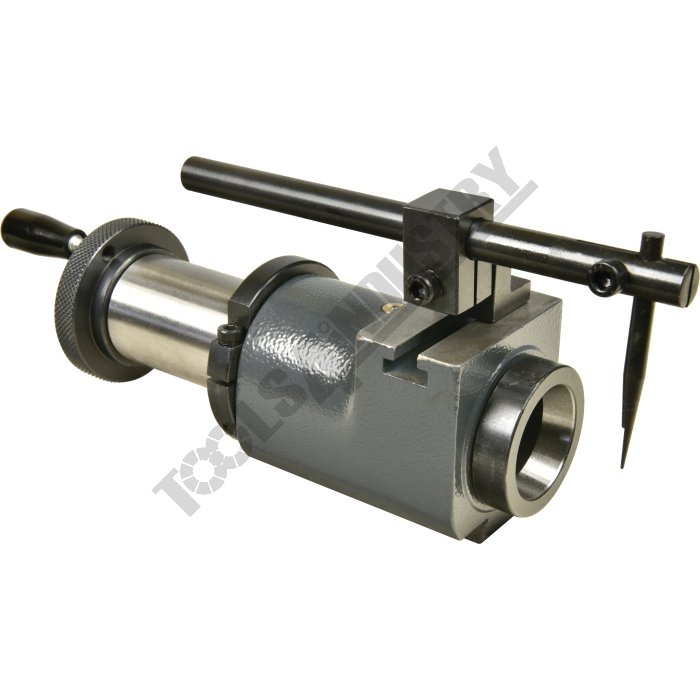

- End mill grinding attachment

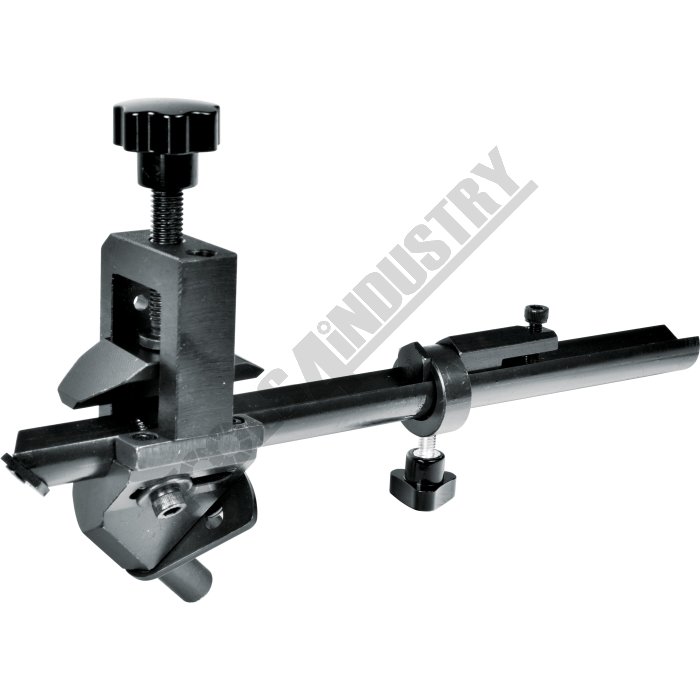

- Drill bit grinding attachment

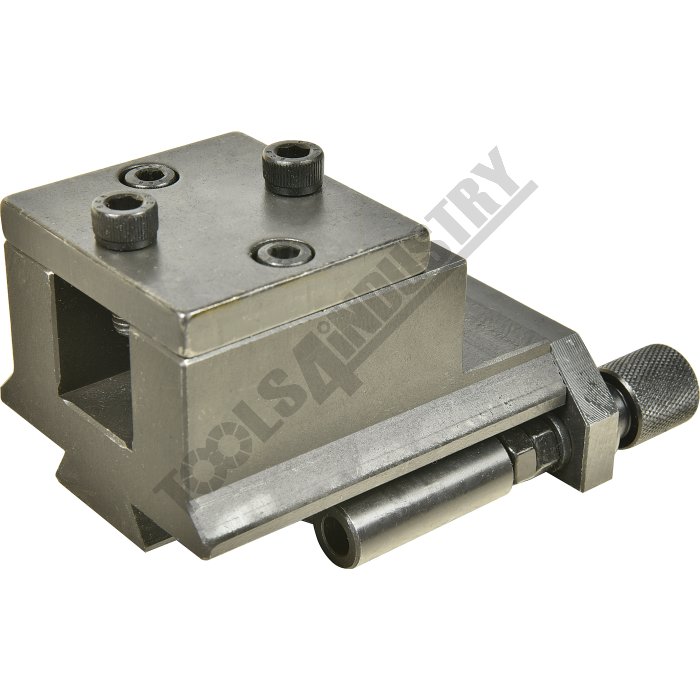

- Lathe tool grinding attachment
Specifications
- Compare 1 Products
- ORDER CODE
- MODEL
- Taper Angledeg
- Relief Angledeg
- Negative Angledeg
- Collet Type
- Spindle Speedrpm
- Motor PowerW
- Voltage / AmperageV / amp
- Nett Weightkg
- G1975
- TM-U3
- 0 - 180
- 0 - 45
- 0 - 26
- 5C
- 5200
- 370
- 240 / 10
- 52
| ORDER CODE | TM-U3 |
|---|---|
| MODEL | 0 - 180 |
| Taper Angledeg | 0 - 45 |
| Relief Angledeg | 0 - 26 |
| Negative Angledeg | 5C |
| Collet Type | 5200 |
| Spindle Speedrpm | 370 |
| Motor PowerW | 240 / 10 |
| Voltage / AmperageV / amp | 52 |
| Nett Weightkg |
