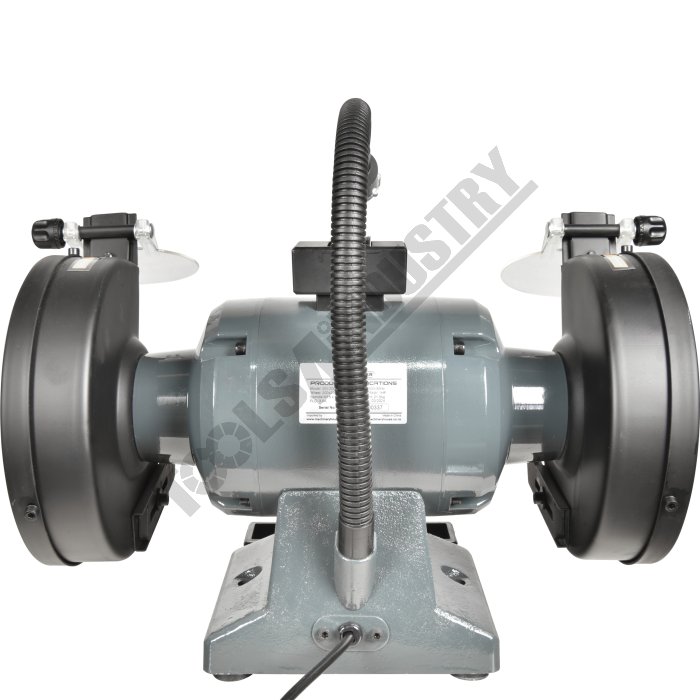

Rear View

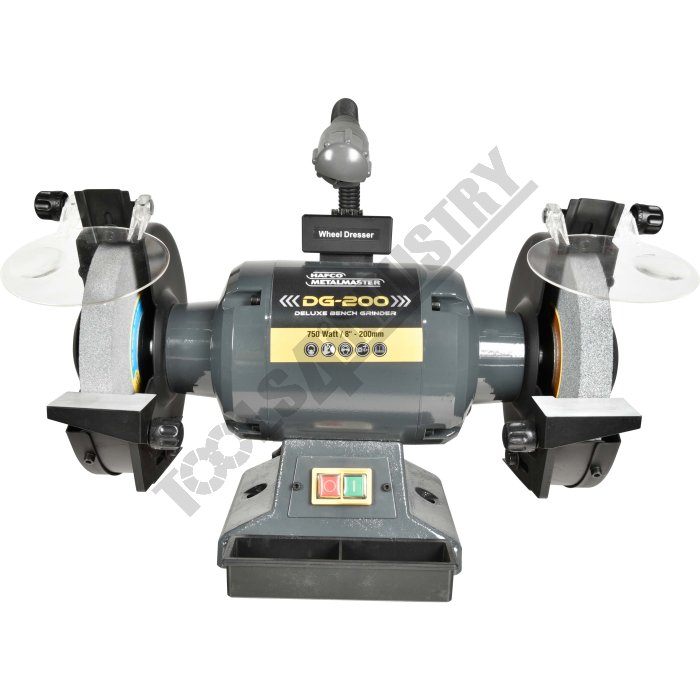

Front View

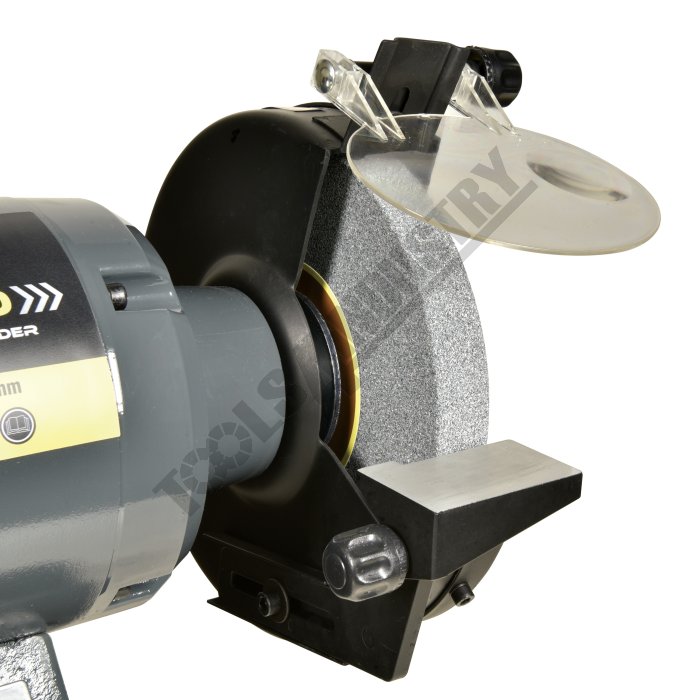

Adjustable Eye Sheild-Tool Rest

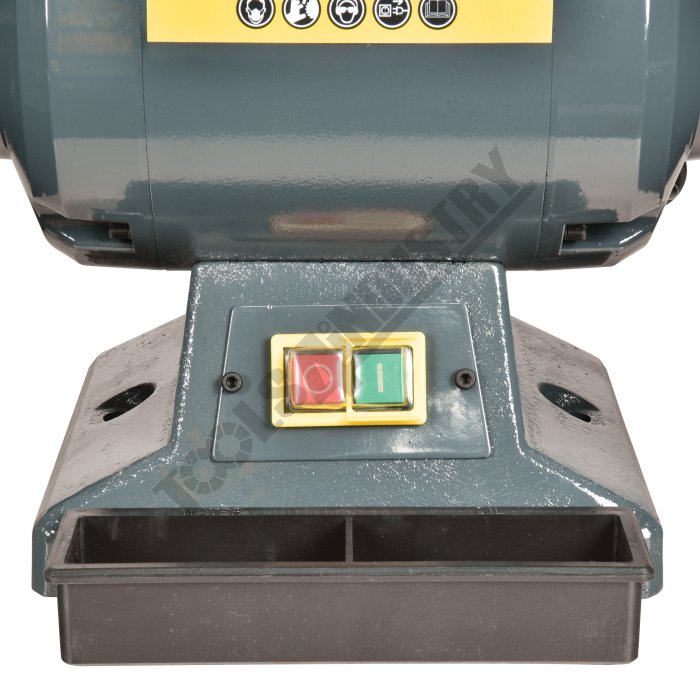

On Off Switch-Cooling Tray

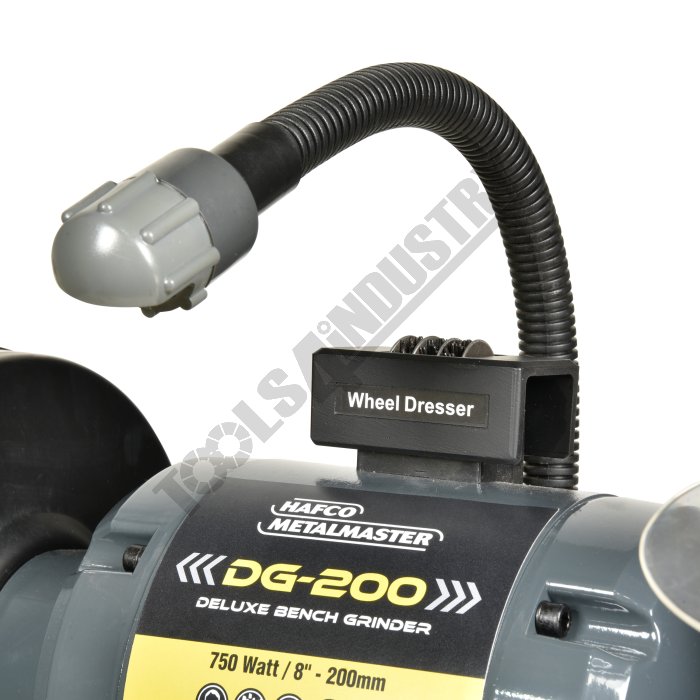

Wheel Dresser-Work Light

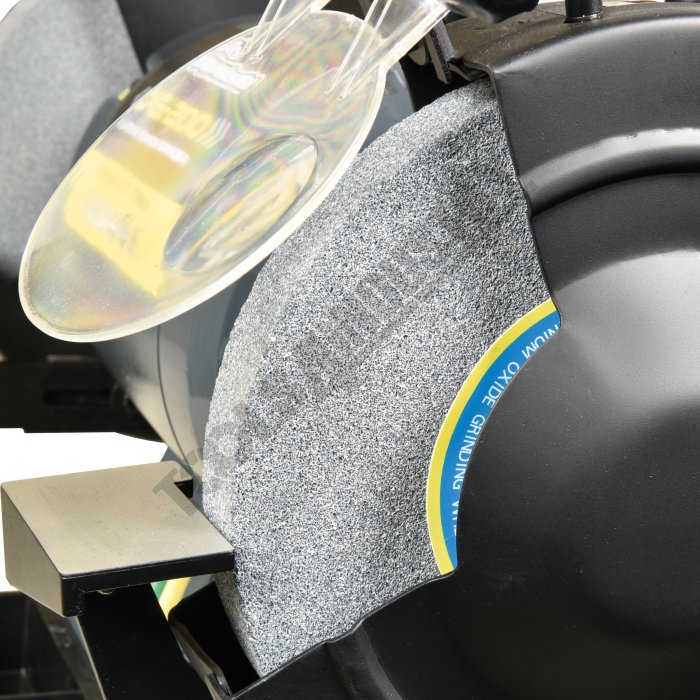

Coarse Aluminium Oxide Grinding Wheel

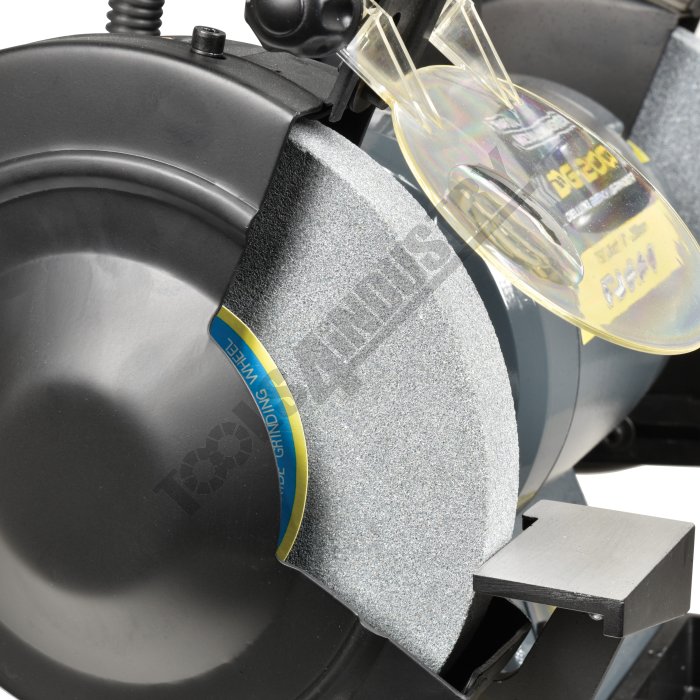

Fine Aluminium Oxide Grinding Wheel

Code	G144
Model	DG-200
Capacity	Supplied with Ø200mm Fine & Coarse Wheels
Weight (kg)	24.5
Weight (m³)	0.050
Weight (Freight)	24.5
Dimensions (cm)	50.5 x 31.5 x 31.5

Product Brochure Instruction Manual [2 MB] Base Dimensions [373 KB]Grinder Risk Assessment

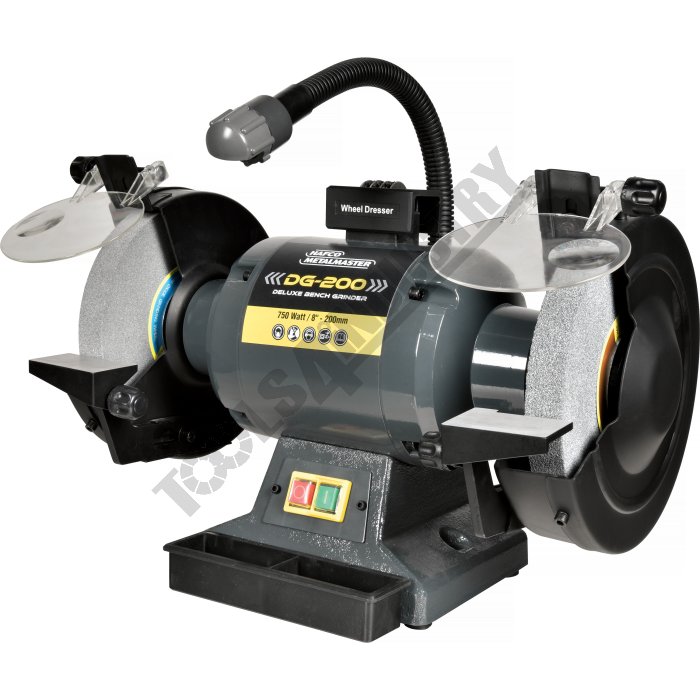

Deluxe Industrial Bench Grinder DG-200 Supplied with Ø200mm Fine & Coarse Wheels

Description

An iconic design that has been tried & tested in the Australian & New Zealand market for decades our Hafco bench grinder offers solid construction & performance that won’t let you down. With a multitude of upgraded inclusions along with the true 1hp (0.75kw) motor & fully sealed ball bearings our grinders will offer years of trouble-free performance.

Features

Internal cooling fan for heavy applications
Includes work light, wheel dresser & water tray
Powerful true 1hp motor for heavy duty applications
Cast iron body & base for superior rigidity
Sealed bearings for lifelong performance
Anti-vibration pads on the base for smooth running
Motor c/w capacitor start/stop for maximum performance
50mm wide wheel guards to allow for fitment of wire wheels
NVR Dustproof on/off switch
Deluxe adjustable tool rests

Includes

25mmm wide grinding wheels (1 x fine & 1 x coarse)
Flexible work light
Rotary wheel dresser
Water tray
Large safety eye shields with magnifier

Optional Accessories

DLA-915 - Deluxe Belt & Disc Linishing Attachment
DLA-1220 - Deluxe Belt & Disc Linishing Attachment
NFK-200 - Buffing Kit

Videos

Specifications

Compare 15 Products
ORDER CODE
MODEL
Grinder TypeBench / Pe
Brand
Grinding Wheel Diametermm
Grinding Wheel Widthmm
Wheel GradeType
Linishing Attachmentmm
Disc Sizemm
Spindle Shaft Thread Sizemm / Inch
Includes
Motor PowerkW / hp
Voltage / AmperageV / amp
Motor Speedrpm
Machine Dimensions (L x W x H)mm
Nett Weightkg

G144
DG-200
Deluxe Bench Grinder
~
200
25
Fine & Coarse
Optional
~
M16
~
0.75 / 1
240 / 10
2850
500 x 280 x 430
22.8

G146
HG-250
Bench
~
250
25
Fine & Coarse
Optional
~
M18
~
0.9 / 1.2
240 / 10
2850
560 x 350 x 380
32.5

G161
BG-8
Bench
Hafco MetalMaster
200
25
Fine & Coarse
Optional
~
5/8"
~
0.75 / 1
240 / 10
~
~
24

G162
BG-10
Bench
Hafco MetalMaster
250
38
Fine & Coarse
Optional
~
1" x 8TPI
~
1 / 1.3
240 / 10
~
~
49

G164
BG-12
Pedestal
Hafco MetalMaster
305
50
Fine & Coarse
Optional
~
1" x 8TPI
Stand
1.5 / 2
415
~
~
119

K4013
HG-200 HLA-915 KIT
Bench
HAFCO METALMASTER
200
25
Fine & Coarse
50 x 915
Ø178
M16
~
0.75 / 1
240 / 10
2850
~
27.1

K4014
HG-200 HLA-1220 KIT
Bench
HAFCO METALMASTER
200
25
Fine & Coarse
50 x 1220
Ø178
M16
~
0.75 / 1
240 / 10
2850
~
27.1

K4018
HG-200
Bench
HAFCO-METALMASTER
200
25
Fine & Coarse
50 x 1220
Ø200
M16 x 2mm
~
0.75 / 1
240 / 10
~
~
35

K4021
DG-200
Bench
HAFCO-METALMASTER
200
25
Fine & Coarse
50 x 915
Ø200
M16 x 2mm
~
0.75 / 1
240 / 10
~
~

K4023
DG-200
Bench
HAFCO-METALMASTER
200
25
Fine & Coarse
~
0.75 / 1
240 / 10
~
~
~

K4022
DG-200
Bench
HAFCO-METALMASTER
200
25
Fine & Coarse
50 x 1220
Ø200
M16 x 2mm
~
0.75 / 1
240 / 10
~
~

G160
ATBG600/8
Bench
ABBOTT & ASHBY
200
25
Fine & Coarse
Optional
~
M16 x 2mm
~
0.6 / 0.8
240 / 10
~
~
23

G152
AA362W8
Bench
ABBOTT & ASHBY
200
25
60 Grit
50 x 915
Ø178
M16 x 2mm
~
0.6 / 0.8
240 / 10
~
~
30

G140
HG-150
Bench
~
150
25
Fine & Coarse
~
~
M12
~
0.37 / 0.5
240 / 10
2850
400 x 240 x 260
10.6

G142
HG-200
Bench
HAFCO METALMASTER
200
25
Fine & Coarse
Optional
~
M16
~
0.75 / 1
240 / 10
2850
470 x 260 x 320
21

ORDER CODE	DG-200
MODEL	Deluxe Bench Grinder
Grinder TypeBench / Pe	~
Brand	200
Grinding Wheel Diametermm	25
Grinding Wheel Widthmm	Fine & Coarse
Wheel GradeType	Optional
Linishing Attachmentmm	~
Disc Sizemm	M16
Spindle Shaft Thread Sizemm / Inch	~
Includes	0.75 / 1
Motor PowerkW / hp	240 / 10
Voltage / AmperageV / amp	2850
Motor Speedrpm	500 x 280 x 430
Machine Dimensions (L x W x H)mm	22.8
Nett Weightkg
