| Code | C7005 |
|---|---|
| Model | SK-8 |
| Capacity | Ø203mm |
| Weight (kg) | 18 |
| Weight (m3) | 0.013 |
| Weight (Freight) | 18 |
| Dimensions (cm) | 25 x 25 x 20 |

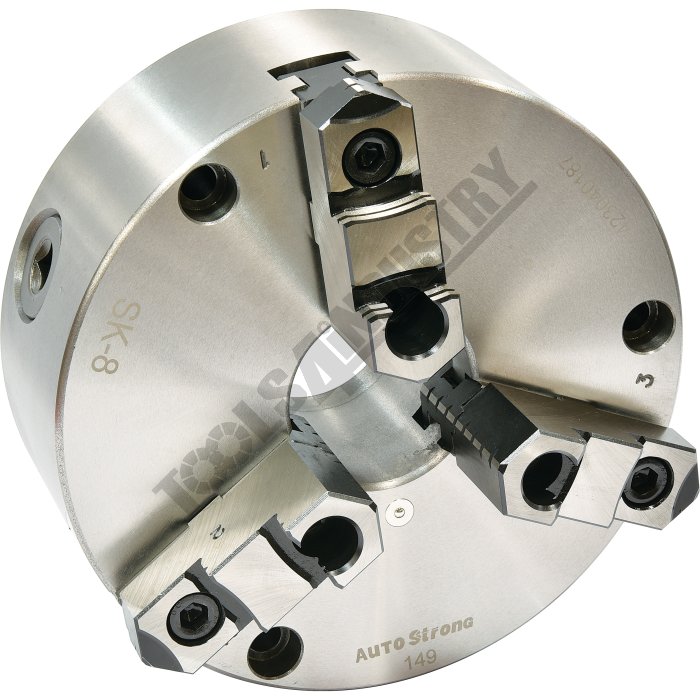

High Precision 3 Jaw Self Centering Lathe Chuck SK-8 Ø203mm
Description
Auto Strong are one of the world’s leading manufacturers of lathe chucks. The SK Series are manufactured in Taiwan with a high precision gripping accuracy of 0.03mm and with a Meehanite casting body they are suitable for high-speed applications.Features
- 3 Jaw self centering lathe chuck
- High precision gripping accuracy of 0.03mm (0.0012”) T.I.R

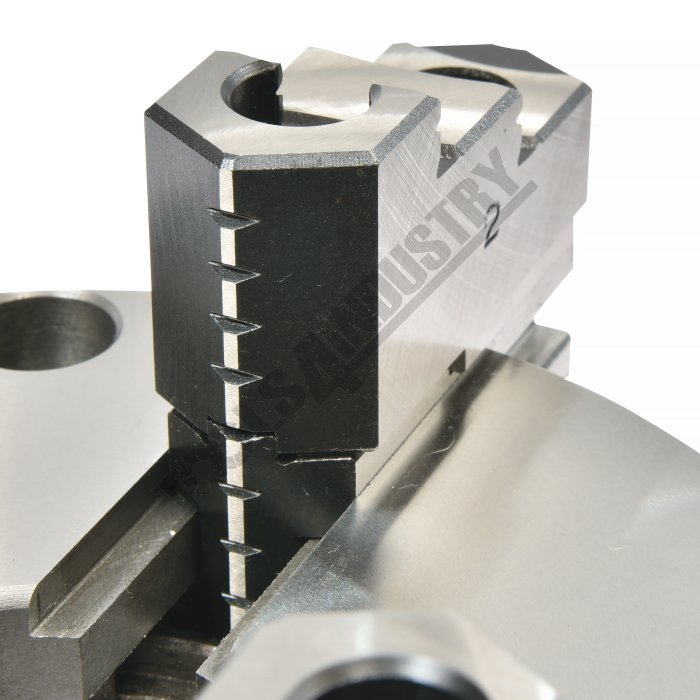

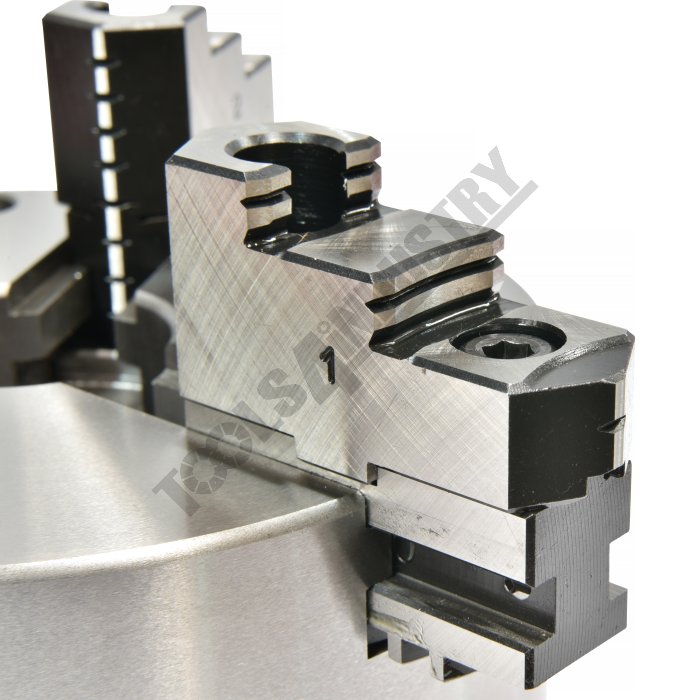

- 2 Piece hard jaws could be used as internal jaws and external jaws
- Meehanite chuck body suitable for high speed (Max. 2000rpm)

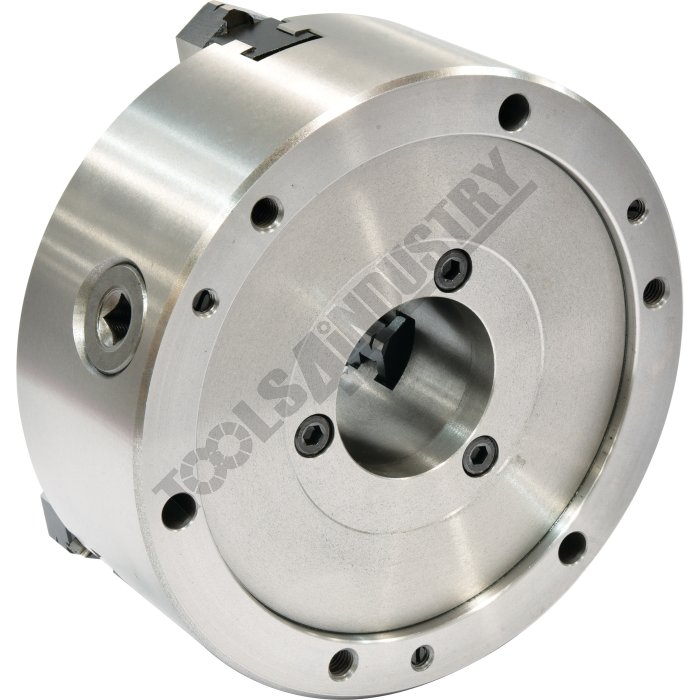

- Plain back suitable for front or rear back plate mounting

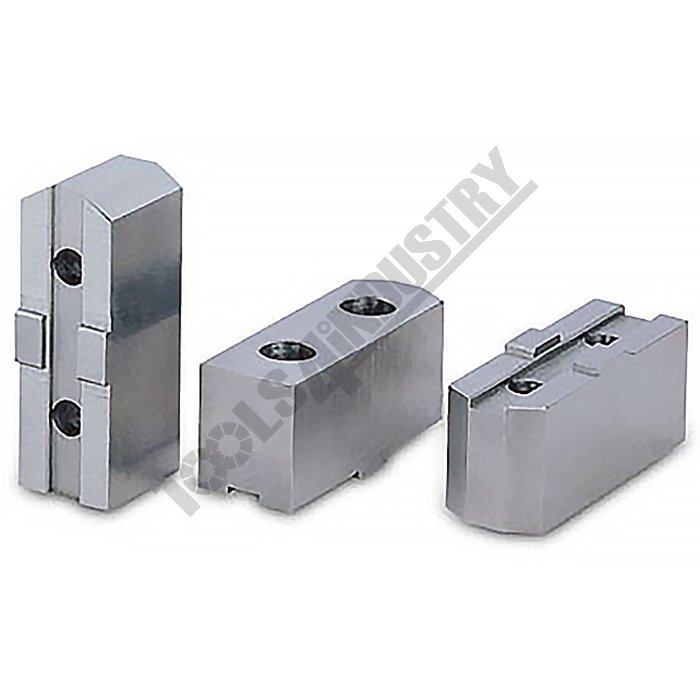

- Optional bolt on soft jaws are available

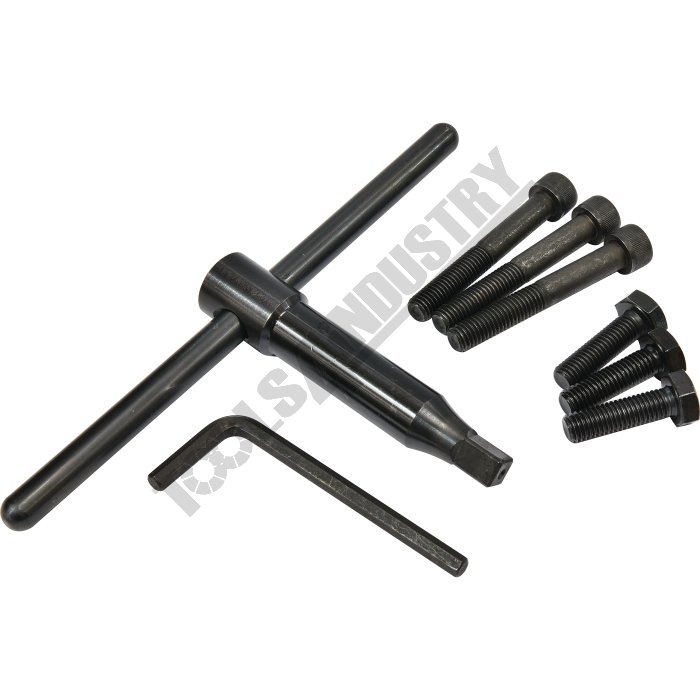

Includes
- Chuck key

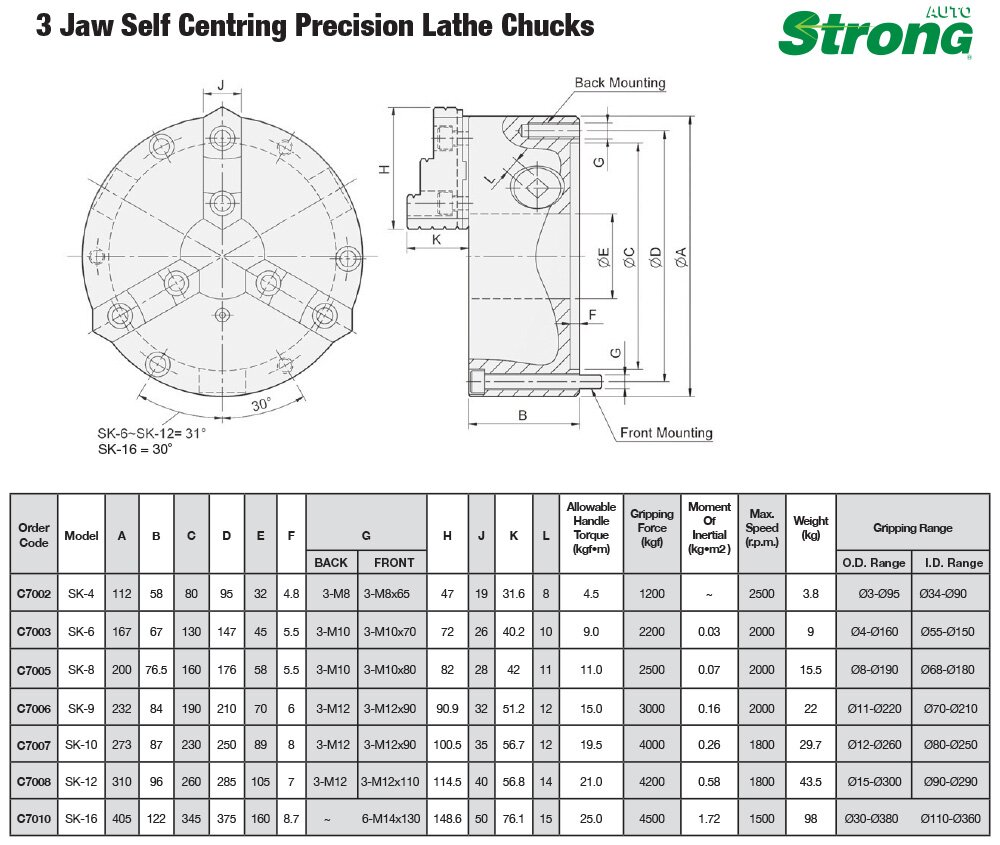

Specifications
- Compare 7 Products
- ORDER CODE
- Model
- Chuck Sizemm
- Bore / Through Hole Sizemm
- Mounting Type
- Gripping Force(kgf)
- Gripping Range ODmm
- Gripping Range IDmm
- Max Speed Ratingrpm
- Nett WeightKg
- C7005
- SK-8
- Ø200
- Ø58
- Back Plate
- 2500
- Ø8 - 190
- Ø68 - 180
- 2000
- 16
- C7006
- SK-9
- Ø232
- Ø70
- Back Plate
- 3000
- Ø11 - 220
- Ø70 - 210
- 2000
- 24
- C7007
- SK-10
- Ø273
- Ø89
- Back Plate
- 4000
- Ø12 - 260
- Ø80 - 250
- 1800
- 32
- C7008
- SK-12
- Ø310
- Ø105
- Back Plate
- 4200
- Ø15 - 300
- Ø90 - 290
- 1800
- 46
- C7010
- SK-16
- Ø405
- Ø160
- Back Plate
- 4500
- Ø30 - 380
- Ø110 - 360
- 1500
- 100
- C7002
- SK-4
- Ø112
- Ø32
- Back Plate
- 1200
- Ø3 - 95
- Ø34 - 90
- 2500
- 3.8
- C7003
- SK-6
- Ø167
- Ø45
- Back Plate
- 2200
- Ø4 - 160
- Ø55 - 150
- 2000
- 9
| ORDER CODE | SK-8 |
|---|---|
| Model | Ø200 |
| Chuck Sizemm | Ø58 |
| Bore / Through Hole Sizemm | Back Plate |
| Mounting Type | 2500 |
| Gripping Force(kgf) | Ø8 - 190 |
| Gripping Range ODmm | Ø68 - 180 |
| Gripping Range IDmm | 2000 |
| Max Speed Ratingrpm | 16 |
| Nett WeightKg |
