| Code | C230 |
|---|---|
| Model | K72-100 |
| Capacity | Ø100mm |
| Weight (kg) | 3.3 |
| Weight (m3) | 0.003 |
| Weight (Freight) | 3.3 |
| Dimensions (cm) | 15 x 15 x 15 |

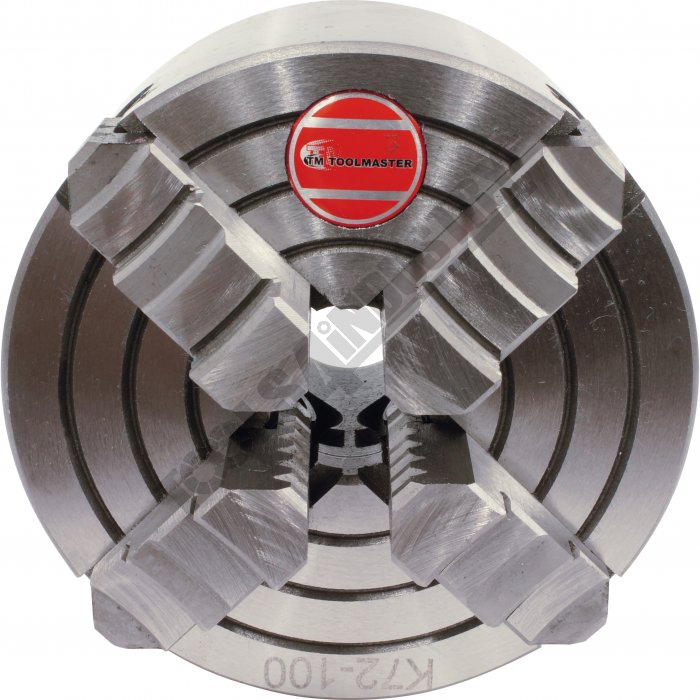

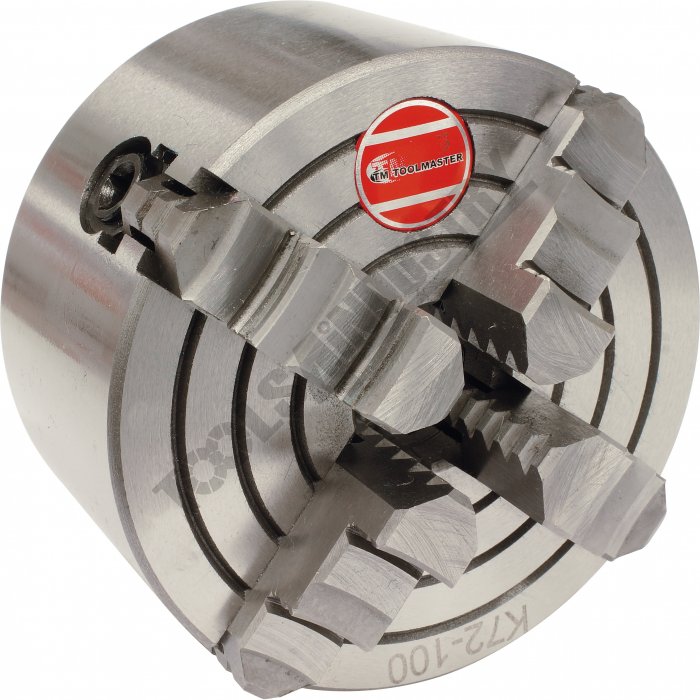

4 Jaw Independent Lathe Chuck K72-100 Ø100mm
Description
Manufactured from High Strength semi steel and precision machinedJaws are case-hardened to minimise wear
Operating screws are made from alloy steel and case-hardened
Features

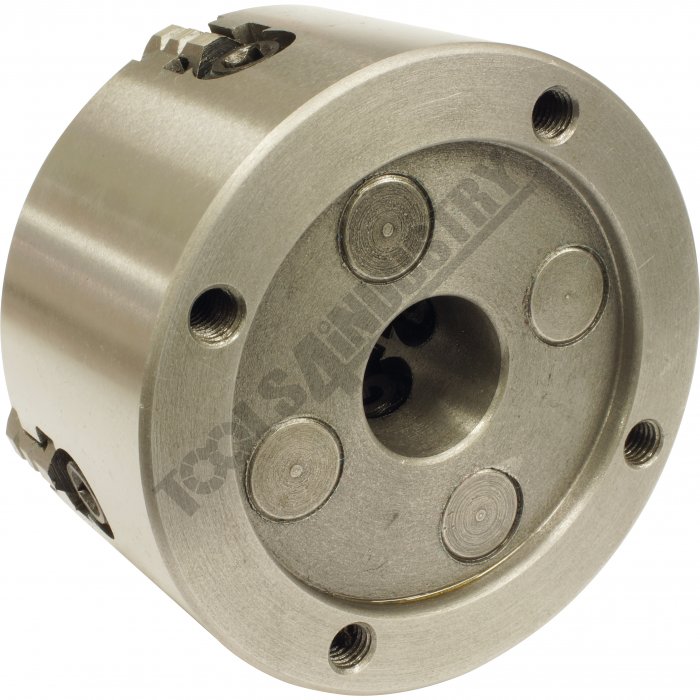

- Rear Mounting
Specifications
- Compare 12 Products
- ORDER CODE
- Chuck Size
- External Jaw Rangemm
- Internal Jaw Rangemm
- Speedrpm
- D1mm
- D2mm
- D3mm
- H1mm
- hmm
- z-dmm
- Nett Weightkg
- C230
- Ø100
- 40 - 100
- 6 - 45
- 3500
- 72
- 84
- 25
- 54
- 4
- 4 - M8
- 3.2
- L6875
- Ø100
- ~
- ~
- 3500
- ~
- ~
- ~
- ~
- ~
- ~
- 3.5
- C232
- Ø125
- 48 - 125
- 7 - 57
- 3000
- 95
- 108
- 30
- 56
- 4.5
- 4 - M8
- 5.1
- L151
- Ø125
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- 6.9
- C250
- Ø160
- 50 - 160
- 8 - 80
- 2500
- 65
- 95
- 55
- 65
- 5
- 4 - M10
- 9.2
- C251
- Ø200
- 130 - 200
- 4 - 90
- 2000
- 80
- 112
- 70
- 71
- 6
- 4 - M10
- 15
- C255
- Ø250
- 160 - 250
- 5 - 118
- 1600
- 110
- 130
- 100
- 80
- 6
- 4 - M12
- 23
- C257
- Ø320
- 100 - 315
- 20 - 170
- 1200
- 140
- 165
- 115
- 100
- 16
- 4 - M16
- 40
- C258
- Ø400
- 118 - 400
- 25 - 250
- 1000
- 160
- 185
- 125
- 100
- 8
- 4 - M16
- 55
- C259
- Ø500
- 125 - 500
- 35 - 300
- 800
- 200
- 236
- 170
- 106
- 8
- 4 - M20
- 102
- C259A
- Ø630
- 160 - 630
- 50 - 400
- 600
- 220
- 258
- 180
- 118
- 10
- 4 - M20
- 159
- L6855
- Ø80
- ~
- ~
- 4800
- ~
- ~
- ~
- ~
- ~
- ~
- 2.0
| ORDER CODE | Ø100 |
|---|---|
| Chuck Size | 40 - 100 |
| External Jaw Rangemm | 6 - 45 |
| Internal Jaw Rangemm | 3500 |
| Speedrpm | 72 |
| D1mm | 84 |
| D2mm | 25 |
| D3mm | 54 |
| H1mm | 4 |
| hmm | 4 - M8 |
| z-dmm | 3.2 |
| Nett Weightkg |
