| Code | C0625 |
|---|---|
| Weight (kg) | 0.084 |
| Weight (m3) | 0.001 |
| Weight (Freight) | 0.333 |
| Dimensions (cm) | 17.3 x 10.2 x 6.2 |

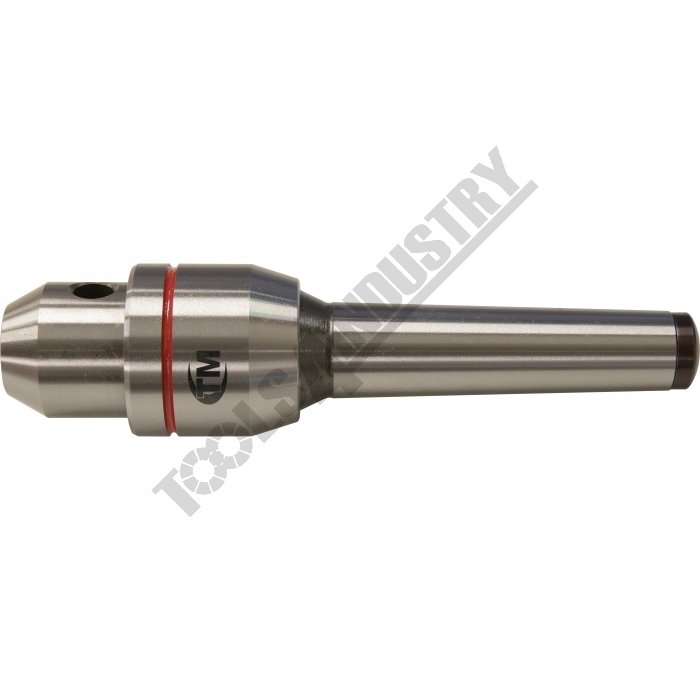

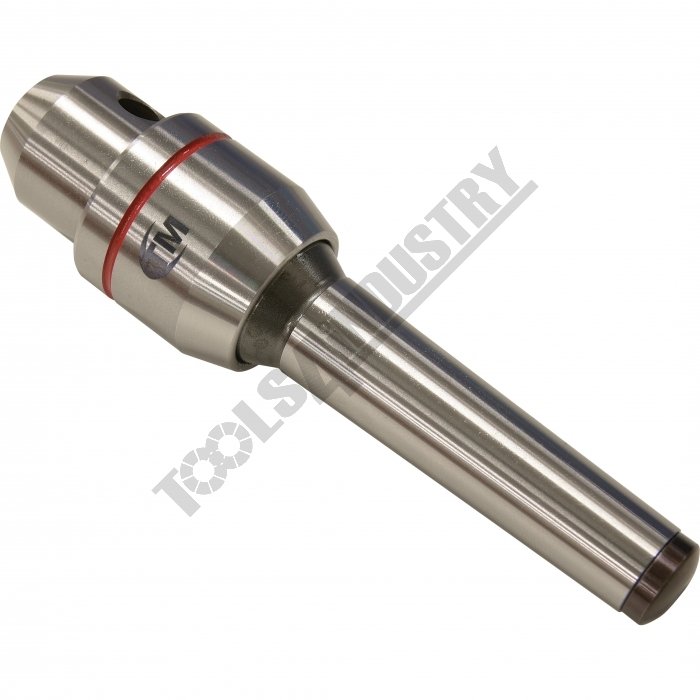

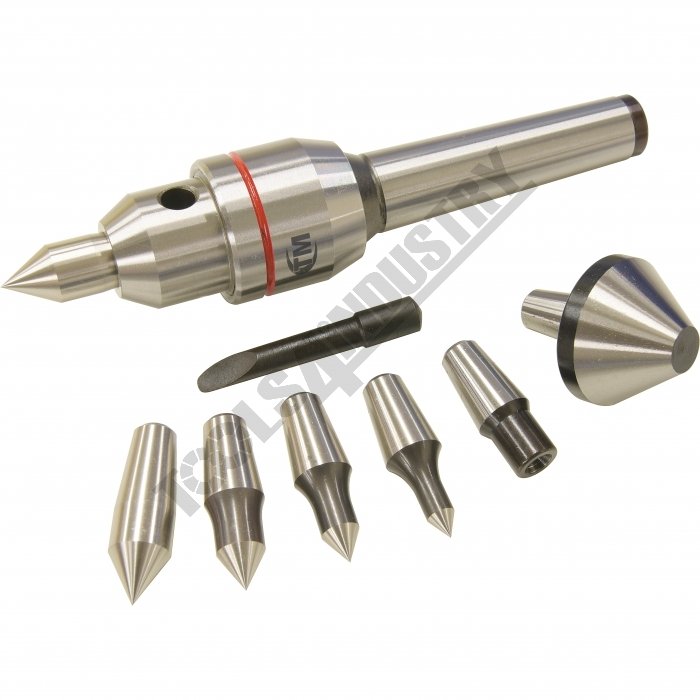

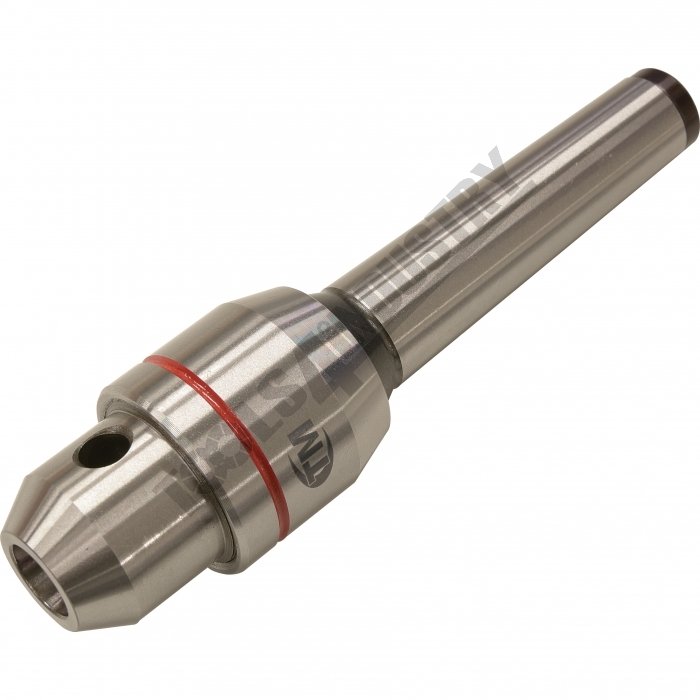

2MT Live Centre Set - Interchangeable Centring Tips
Description
Toolmaster live centre sets are fitted with needle thrust and ball bearings suitable for medium to high speed lathes with heavy loads. The shaft is made from alloy steel heat treated to HRC 60° providing high rigidity and high durability.Features

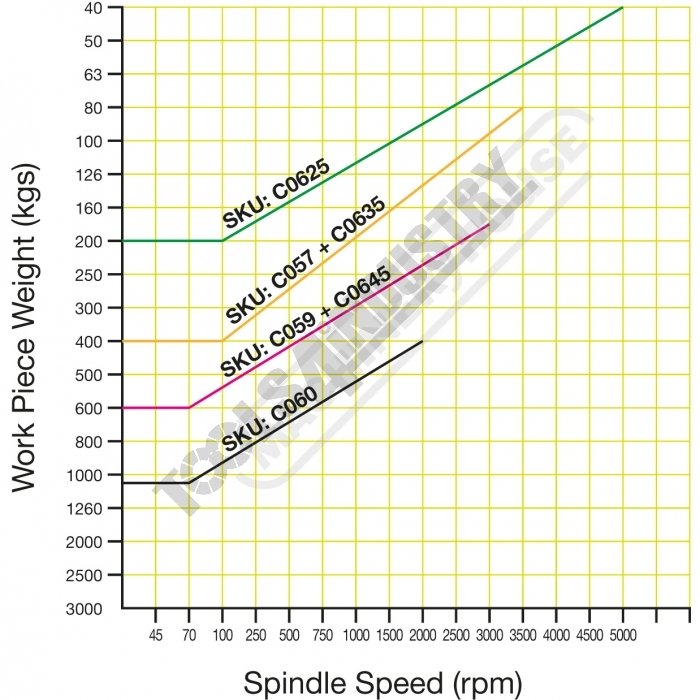

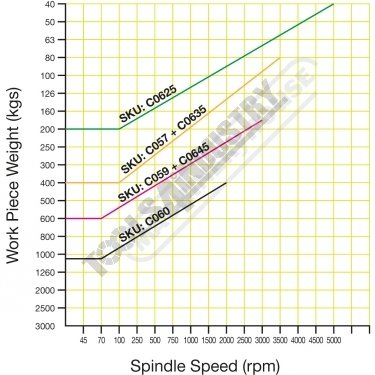

- Maximum Speed: 5000rpm @ 40kg
- Maximum Load: 200kg @ 100rpm
- Hardened to HRC 60°
- Made from alloy steel
- Assembled with thrust, needle & ball bearings
- 7 x interchangeable centre tips

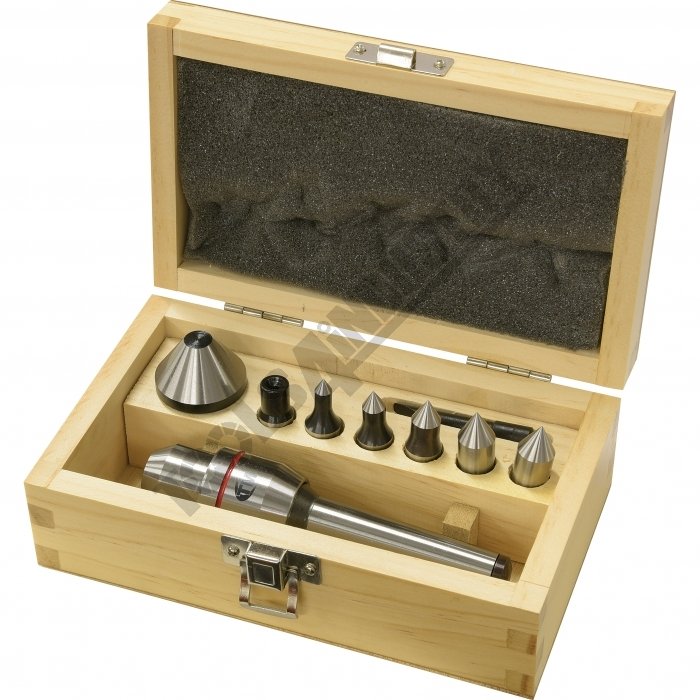

Includes

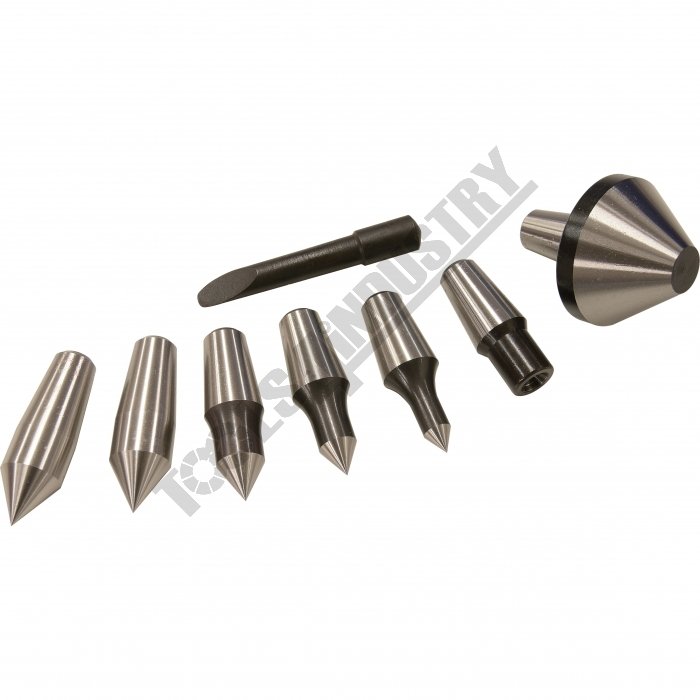

- Interchangeable centre tips:
- 2 x Standard - Ø12.6mm
- 1 x Extended point - Ø6mm
- 1 x Extended point - Ø8mm
- 1 x Extended point - Ø10mm
- 1 x Female cone - Ø6mm
- 1 x Pipe - Ø11 ~ Ø32mm
Specifications
- Compare 3 Products
- ORDER CODE
- TaperMT
- Maximum Speedrpm
- Maximum Load Capacitykg

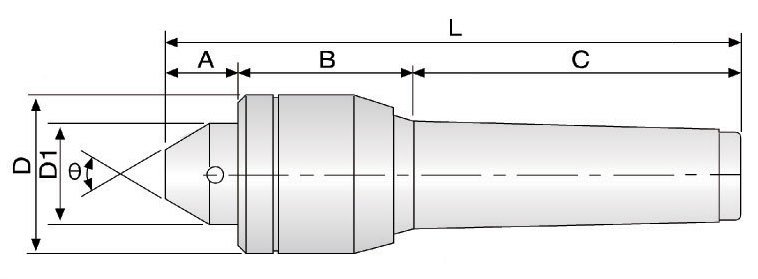

- θ Angle
- A
- B
- C
- D
- D1
- L
- Nett Weightkg
| ORDER CODE | 2MT |
|---|---|
| TaperMT | 5000 |
| Maximum Speedrpm | 200 |
| Maximum Load Capacitykg | 60 |
| θ Angle | 22 |
| A | 36 |
| B | 69 |
| C | 32 |
| D | 25 |
| D1 | 127 |
| L | 0.9 |
| Nett Weightkg |
