Code	C0077
Model	RFC-1030
Capacity	100mm Throat Depth, 300mm Clamping Capacity
Weight (kg)	1.35
Weight (m³)	0.003
Weight (Freight)	1.35
Dimensions (cm)	41.2 x 16.5 x 3.8

Product Brochure

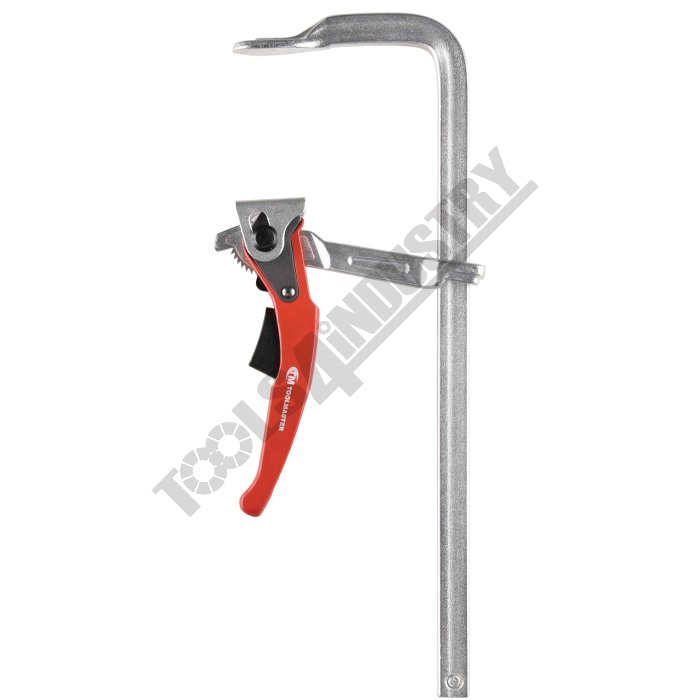

Forged Steel Ratchet F-Clamp RFC-1030 100mm Throat Depth, 300mm Clamping Capacity

Description

Featuring drop forged steel construction for superior strength & rigidity making them virtually unbreakable along with a quick action ratchet clamping handle making them fast & easy to use. Manufactured with precision controlled hardening and tempering processes over the whole clamp body giving strength for high clamping force along with chrome plating treatment for high corrosion resistance.

Specifications

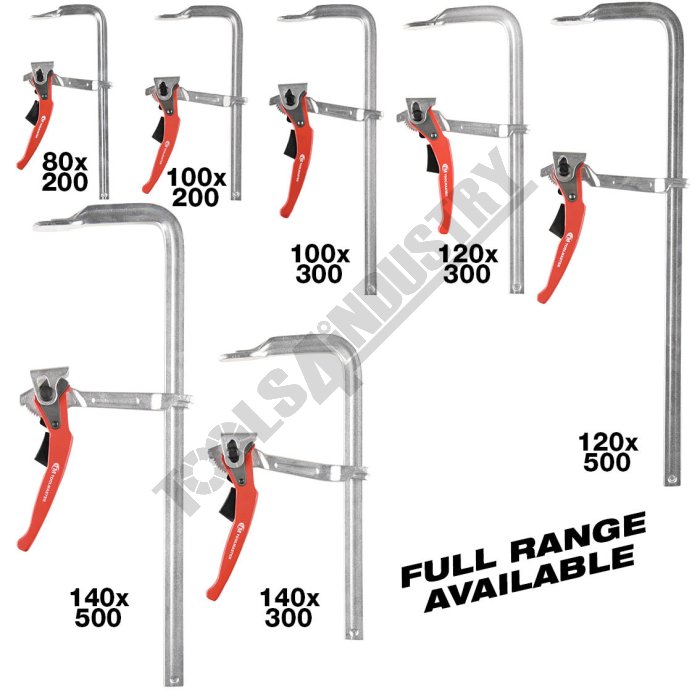

Compare 22 Products
ORDER CODE
MODEL
Type
Clamping Capacity
Locking Handle - Pivot Movement
Clamp Bar - Pivot Movement
Plunger Travelmm
Throat Depthmm
Openingmm
Size
Quantity Per PackNo.
Clamping Forcekg
Over all Lengthmm
Nett Weightkg

C0077
RFC-1030
Ratchet F Clamp
300mm
~
~
~
100mm
300mm
9.5 x 19.5
~
280kg
~
1.35

C0084
RFC-1250
Ratchet F Clamp
500mm
~
~
~
120mm
500mm
10.6 x 22
~
300kg
~
1.9

C0092
RFC-1430
Ratchet F Clamp
300mm
~
~
~
140mm
300mm
11.9 x 25.4
~
510kg
~
2.32

C0094
RFC-1450
Ratchet F Clamp
500mm
~
~
~
140mm
500mm
11.9 x 25.4
~
510kg
~
2.76

W112
MWC-4
Micro Steel Clamp Set
0 - 7mm
~
~
~
~
~
~
4
~
~
~

W113
BWC-4
Butt Welding Clamp Set
0 - 3mm
~
~
~
16
~
16 x 30mm Clamp Area
~
Finger Thumb Lock
~
0.38

C1001
KL-102B
Vertical Toggle Clamp
65º
90º
~
~
~
~
1
100kg
~
0.36

C100
KL-12130
Vertical Toggle Clamp
65º
100º
~
~
~
~
1
227kg
~
0.36

C0999
MP-12265
Vertical Toggle Clamp
58º
105º
~
~
~
~
1
340kg
~
0.7

C0998
MP-10247
Vertical Toggle Clamp
70º
135º
~
~
~
~
1
450kg
~
1.25

C1003
KL-201C
Horizontal Toggle Clamp
87º
79º
~
~
~
~
1
100kg
~
0.36

C1005
KL-225D
Horizontal Toggle Clamp
65º
90º
~
~
~
~
1
250kg
~
0.36

C1006
MP-20235
Horizontal Toggle Clamp
50º
85º
~
~
~
~
1
340kg
~
0.6

C1008
KL-36020
Straight Line Toggle Clamp
144.5º
~
29.3
~
~
~
1
220kg
~
0.36

C1011
MP-36224M
Straight Line Toggle Clamp
180º
~
67
~
~
~
1
690kg
~
0.7

C1009
MP-303-EM
Straight Line Toggle Clamp
190º
~
50
~
~
~
1
450kg
~
1.0

C1010
MP-304-HM
Straight Line Toggle Clamp
190º
~
62
~
~
~
1
680kg
~
1.5

C0025
FC-1020
T-Bar Handle
200mm
~
~
~
100mm
200mm
9.5 x 19.5
~
340kg
~
1

C0027
FC-1030
T-Bar Handle
300mm
~
~
~
100mm
300mm
9.5 x 19.5
~
340kg
~
1.13

C0034
FC-1250
T-Bar Handle
500mm
~
~
~
120mm
500mm
10.6 x 22
~
370kg
~
1.69

C0054
FC-1450
T-Bar Handle
500mm
~
~
~
140mm
500mm
11.9 x 25.4
~
610kg
~
2.37

C0075
RFC-1020
Ratchet F Clamp
200mm
~
~
~
100mm
200mm
9.5 x 19.5
~
280kg
~
1.22

ORDER CODE	RFC-1030
MODEL	Ratchet F Clamp
Type	300mm
Clamping Capacity	~
Locking Handle - Pivot Movement	~
Clamp Bar - Pivot Movement	~
Plunger Travelmm	100mm
Throat Depthmm	300mm
Openingmm	9.5 x 19.5
Size	~
Quantity Per PackNo.	280kg
Clamping Forcekg	~
Over all Lengthmm	1.35
Nett Weightkg
