Code	A8051
Capacity	1220 x 100mm (48" x 4")
Weight (kg)	1.8
Weight (m³)	0.001
Weight (Freight)	1.8
Dimensions (cm)	40 x 7 x 5

Product Brochure

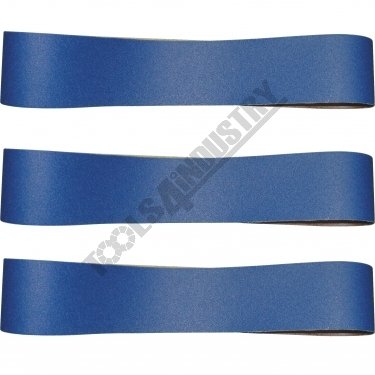

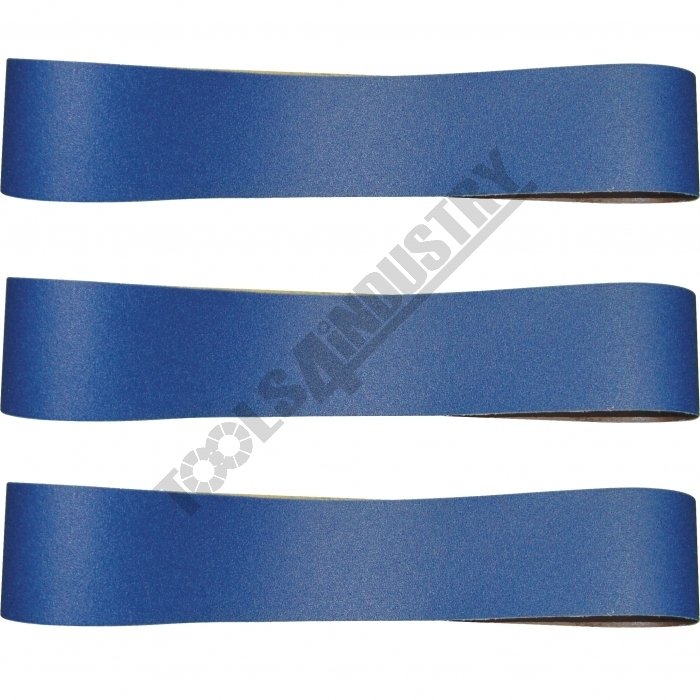

40G Zirconia Linishing Belt Pack 1220 x 100mm (48" x 4")

Description

Alumina Zirconia
This premium material is extremely durable on metal, fibreglass, and hard woods. It is ideal for planing rough sawn lumber or roughing out shapes.

Features

Interlocking belt joint configuration for smoother running
Can be run in either direction

Specifications

Compare 89 Products
ORDER CODE
MODEL
Belt Sizemm / inch
Belt GritG
Scotchbelt Type
Pack QuantityNo.

A8051
Zirconia
1220 x 100 / 48 x 4
40
~
3

A8045
Aluminium Oxide
1220 x 100 / 48 x 4
60
~
3

A8052
Zirconia
1220 x 100 / 48 x 4
60
~
3

A8046
Aluminium Oxide
1220 x 100 / 48 x 4
80
~
3

A8053
Zirconia
1220 x 100 / 48 x 4
80
~
3

A8047
Aluminium Oxide
1220 x 100 / 48 x 4
100
~
3

A8054
Zirconia
1220 x 100 / 48 x 4
100
~
3

A8048
Aluminium Oxide
1220 x 100 / 48 x 4
120
~
3

A8055
Zirconia
1220 x 100 / 48 x 4
120
~
3

A8058
Aluminium Oxide
1220 x 150 / 48 x 6
40
~
3

A8059
Aluminium Oxide
1220 x 150 / 48 x 6
60
~
3

A8060
Aluminium Oxide
1220 x 150 / 48 x 6
80
~
3

A8061
Aluminium Oxide
1220 x 150 / 48 x 6
100
~
3

A8062
Aluminium Oxide
1220 x 150 / 48 x 6
120
~
3

A8065
Aluminium Oxide
1500 x 100 / 59 x 4
40
~
3

A8066
Aluminium Oxide
1500 x 100 / 59 x 4
60
~
3

A8067
Aluminium Oxide
1500 x 100 / 59 x 4
80
~
3

A8068
Aluminium Oxide
1500 x 100 / 59 x 4
100
~
3

A8069
Aluminium Oxide
1500 x 100 / 59 x 4
120
~
3

A8072
Zirconia
1500 x 100 / 59 x 4
40
~
3

A8073
Zirconia
1500 x 100 / 59 x 4
60
~
3

A8074
Zirconia
1500 x 100 / 59 x 4
80
~
3

A8075
Zirconia
1500 x 100 / 59 x 4
100
~
3

A8076
Zirconia
1500 x 100 / 59 x 4
120
~
3

A60408
Aluminium Oxide
1524 x 100 / 60 x 4
80
~
1

A60408Z
Zirconia
1524 x 100 / 60 x 4
80
~
1

A60410
Aluminium Oxide
1524 x 100 / 60 x 4
100
~
1

A8079
Zirconia
2000 x 75 / 79 x 3
40
~
3

A8080
Zirconia
2000 x 75 / 79 x 3
60
~
3

A8081
Zirconia
2000 x 75 / 79 x 3
80
~
3

A8082
Zirconia
2000 x 75 / 79 x 3
100
~
3

A8083
Zirconia
2000 x 75 / 79 x 3
120
~
3

A8085
Zirconia
2000 x 100 / 79 x 4
36
~
3

A8090
Zirconia
2000 x 150 / 79 x 6
40
~
3

A8091
Zirconia
2000 x 150 / 79 x 6
60
~
3

A8092
Zirconia
2000 x 150 / 79 x 6
80
~
3

A8093
Zirconia
2000 x 150 / 79 x 6
100
~
3

A90604
Aluminium Oxide
2260 x 150 / 89 x 6
40
~
1

A90606
Aluminium Oxide
2260 x 150 / 89 x 6
60
~
1

A90608
Aluminium Oxide
2260 x 150 / 89 x 6
80
~
1

A90610
Aluminium Oxide
2260 x 150 / 89 x 6
100
~
1

A90612
Aluminium Oxide
2260 x 150 / 89 x 6
120
~
1

A99606
Aluminium Oxide
2515 x 150 / 99 x 6
60
~
1

A99608
Aluminium Oxide
2515 x 150 / 99 x 6
80
~
1

A99610
Aluminium Oxide
2515 x 150 / 99 x 6
100
~
1

A99612
Aluminium Oxide
2515 x 150 / 99 x 6
120
~
1

A36203
Scotchbelt
915 x 50 / 36 x 2
~
Super Fine (Grey)
1

A36202
Scotchbelt
915 x 50 / 36 x 2
~
Fine (Blue)
1

A36201
Scotchbelt
915 x 50 / 36 x 2
~
Medium (Red)
1

A36200
Scotchbelt
915 x 50 / 36 x 2
~
Coarse (Brown)
1

A8000
Aluminium Oxide
915 x 50 / 36 x 2
40
~
3

A8009
Zirconia
915 x 50 / 36 x 2
40
~
3

A8001
Aluminium Oxide
915 x 50 / 36 x 2
60
~
3

A8010
Zirconia
915 x 50 / 36 x 2
60
~
3

A8002
Aluminium Oxide
915 x 50 / 36 x 2
80
~
3

A8011
Zirconia
915 x 50 / 36 x 2
80
~
3

A8003
Aluminium Oxide
915 x 50 / 36 x 2
100
~
3

A8012
Zirconia
915 x 50 / 36 x 2
100
~
3

A8004
Aluminium Oxide
915 x 50 / 36 x 2
120
~
3

A8013
Zirconia
915 x 50 / 36 x 2
120
~
3

A8005
Aluminium Oxide
915 x 50 / 36 x 2
240
~
3

A8006
Aluminium Oxide
915 x 50 / 36 x 2
400
~
3

A8016
Aluminium Oxide
915 x 100 / 36 x 4
40
~
3

A8023
Zirconia
915 x 100 / 36 x 4
40
~
3

A8017
Aluminium Oxide
915 x 100 / 36 x 4
60
~
3

A8024
Zirconia
915 x 100 / 36 x 4
60
~
3

A8018
Aluminium Oxide
915 x 100 / 36 x 4
80
~
3

A8025
Zirconia
915 x 100 / 36 x 4
80
~
3

A8019
Aluminium Oxide
915 x 100 / 36 x 4
100
~
3

A8026
Zirconia
915 x 100 / 36 x 4
100
~
3

A8020
Aluminium Oxide
915 x 100 / 36 x 4
120
~
3

A8027
Zirconia
915 x 100 / 36 x 4
120
~
3

A48203
Scotchbelt
1220 x 50 / 48 x 2
~
Super Fine (Grey)
1

A48202
Scotchbelt
1220 x 50 / 48 x 2
~
Fine (Blue)
1

A48201
Scotchbelt
1220 x 50 / 48 x 2
~
Medium (Red)
1

A48200
Scotchbelt
1220 x 50 / 48 x 2
~
Coarse (Brown)
1

A8030
Aluminium Oxide
1220 x 50 / 48 x 2
40
~
3

A8037
Zirconia
1220 x 50 / 48 x 2
40
~
3

A8031
Aluminium Oxide
1220 x 50 / 48 x 2
60
~
3

A8038
Zirconia
1220 x 50 / 48 x 2
60
~
3

A8032
Aluminium Oxide
1220 x 50 / 48 x 2
80
~
3

A8039
Zirconia
1220 x 50 / 48 x 2
80
~
3

A8033
Aluminium Oxide
1220 x 50 / 48 x 2
100
~
3

A8040
Zirconia
1220 x 50 / 48 x 2
100
~
3

A8034
Aluminium Oxide
1220 x 50 / 48 x 2
120
~
3

A8041
Zirconia
1220 x 50 / 48 x 2
120
~
3

A48308Z
Zirconia
1220 x 75 / 48 x 3
80
~
1

A48312Z
Zirconia
1220 x 75 / 48 x 3
120
~
1

A8044
Aluminium Oxide
1220 x 100 / 48 x 4
40
~
3

ORDER CODE	Zirconia
MODEL	1220 x 100 / 48 x 4
Belt Sizemm / inch	40
Belt GritG	~
Scotchbelt Type	3
Pack QuantityNo.
