Code A330
Model ROT8A-360
Capacity WLL: 1500Kg
Weight (kg) 300
Weight (m3) 0.398
Weight (Freight) 300
Dimensions (cm) 215 x 74 x 25
METALMASTER
1 Year Warranty

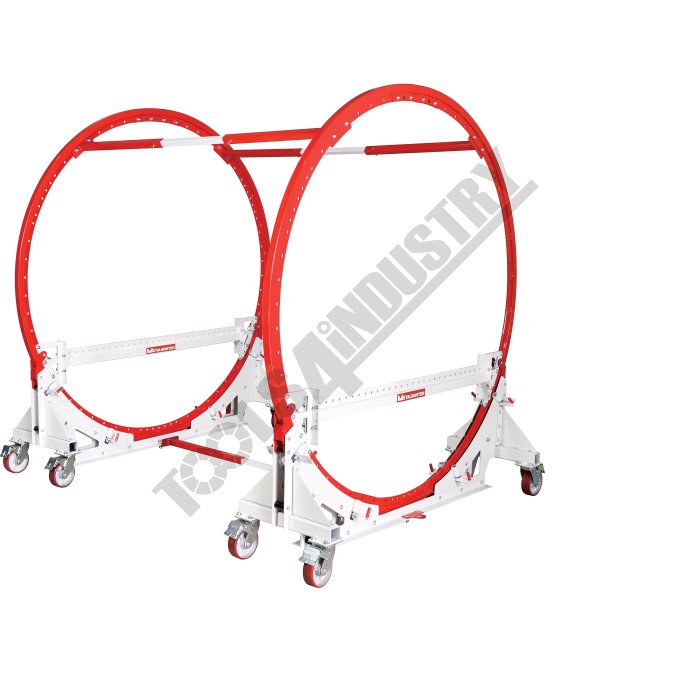

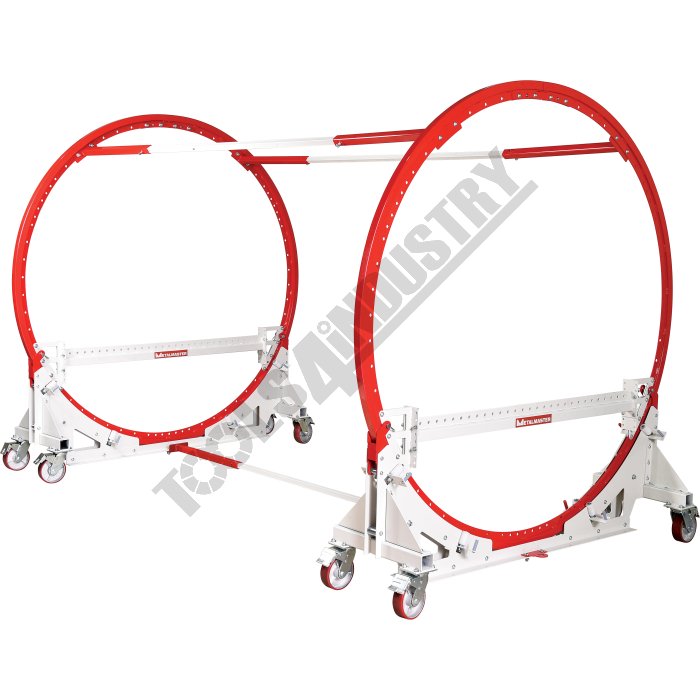

Rotisserie ROT8A-360 WLL: 1500Kg

Description

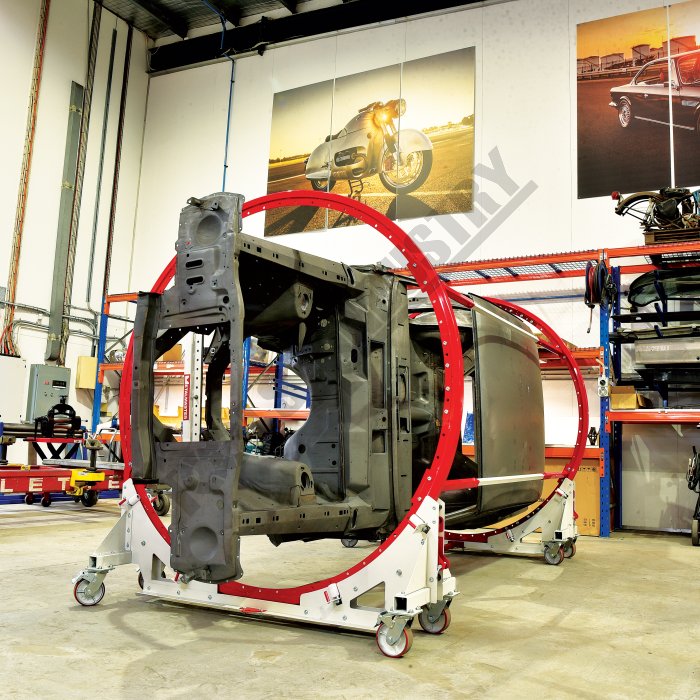

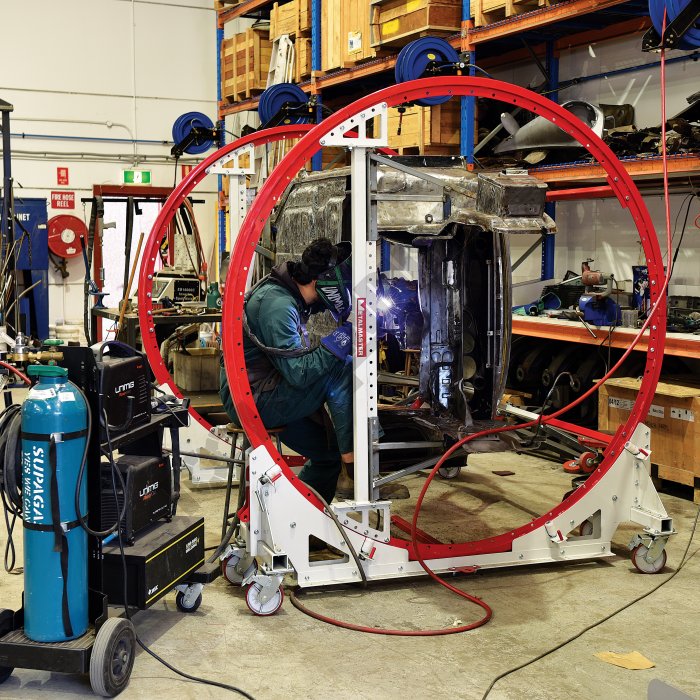

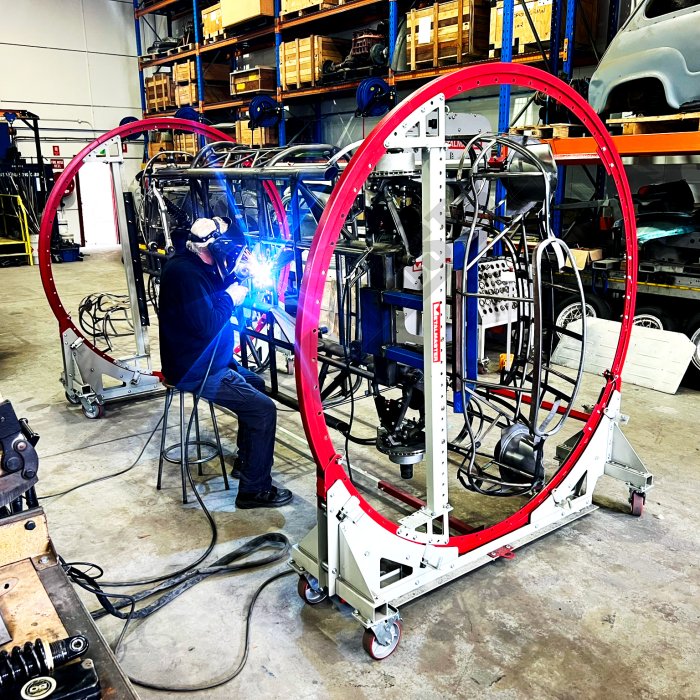

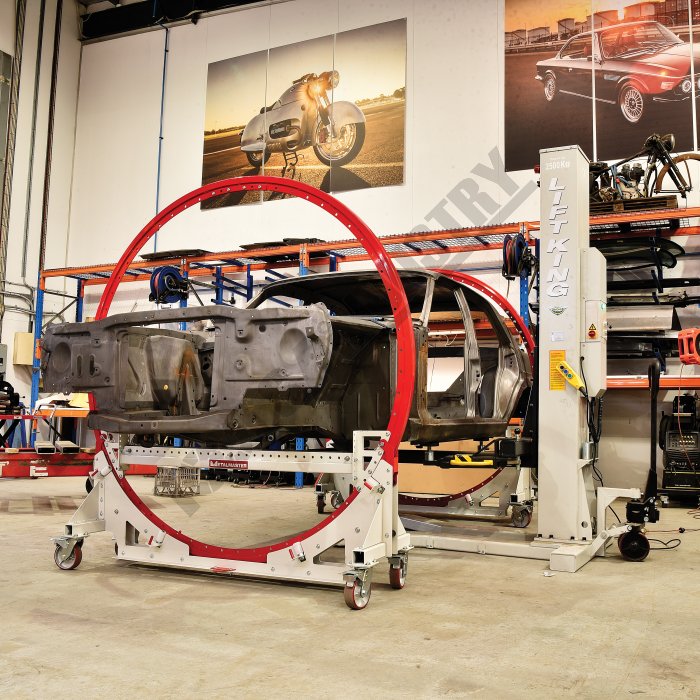

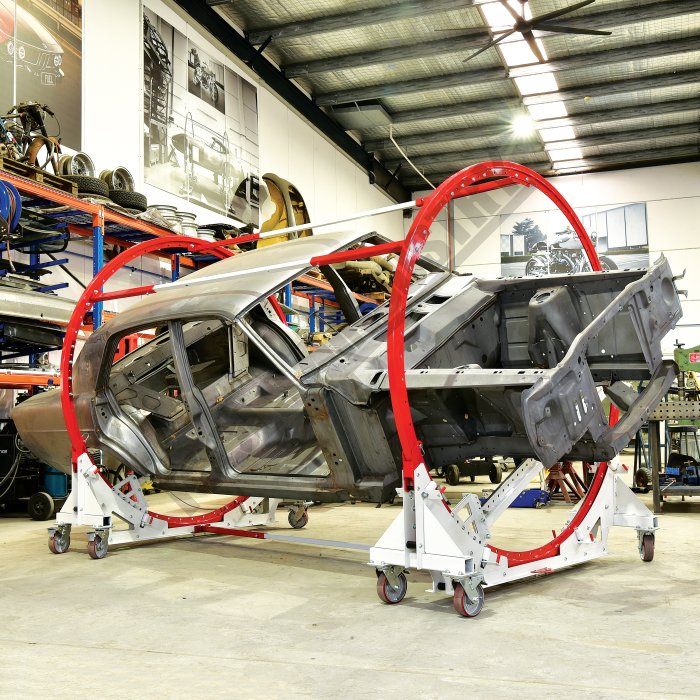

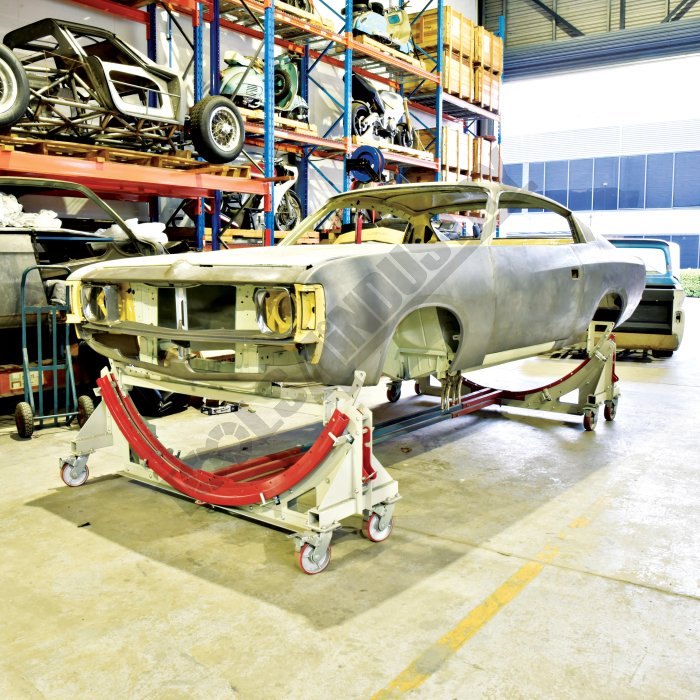

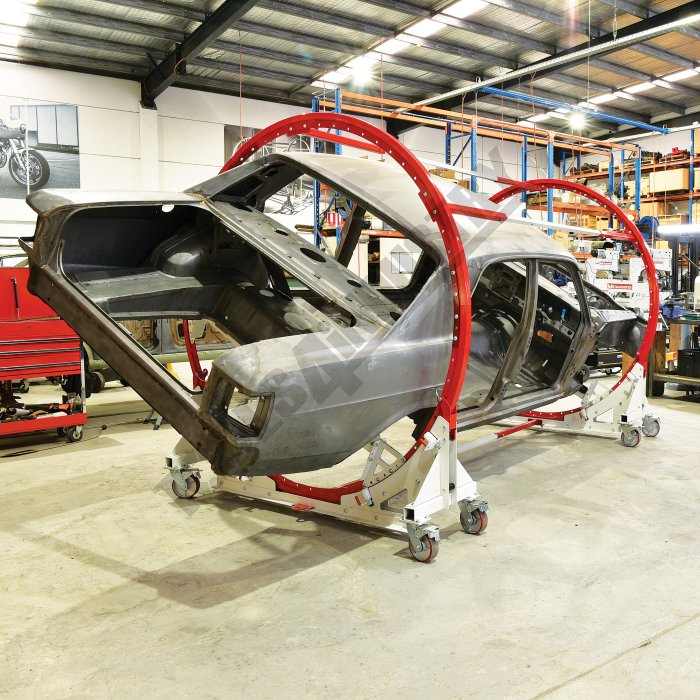

The New Metalmaster ROT8A-360 Rotisserie is a game-changer, in our eyes, it’s the ultimate in automotive body repair. The innovative design allows you to perform all your body repair work and spray painting in one convenient mounting frame. The unique design allows you to not only rotate a full 360 degrees, while providing easy access to all the hard to get at spots of your vehicle, but the brilliance in the modular design is the removable segments giving you the ability to move the whole assembly through a low clearance opening such as domestic garage doors.

The Metalmaster ROT8A-360 with its easy-to-use features make repairs easier and more efficient than ever before. making it a must-have for any car enthusiast or mechanic looking to make their restoration project a success.

Features

  • Designed & developed in Australia with leading automotive craftsmen.

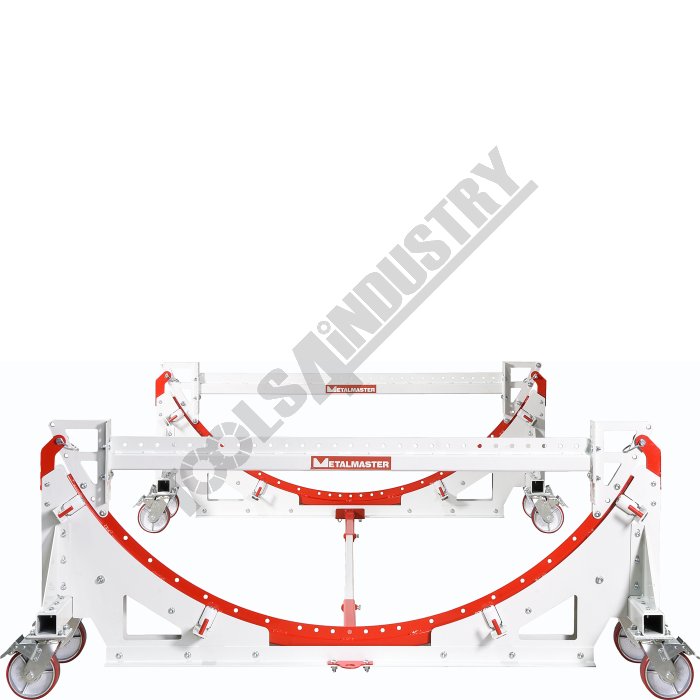

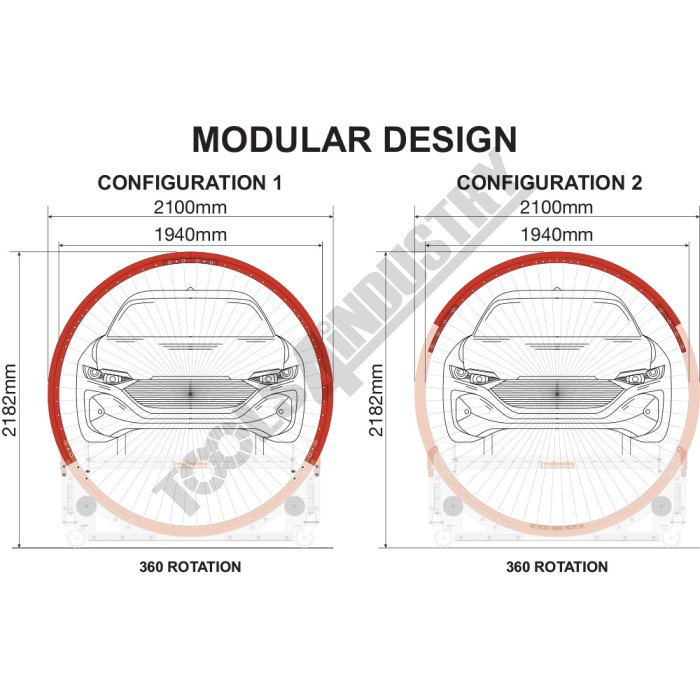

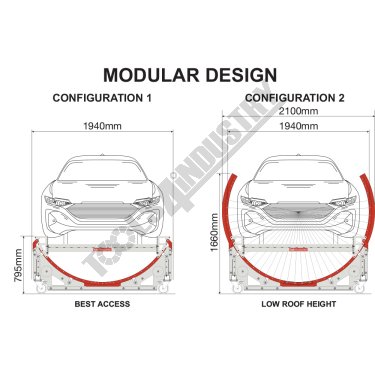

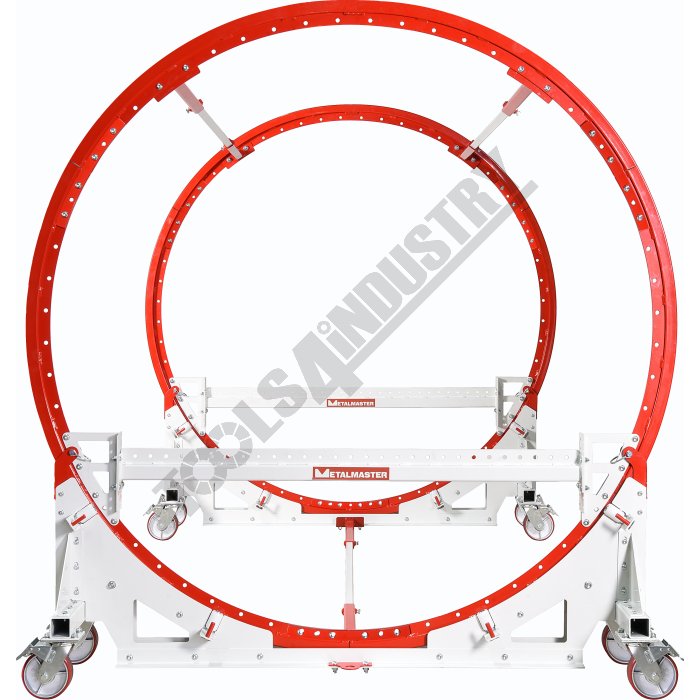

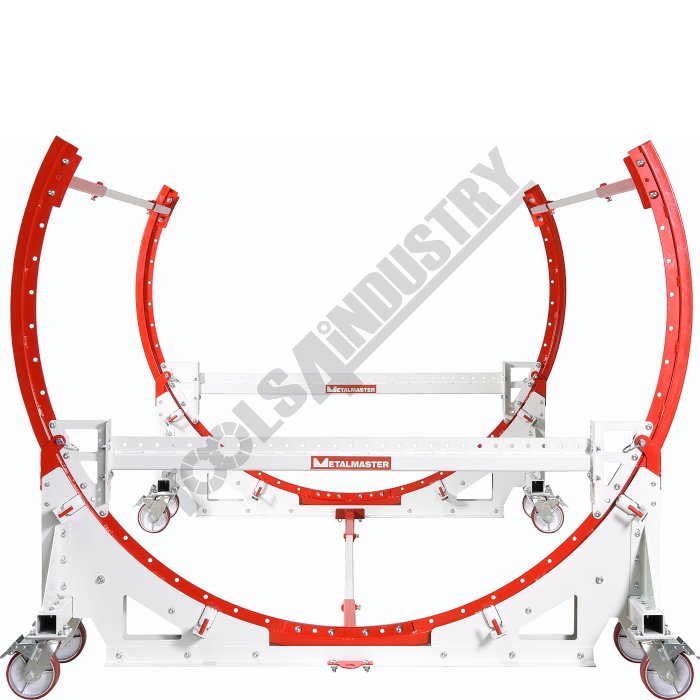

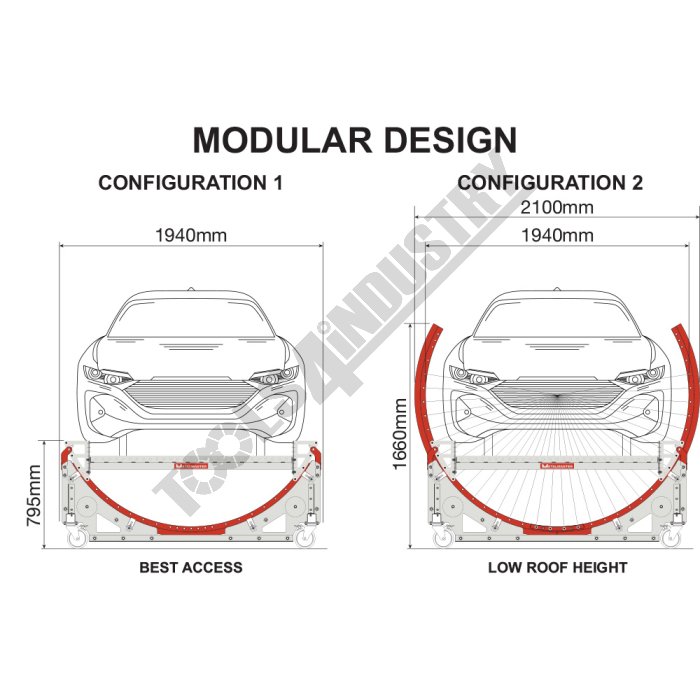

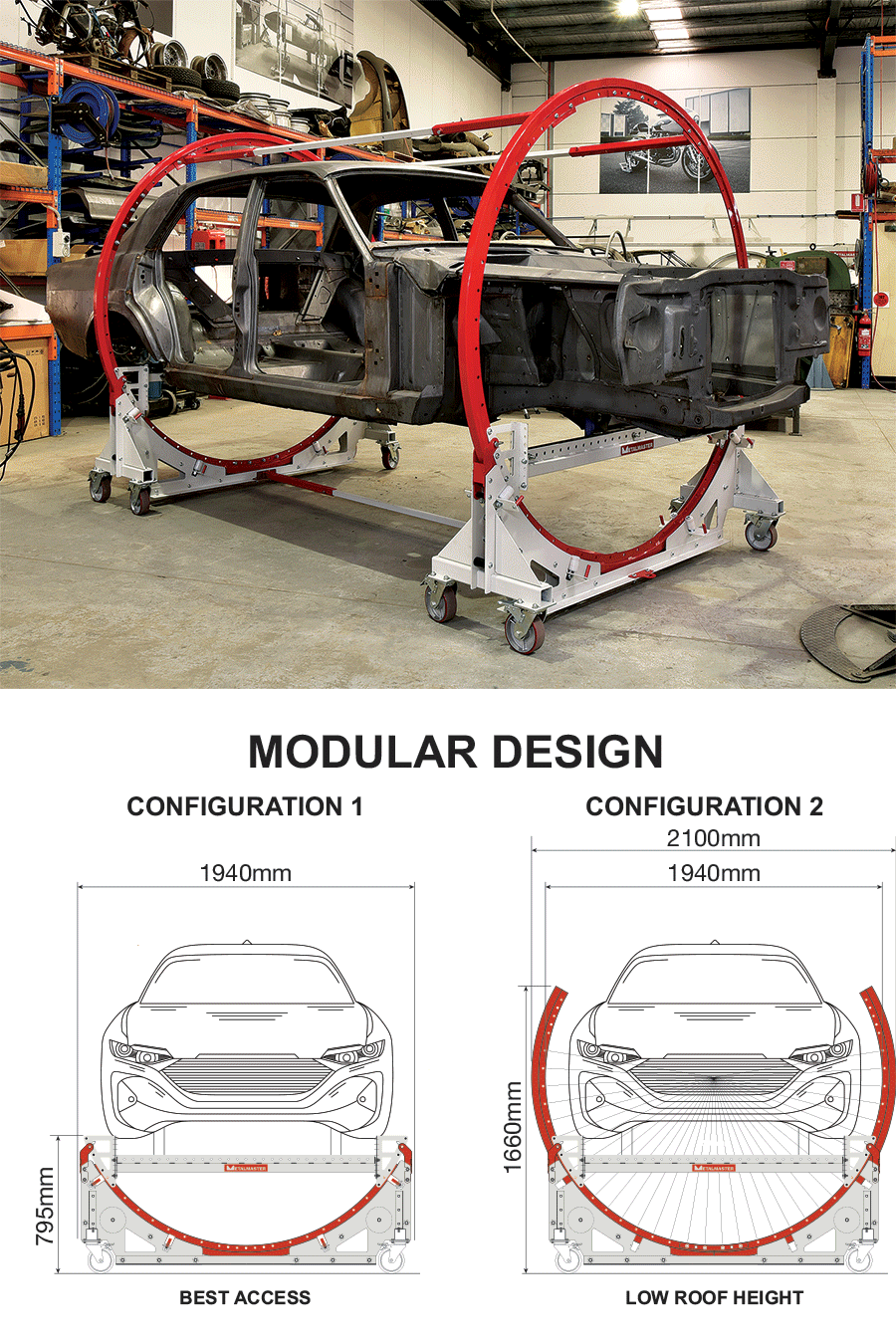

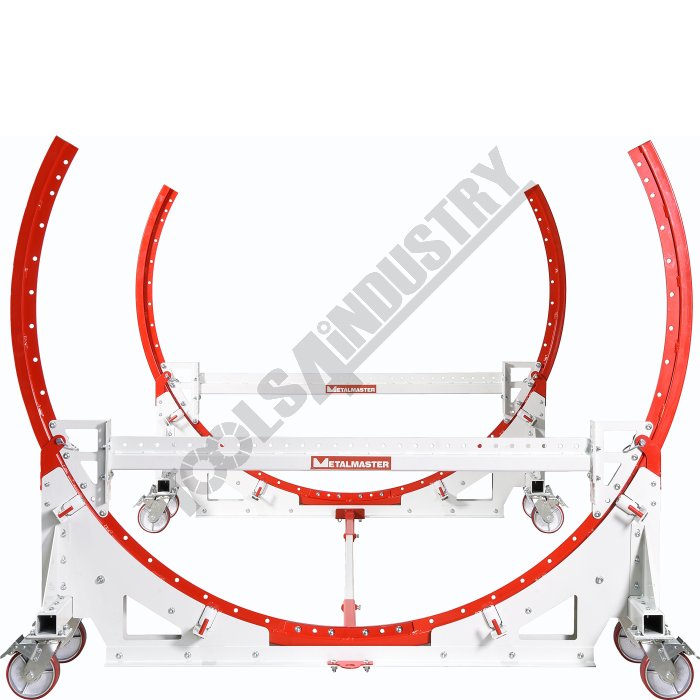

  • Modular design to suit low clearance openings such as most standard garage doors.

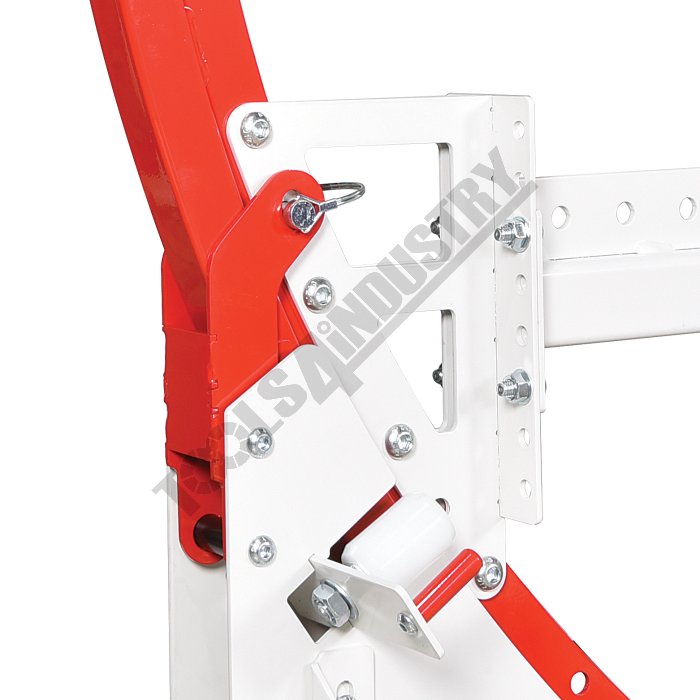

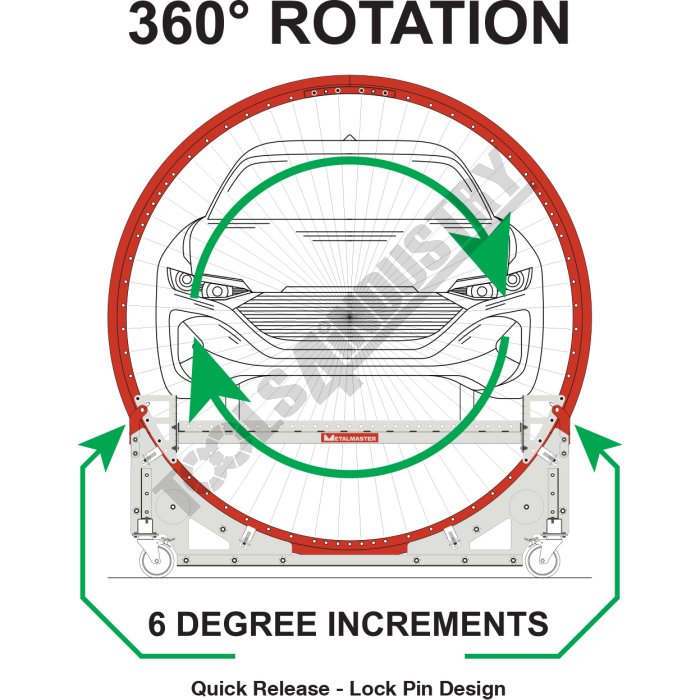

  • Indexable rotation with locking points every 6 degrees of rotation.
  • Space saving design with no overhang past chassis once mounted.

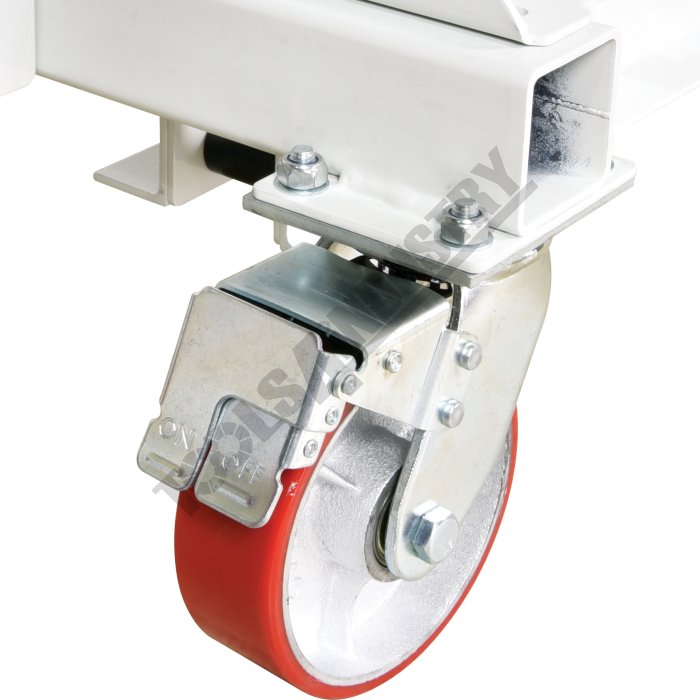

  • Heavy duty Ø150mm castor wheels with brakes for easy movement.

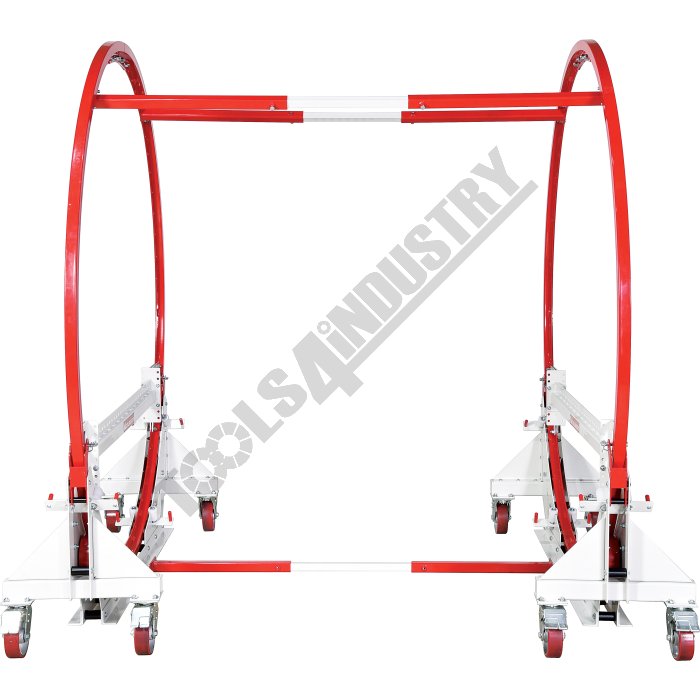

  • Adjustable cross beam to assist with load balancing for easy & safe rotation.
  • Lifting & tie down points for moving / loading & unloading.

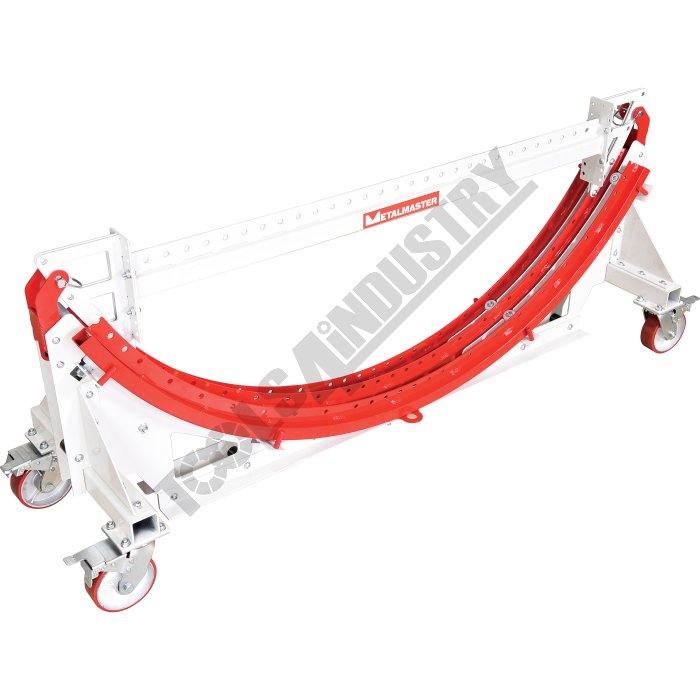

  • Easy pack away design.

Specifications

ORDER CODEA330
MODELROT8A-360

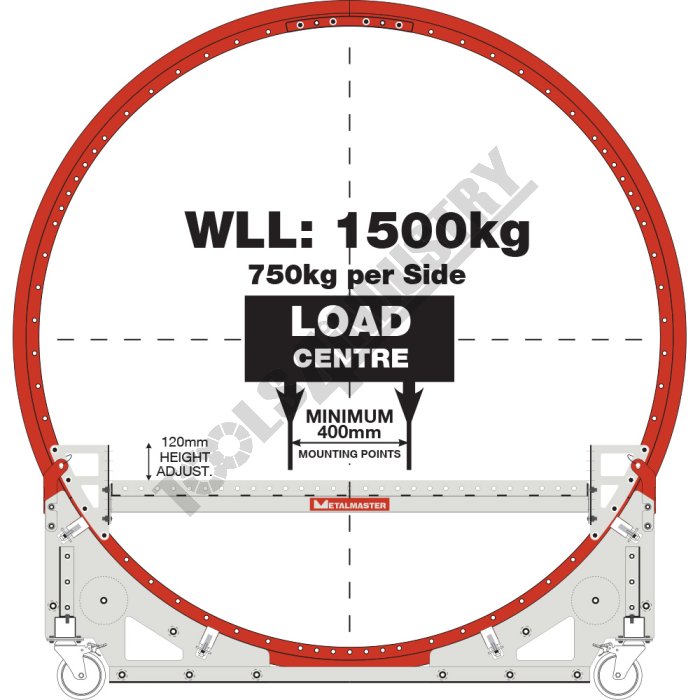

WLL CAPACITYkg1500kg (750kg each Side)

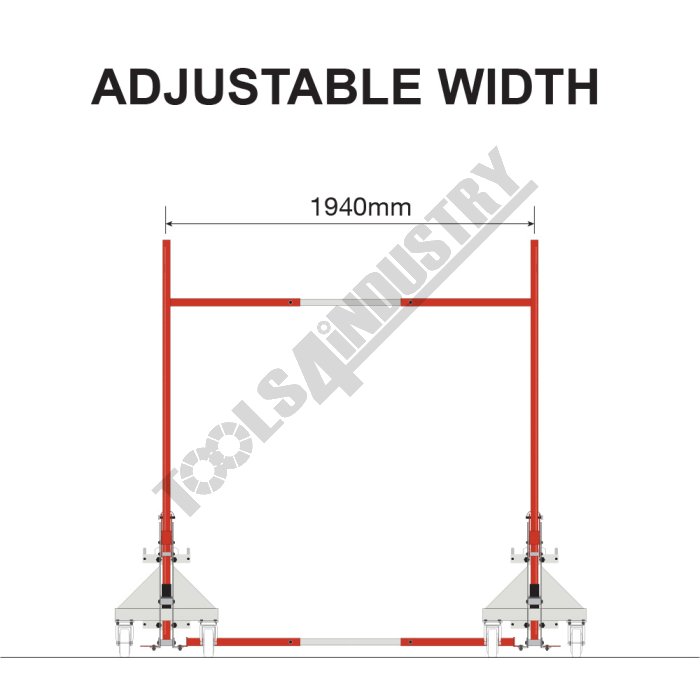

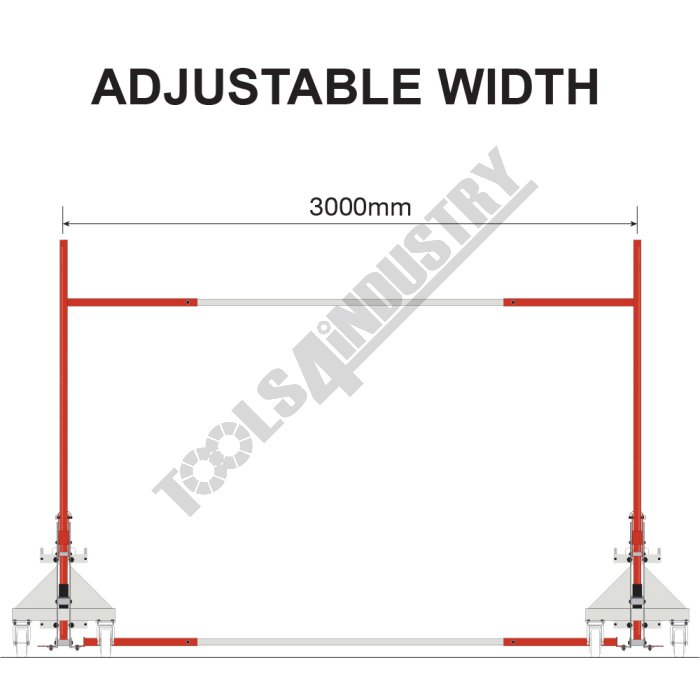

Adjustable Widthmm1940-3000

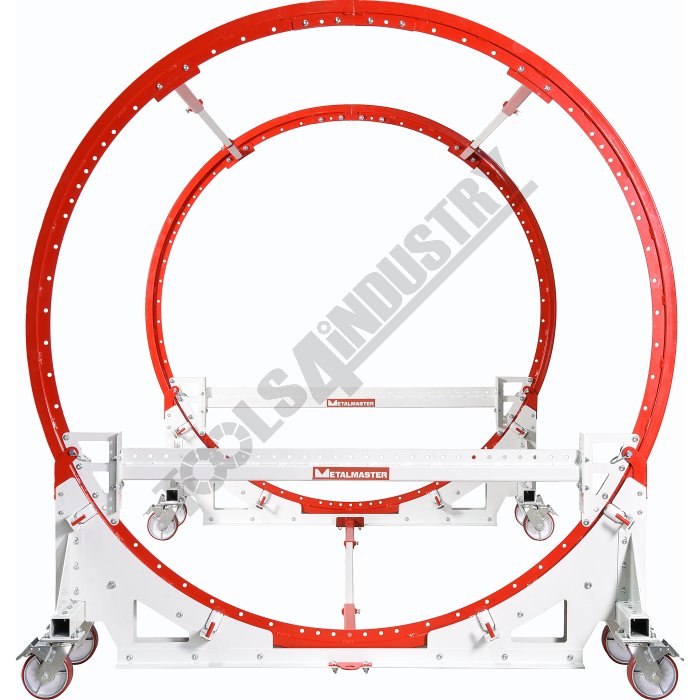

Inside Ring Diametermm1940
Outside Ring Diametermm2100
Wheel Diametermm150

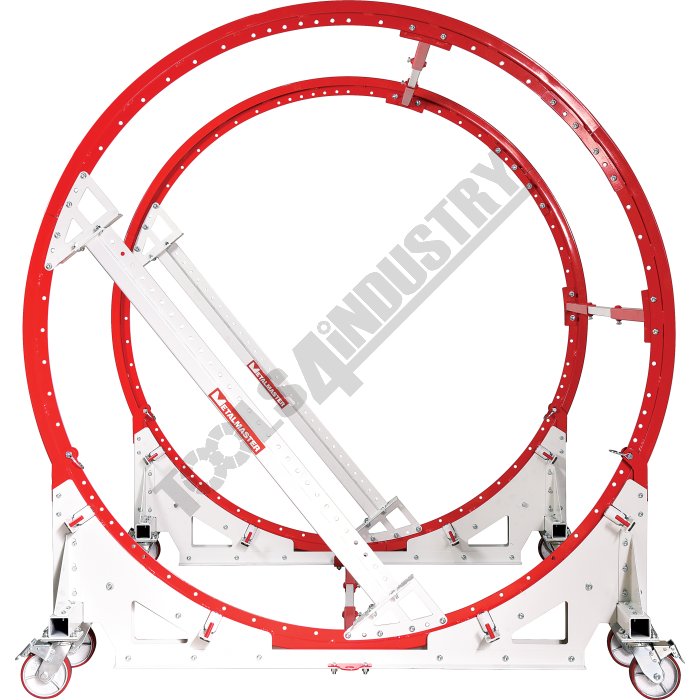

Rotation AngleDegrees360 (6 degree increments)
Weightkg300
