| Code | A272 |
|---|---|
| Model | AFR-700 |
| Capacity | 1/2" BSP Inlet & Outlet |
| Weight (kg) | 1.5 |
| Weight (m3) | 0.002 |
| Weight (Freight) | 1.5 |
| Dimensions (cm) | 33 x 8 x 8 |

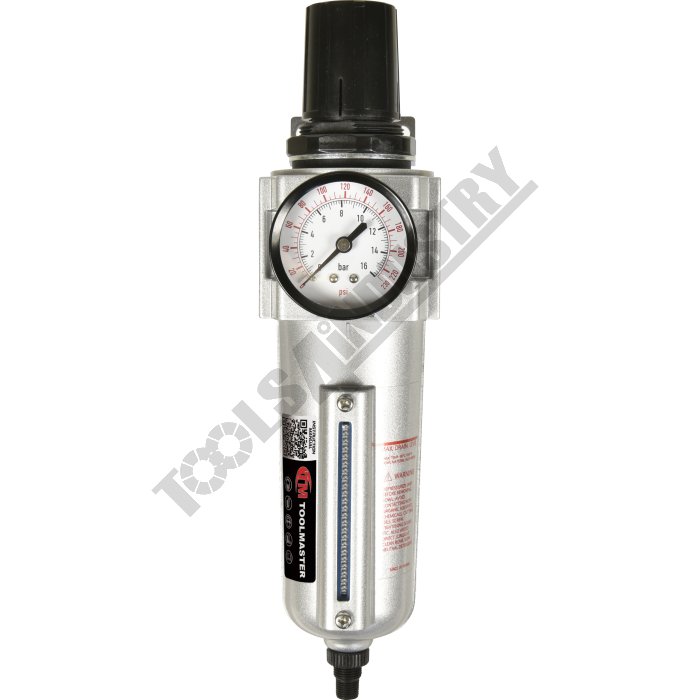

Filter Regulator AFR-700 1/2" BSP Inlet & Outlet
Features
- 7-175PSI (0.5-12 Bar) Set pressure range
- 1/2" BSP inlet & outlet sizes
- Push lock pressure adjusting knob
- Front and rear ports for pressure gauge
- Visual inspection for condensation
- Auto drain
- Drain capacity 80ml
- Made in Taiwan
Includes
- Pressure gauge
- Mounting bracket
Optional Accessories
- AFR-700L Inline lubricator
Specifications
- Compare 4 Products
- ORDER CODE
- MODEL
- Type
- Inlet & Outlet Thread
- Includes Pressure Gauge
- Includes Mounting Bracket
- Filtration Micron Capacity
- Max Flow(L/min
- Maximum Pressure
- Gauge Diameter
- Voltage
- Suits
| ORDER CODE | AFR-700 |
|---|---|
| MODEL | ~ |
| Type | 1/2" |
| Inlet & Outlet Thread | Yes |
| Includes Pressure Gauge | Yes |
| Includes Mounting Bracket | 5µm |
| Filtration Micron Capacity | 4000 |
| Max Flow(L/min | 175 psi / 12 Bar |
| Maximum Pressure | ~ |
| Gauge Diameter | ~ |
| Voltage | ~ |
| Suits |
