| Code | A224 |
|---|---|
| Model | MDR 2 |
| Capacity | CONDOR |
| Weight (kg) | 0.42 |
| Weight (m3) | 0.002 |
| Weight (Freight) | 0.666 |
| Dimensions (cm) | 22 x 14 x 6 |

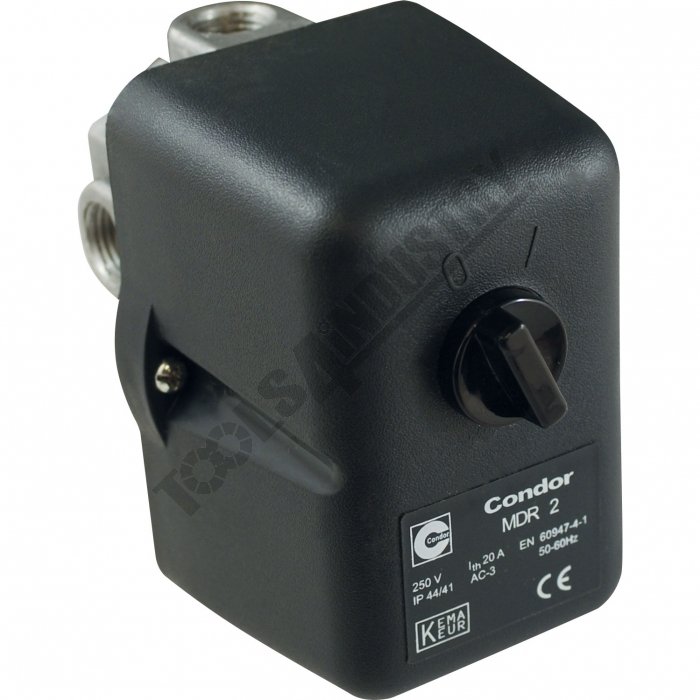

Pressure Switch MDR 2 CONDOR
Description

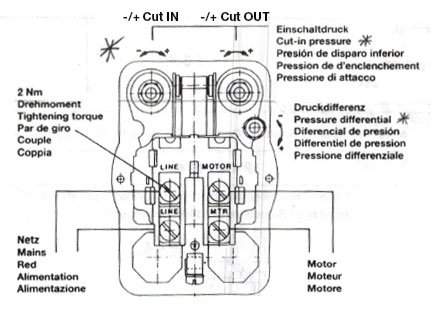

To adjust cut in / cut out pressure turn +/- Factory setting 100psi cut in & 125 cut out.To adjust differential turn It should not be necessary to make this adjustment (factory set to about 2bar (29psi)
Note: Setting higher pressure will not get the machine to make more air, and the working pressure of the tank must not be exceeded. Also note the Super16 is a single stage compressor with a max working pressure of 9 bar (140psi)
Features
- Single phase
- Switching capacity 2.2 kW
- Max. cut-out pressure 12 bar
- 2-pole (N.C.)
- Rated operational current at 240V: 20A
- Acc. to EN 60947
