L645D

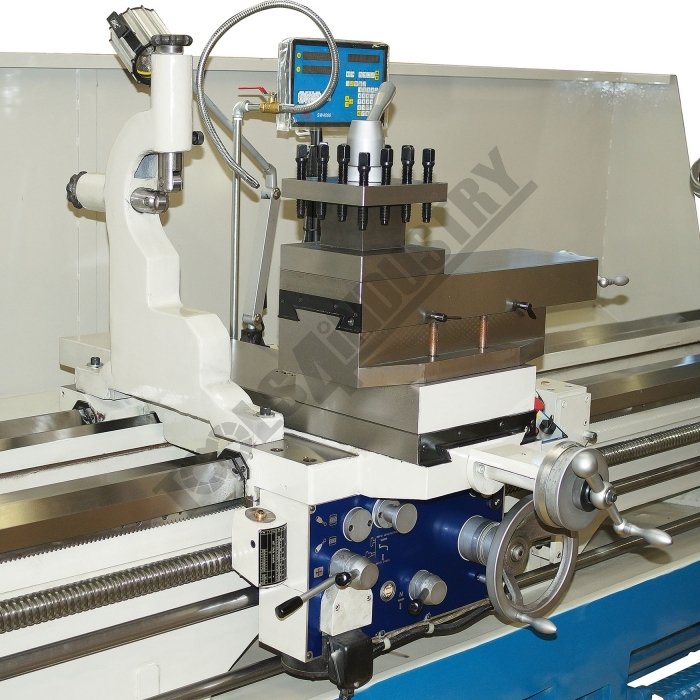

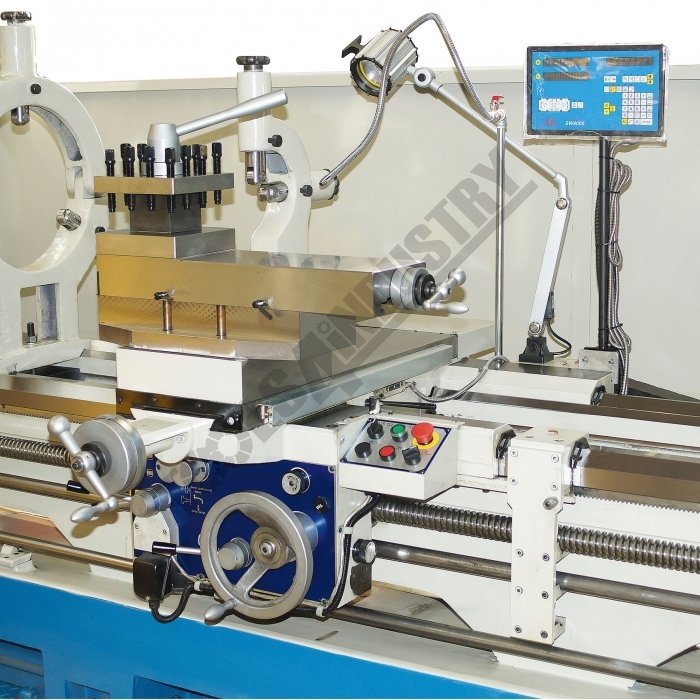

Right View

Left View

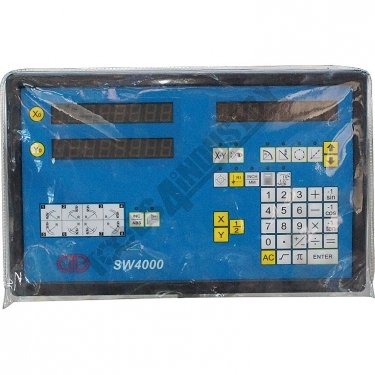

Digital Read Out

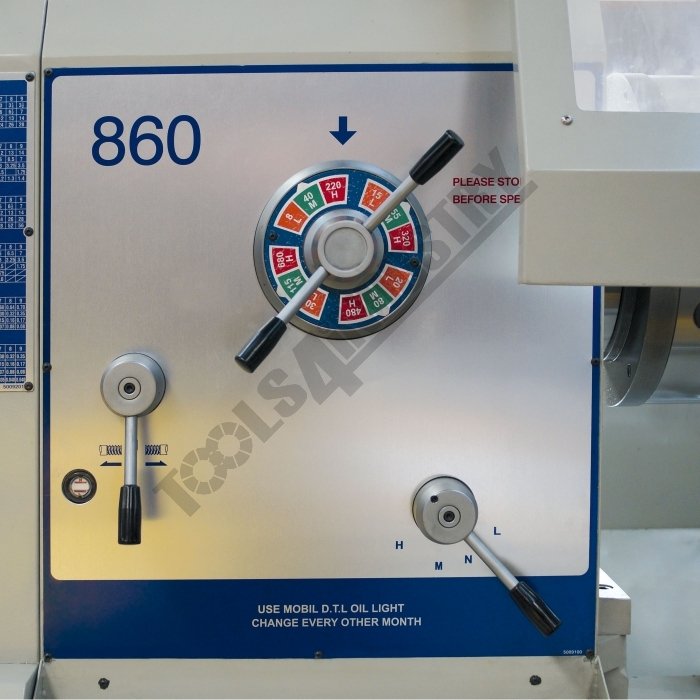

Spindle Speed Selectors

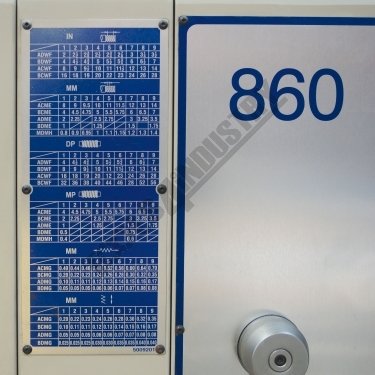

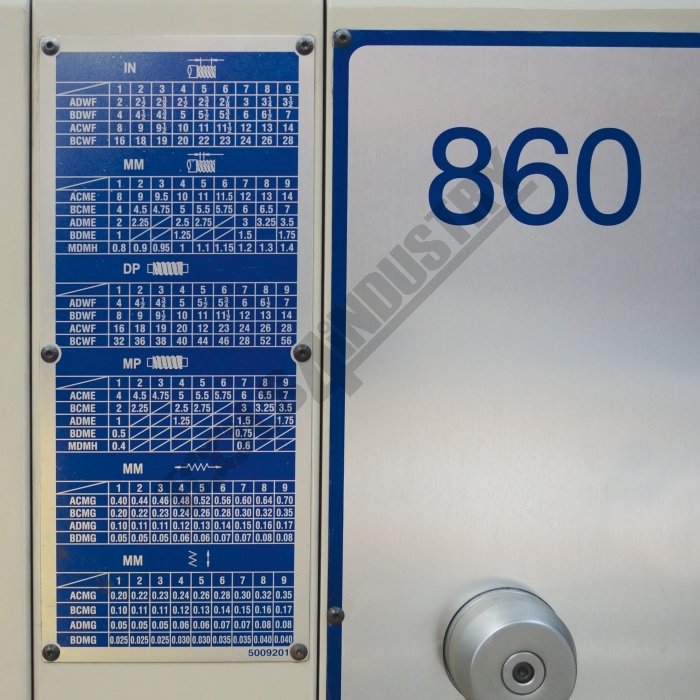

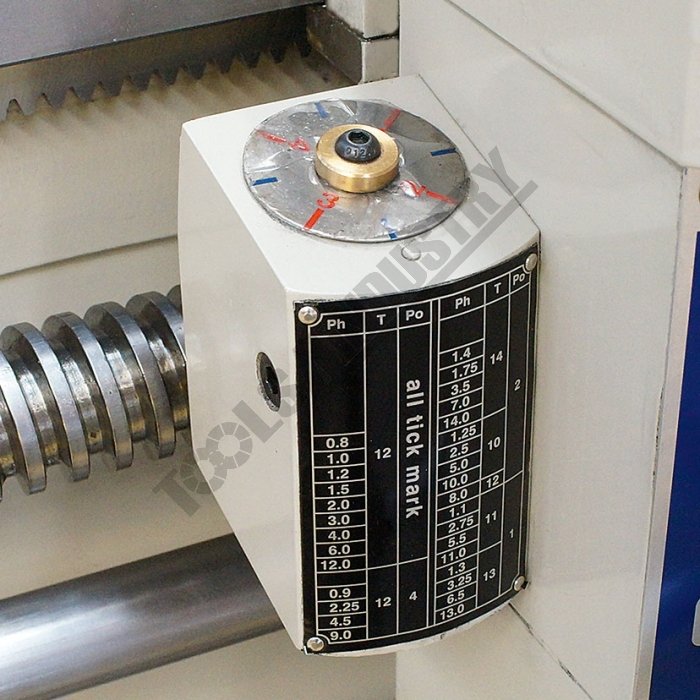

Thread Charts

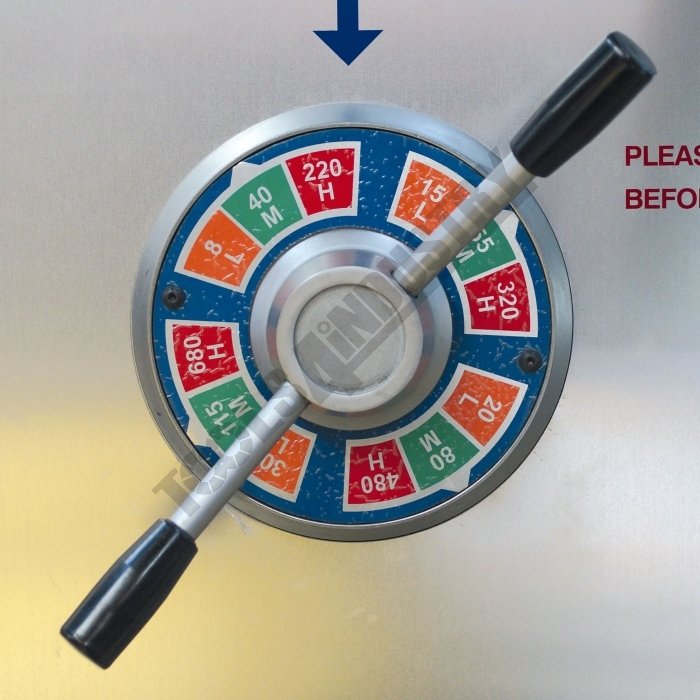

Spindle Speeds

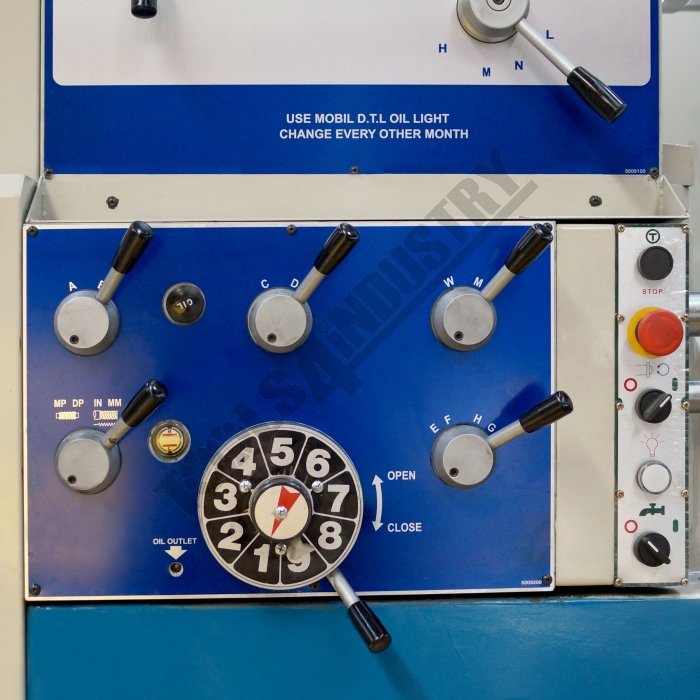

Universal Enclosed Gearbox

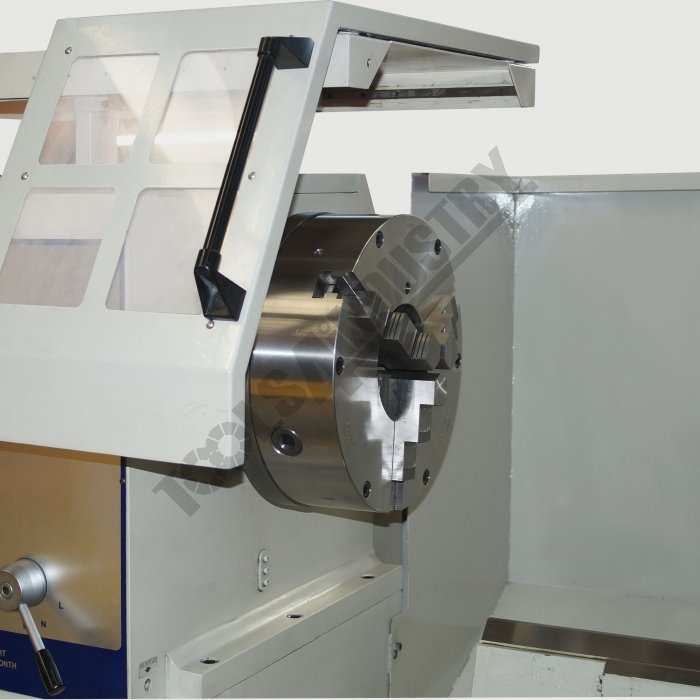

Safety Chuck Guard

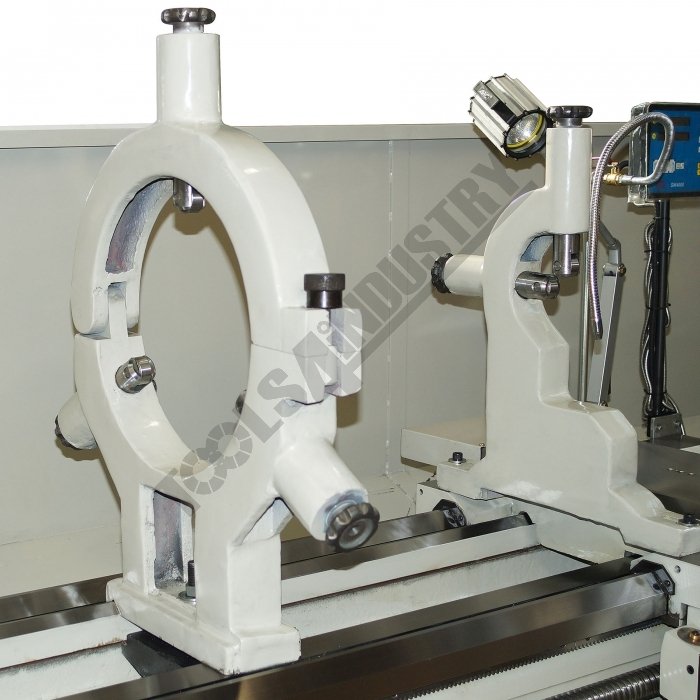

Fixed & Travelling Steadies

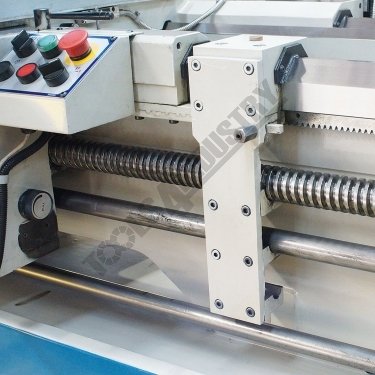

Leadscrew and Feedscrew Support Recovered

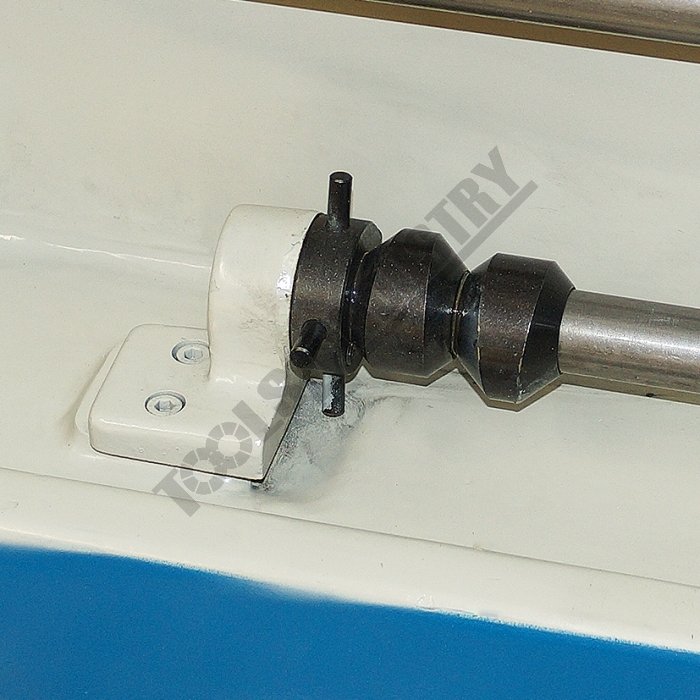

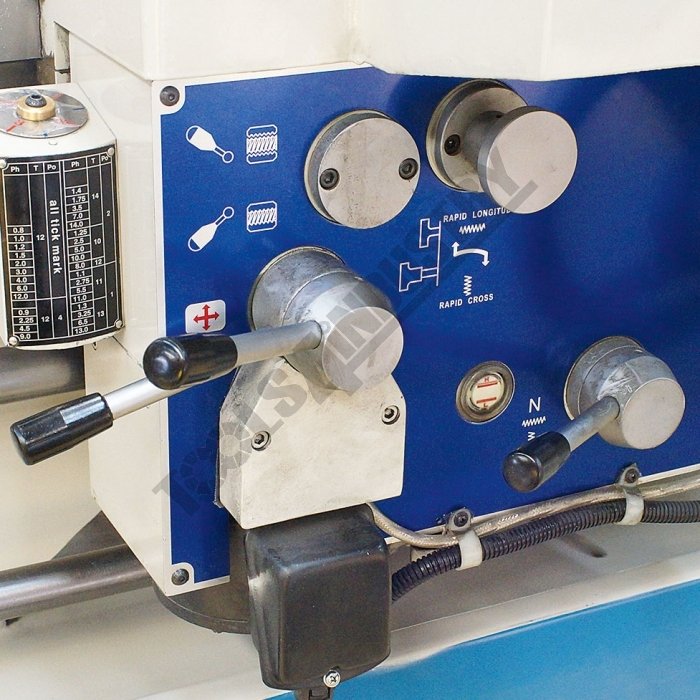

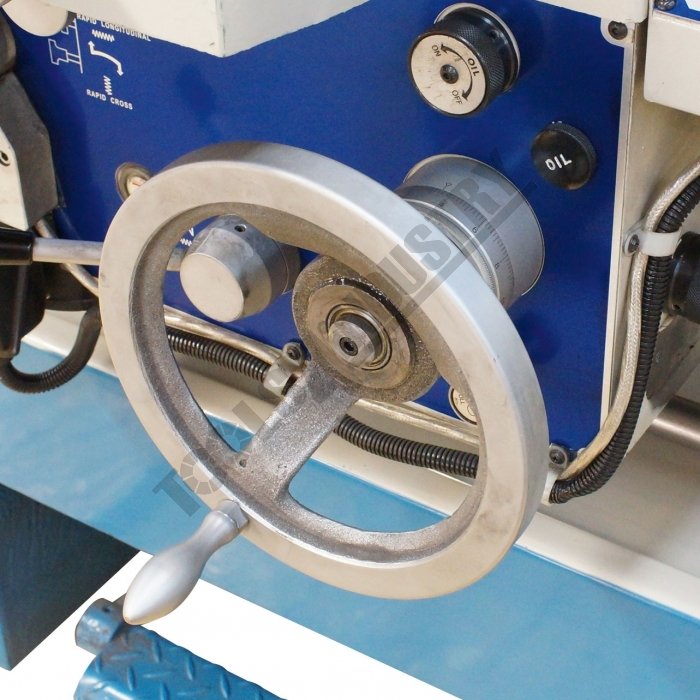

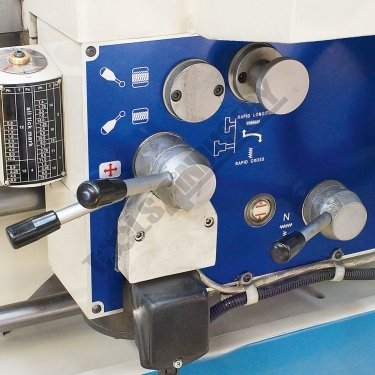

Longitudinal Feed Knockout System

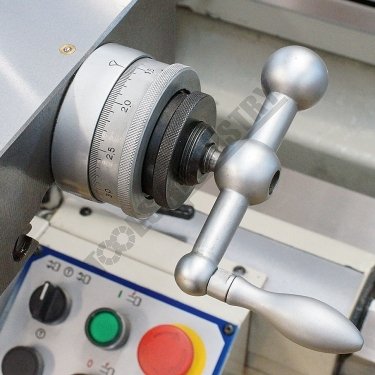

Compound Slide Hand Wheel

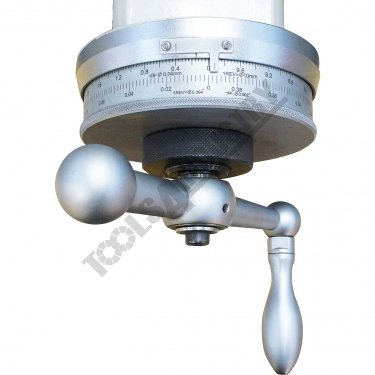

Cross Slide Hand Wheel

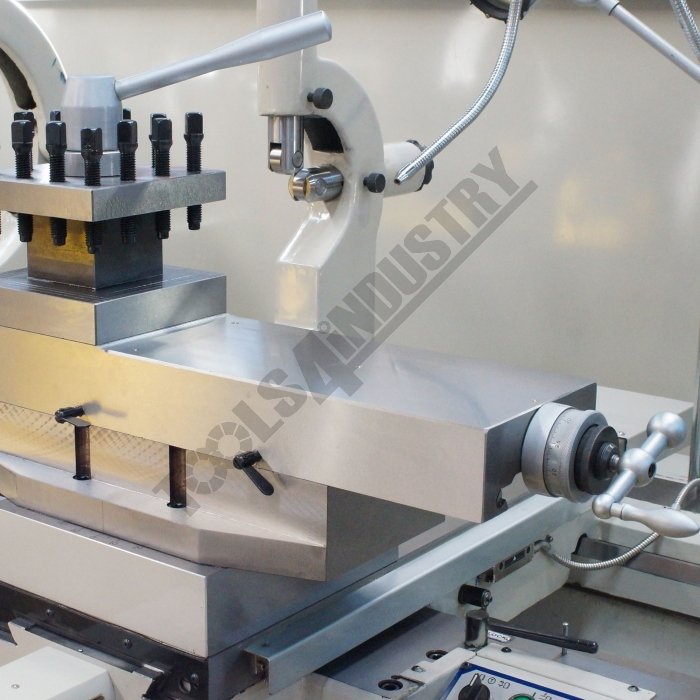

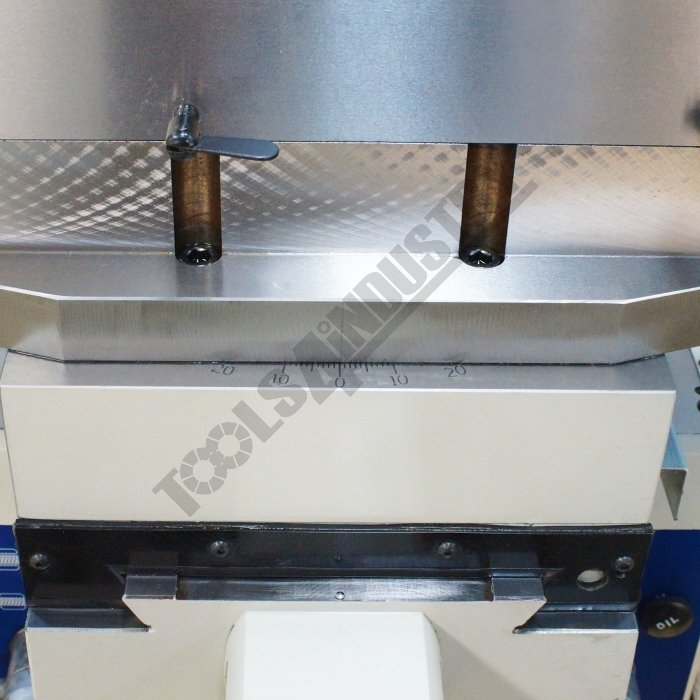

Swivel Compound Slide

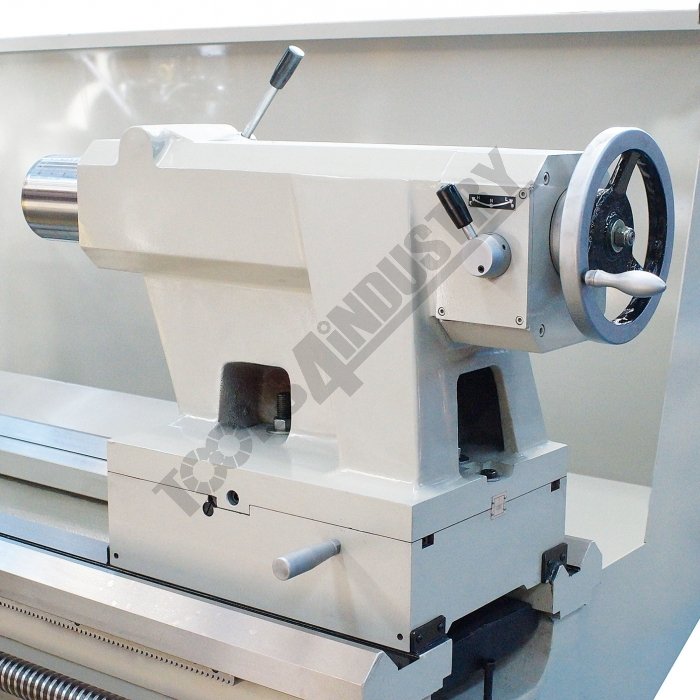

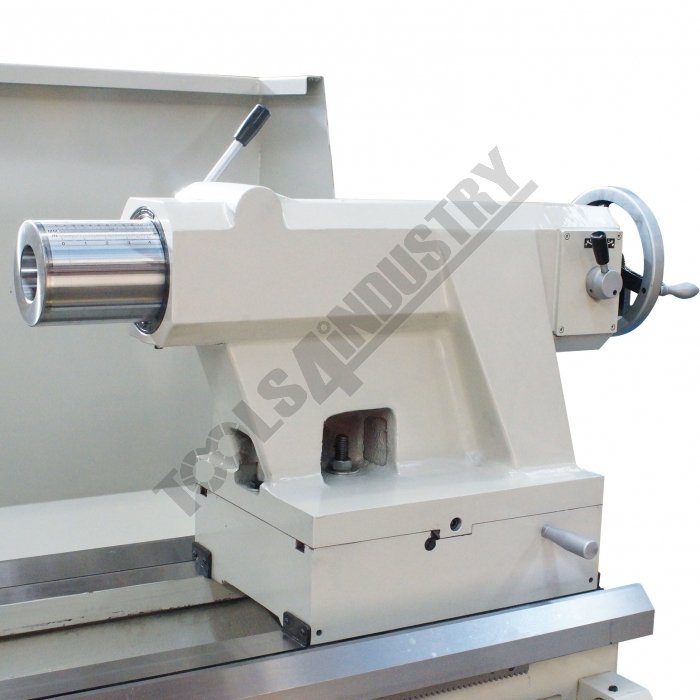

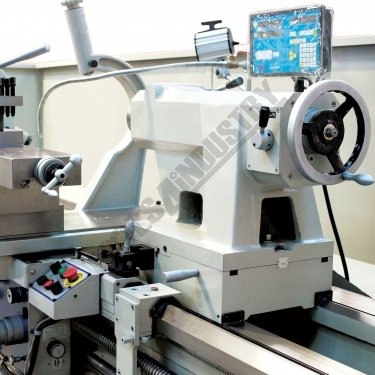

Tailstock Moving Device Rear View

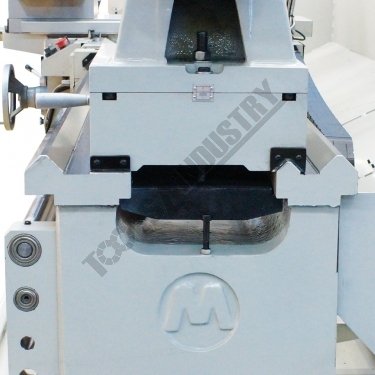

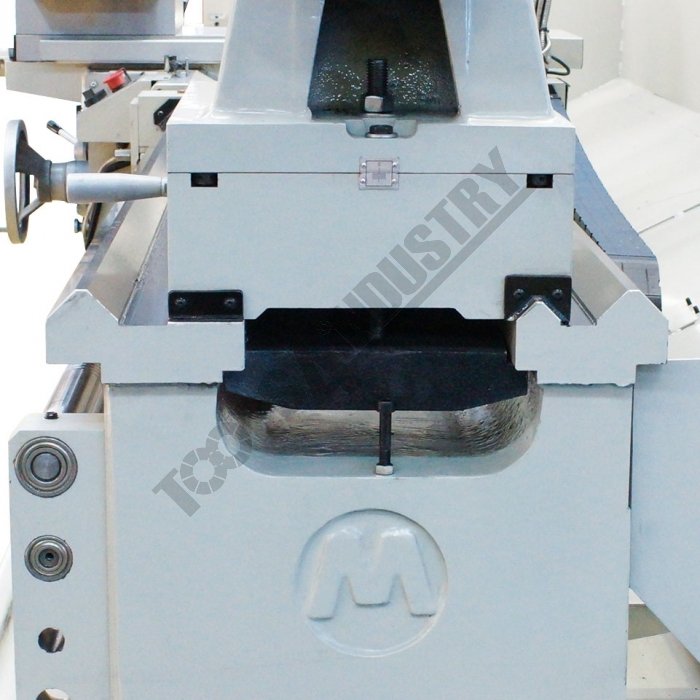

V Bed

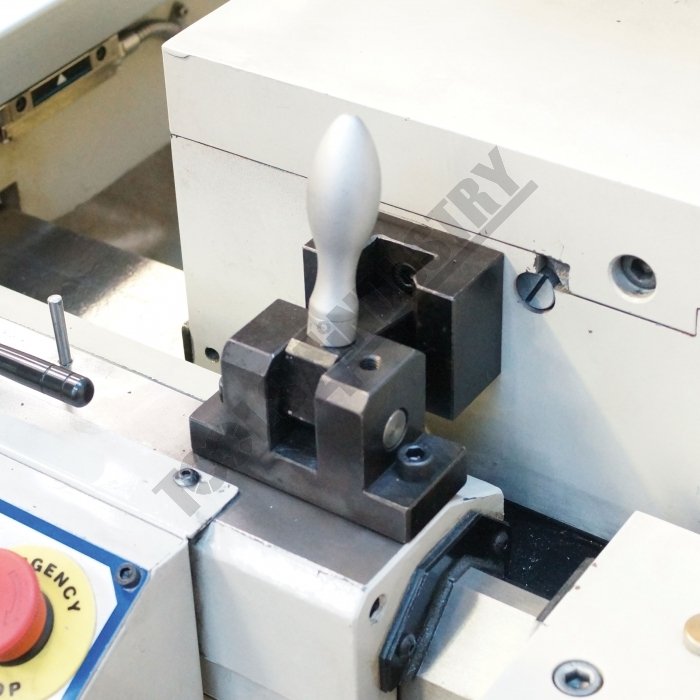

Tailstock Moving Device Locked Position

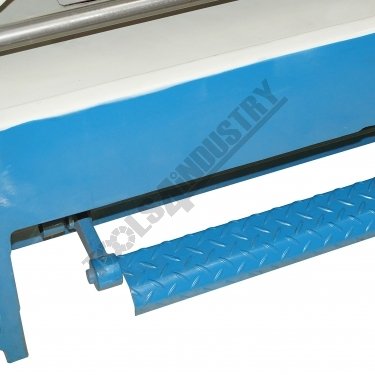

Foot Brake tmp912535803

Code	L645D
Model	TM-33130HDX
Capacity	860 x 3310mm Turning Capacity - 153mm Spindle Bore
Weight (kg)	6800
Weight (m³)	20.900
Weight (Freight)	6,959.700
Dimensions (cm)	550 x 200 x 190

Product Brochure Floor Dimensions [214 KB] Instruction Manual [5 MB] Parts List [1 MB]

TM-33130HDX Heavy Duty Centre Lathe - BIG BORE 860 x 3310mm Turning Capacity - 153mm Spindle Bore

Description

Manufactured in Taiwan

This Heavy Duty Precision Centre lathe is produced by a Quality Taiwanese manufacturer

Features

2 Axis digital readout system
Triple SKF German made bearings supporting headstock spindle
Adjustable taper roller bearings providing spindle accuracy
Precision '3V'-bed-way is induction hardened & ground
High quality one-piece Meehanite cast base increases rigidity
All gears and shafts made from alloy steel and are hardened & ground
Overload protection on drive motor and coolant system
Universal enclosed gearbox incorporating metric & imperial thread capabilities

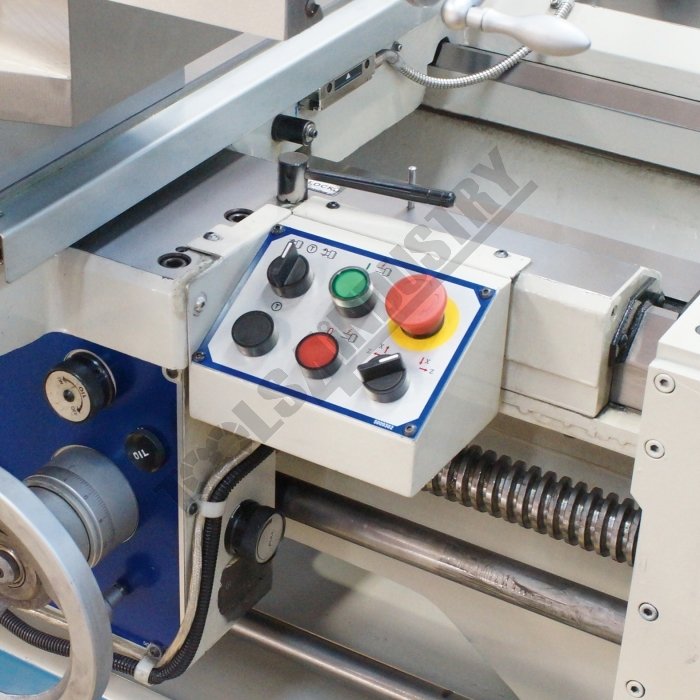

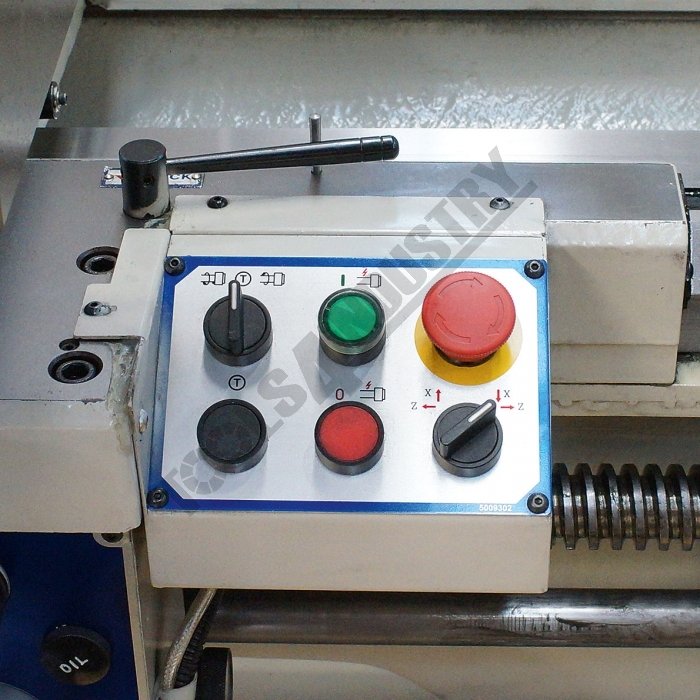

X & Z axis rapid traverse on the saddle @ 4.0m/min
510mm wide induction hardened heavy duty cast iron bed
Adjustable 4 position length-stop mechanism for accurate repetitive operation

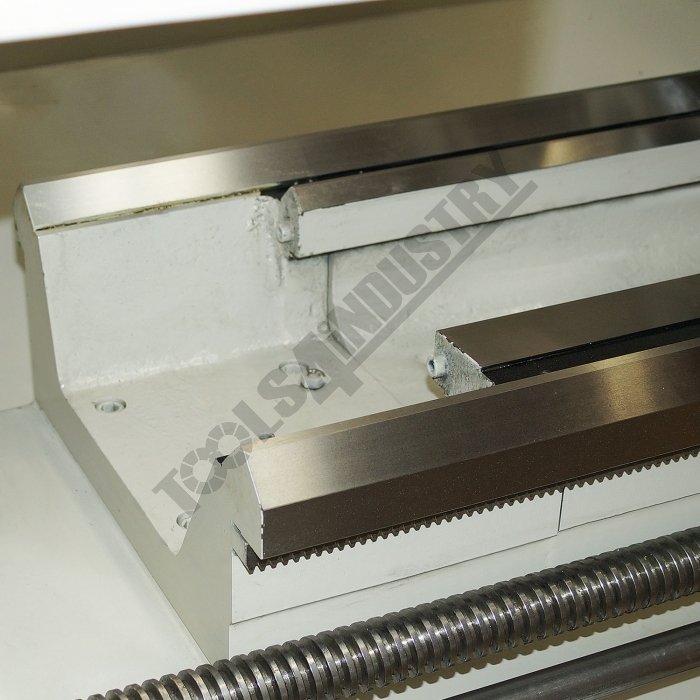

Removable gap bed allowing work piece to swing up to 1000mm
Powered longitudinal and cross feeds
One piece cast iron base increases rigidity
Metric calibrated dials

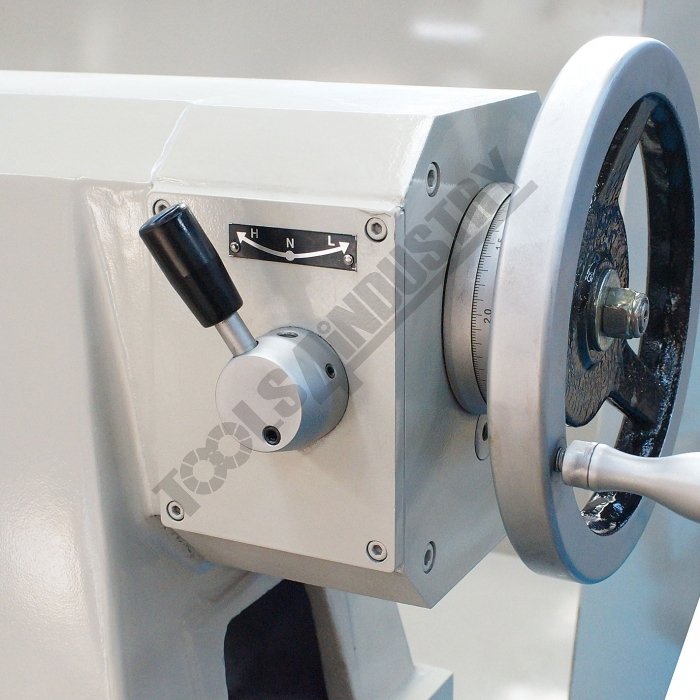

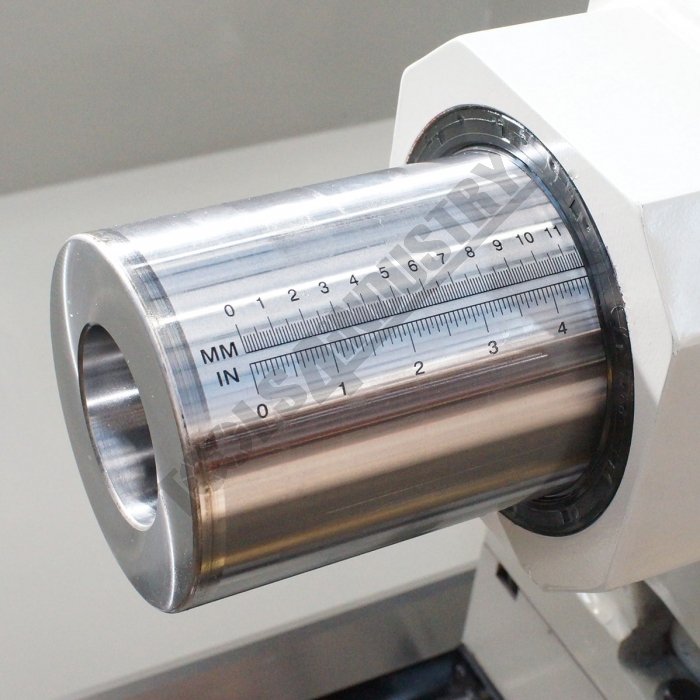

2 speed tailstock geared for large and small drilling bits
Coolant system with flexible hose enabling operator to manipulate flow direction
Lubrication pump on saddle oiling slides
Oil sight glass for head stock and gearbox & apron
Low voltage halogen work light
Ball bearing mechanism assists tail stock movement easily
A2-11 direct spindle mount
12 spindle speeds 8-680rpm
Large 153mm spindle bore, (Option 230mm)
15kW / 20HP 415V main motor

Includes

2 Axis digital readout system
400mm 3-jaw chuck with reversing jaws
500mm 4-jaw chuck
Faceplate
Fixed and travelling steadies with roller fingers
Dead centres
Spindle reducing bush
Full length rear splash guard
Tailstock moving device

Specifications
