L637D

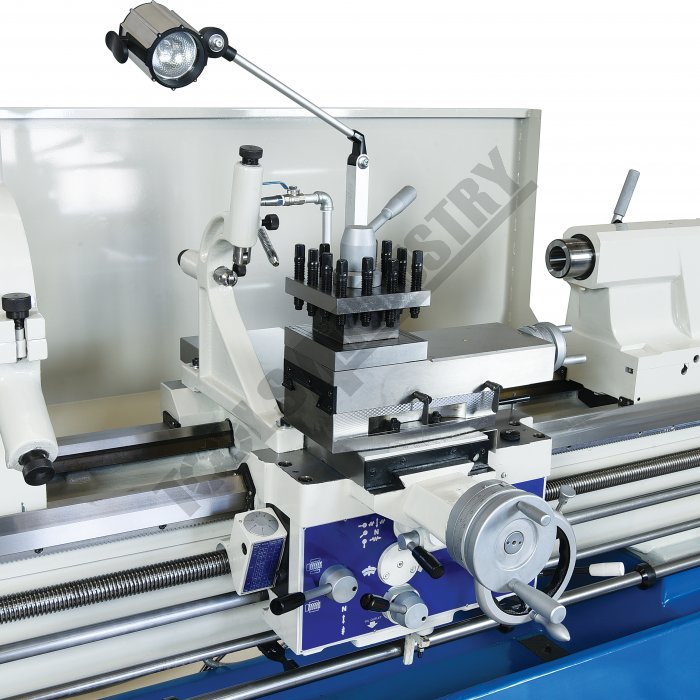

Left View

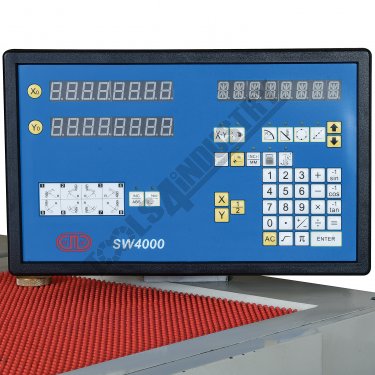

2 Axis Digital Readout

Headstock

Spindle Speeds

Spindle Speed Selectors

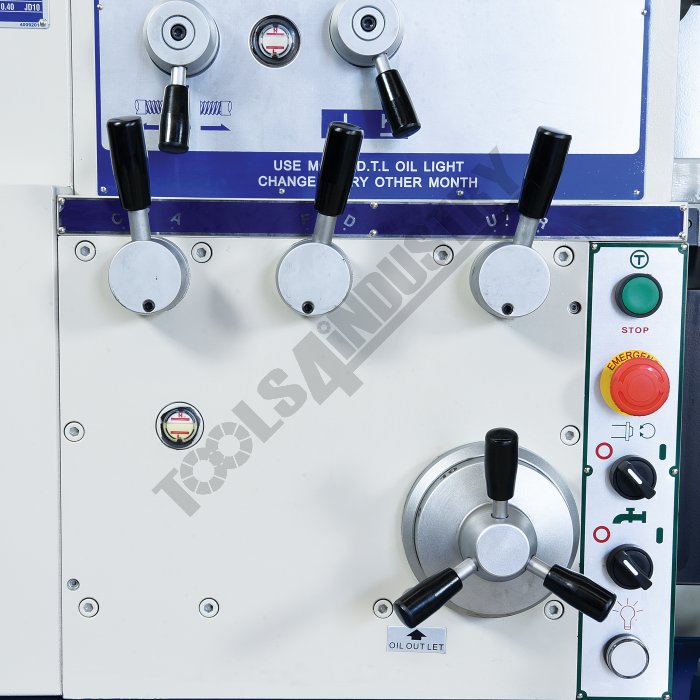

Universal Enclosed Gearbox

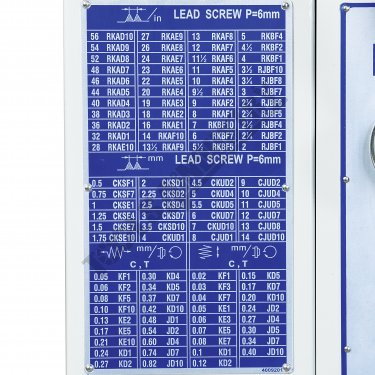

Thread Charts

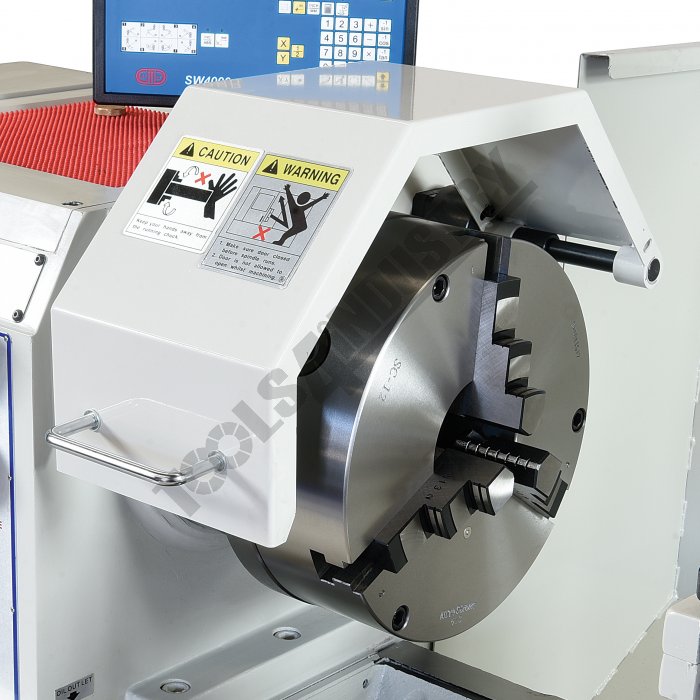

Safety Chuck Guard

Safety Chuck Guard Open

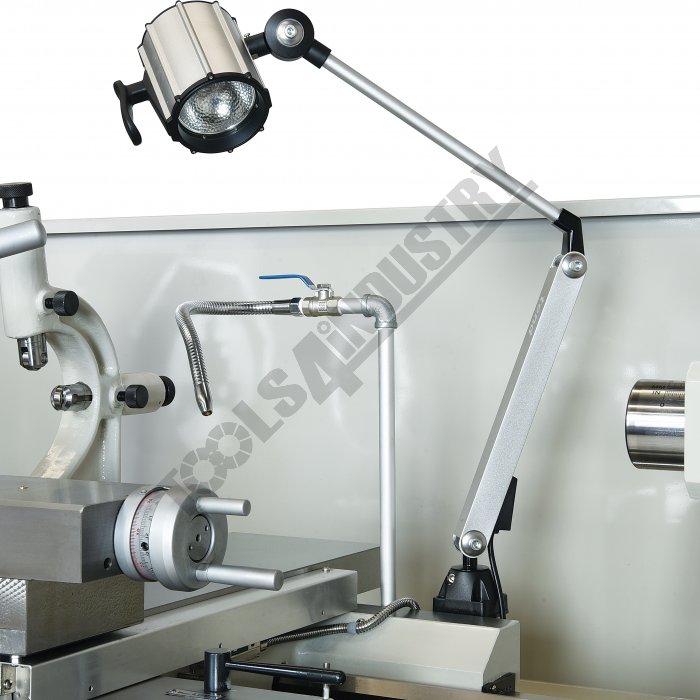

Coolant System and Work Light

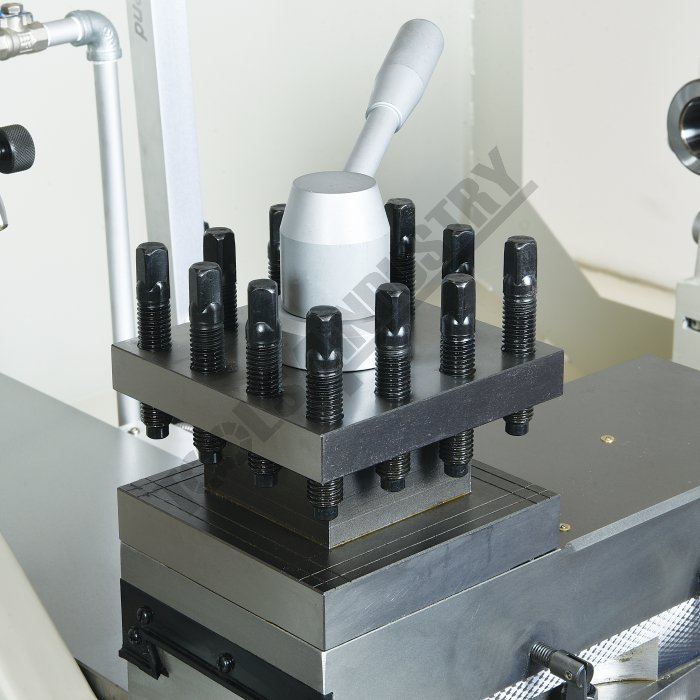

Toolpost

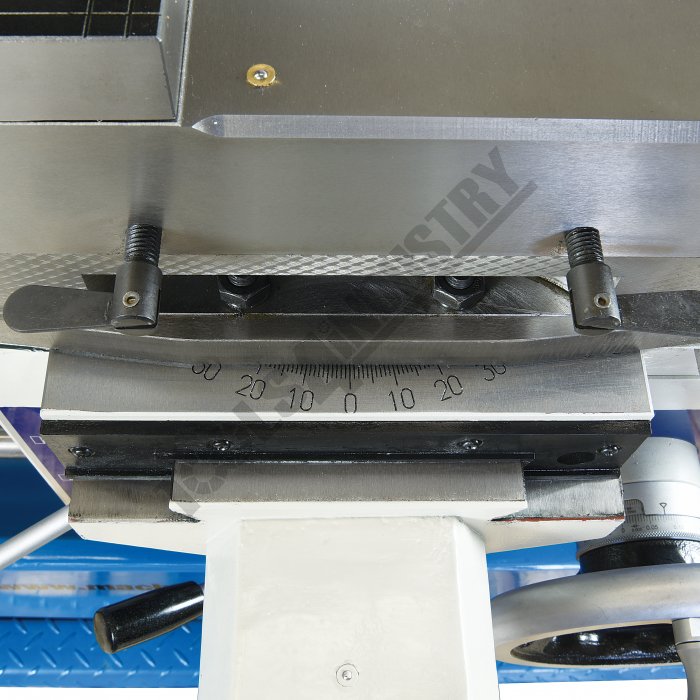

Compound Slide Angle Sclae

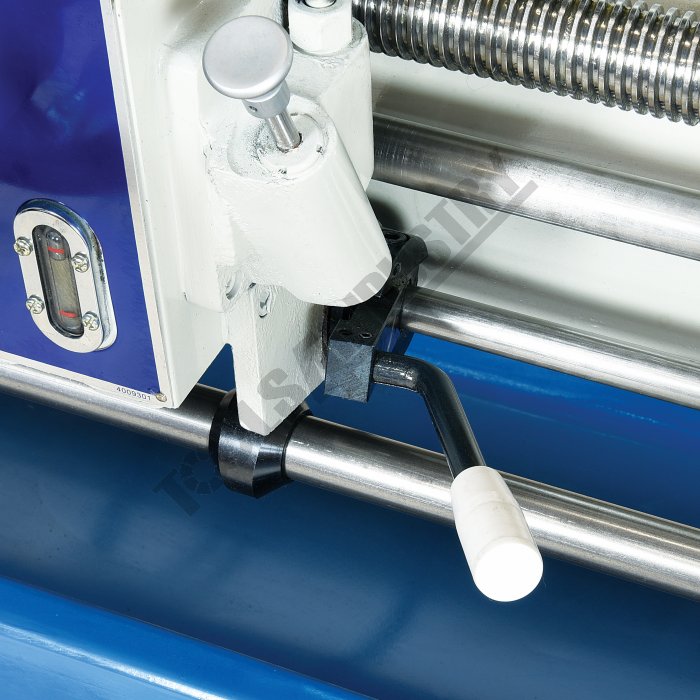

Spindle Engagement Lever

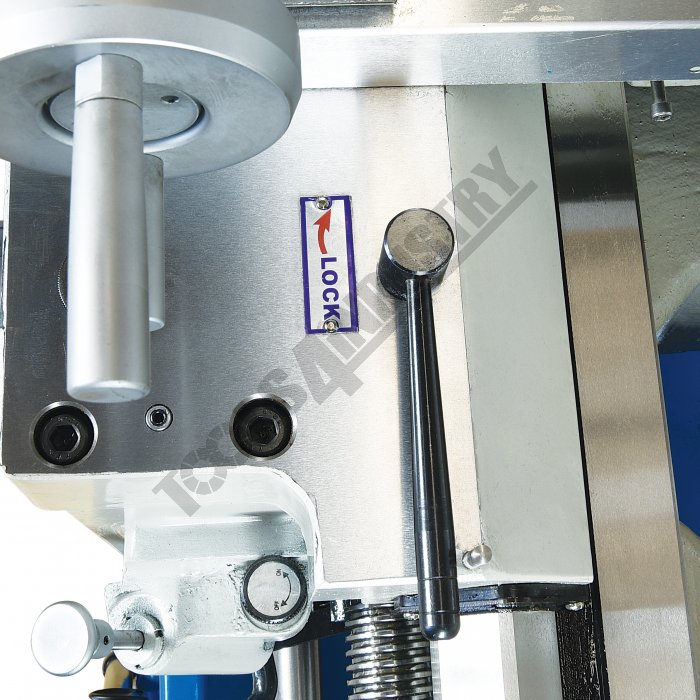

Saddle Lock

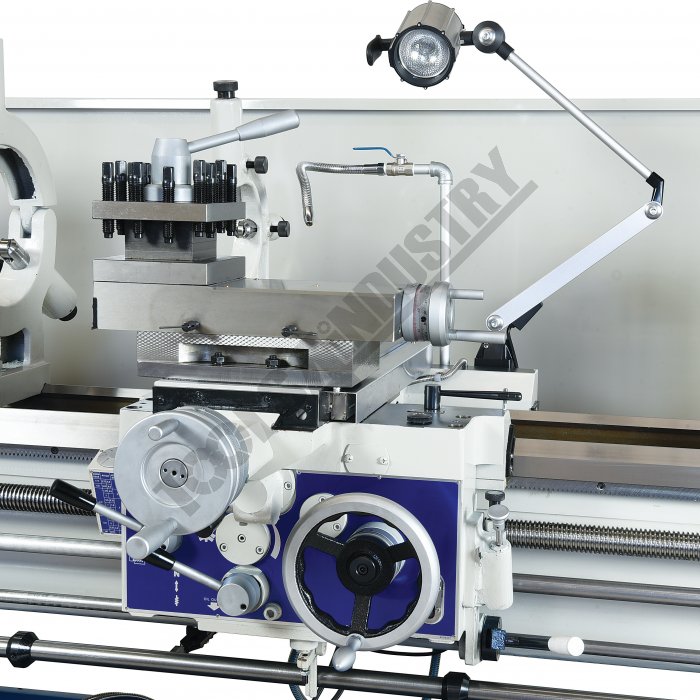

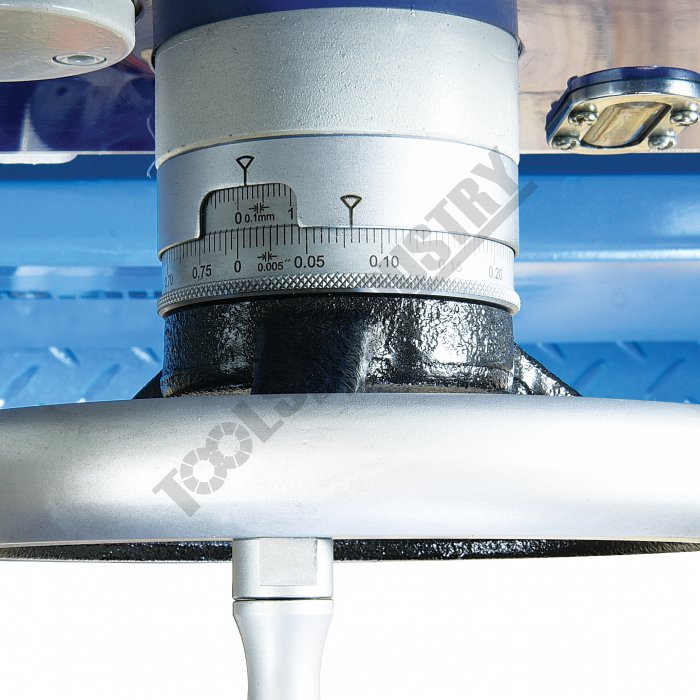

Saddle Hand Wheel

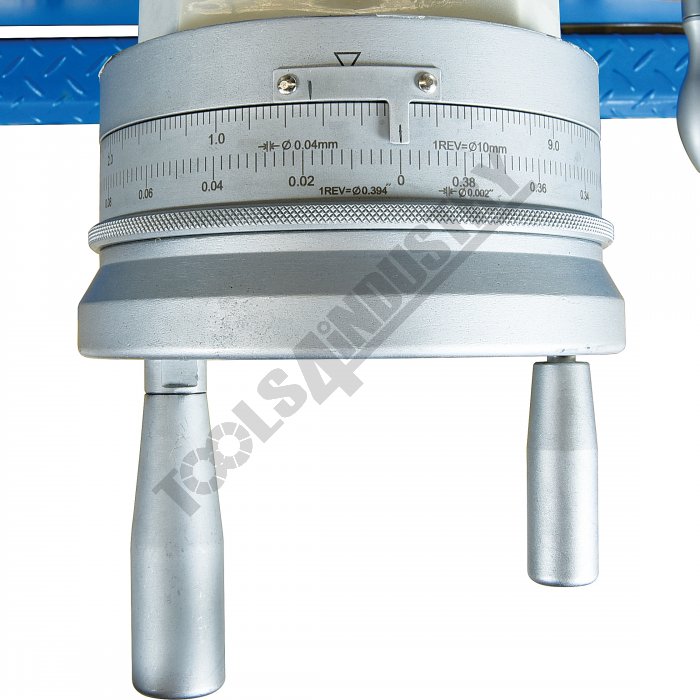

Cross Feed Hand Wheel

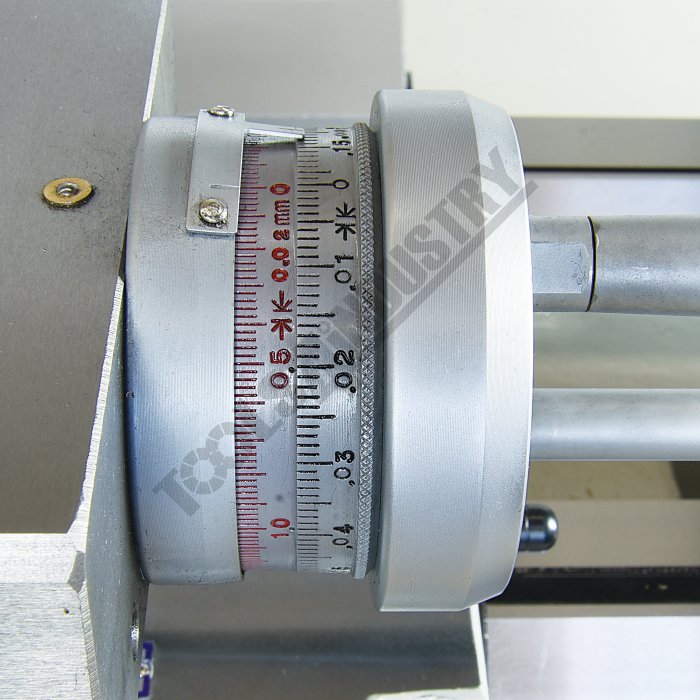

Compound Slide Hand Wheel

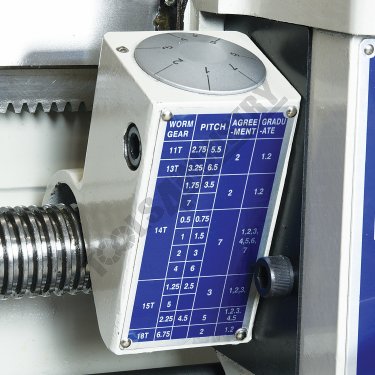

Thread Chasing Dial

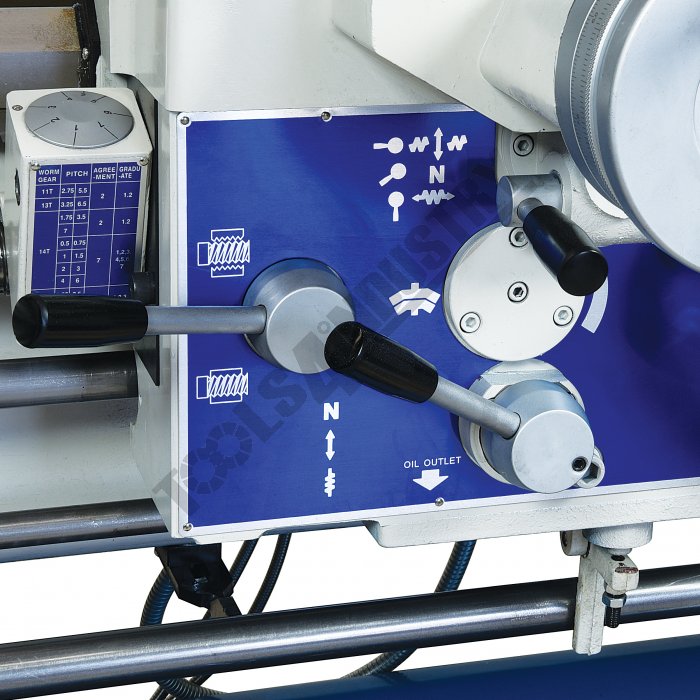

Feed Engagement Levers

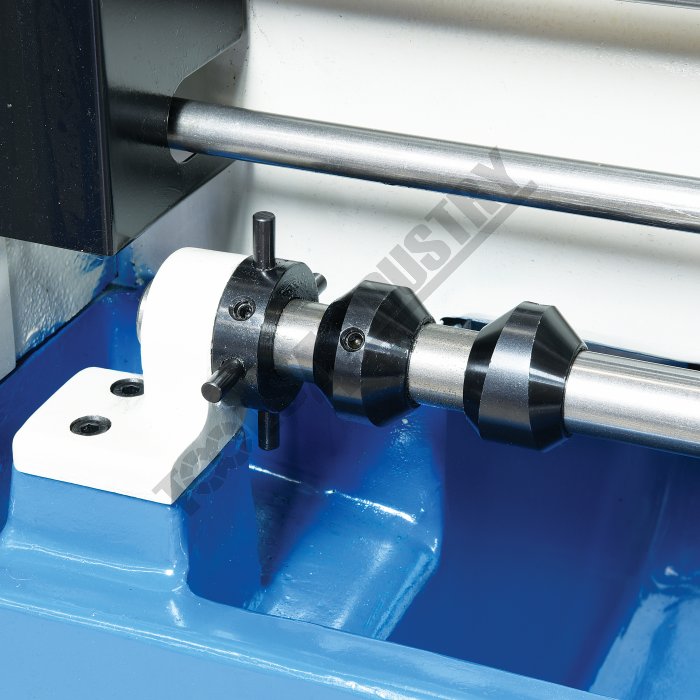

Adjustable 4 Position Length Stop

Code	L637D
Model	TM-2260G
Capacity	560 x 1500mm Turning Capacity - 105mm Spindle Bore
Weight (kg)	2550
Weight (m³)	6.437
Weight (Freight)	2550
Dimensions (cm)	290 x 115 x 193

Product Brochure Instruction Manual [3 MB] Parts List [2 MB]

TM-2260G Centre Lathe 560 x 1500mm Turning Capacity - 105mm Spindle Bore

Description

Manufactured in Taiwan

Features

2 Axis digital readout system
Triple SKF German made bearings supporting headstock spindle
Adjustable taper roller bearings providing spindle accuracy
Precision 'V'-beds & headstock gears are all hardened & ground

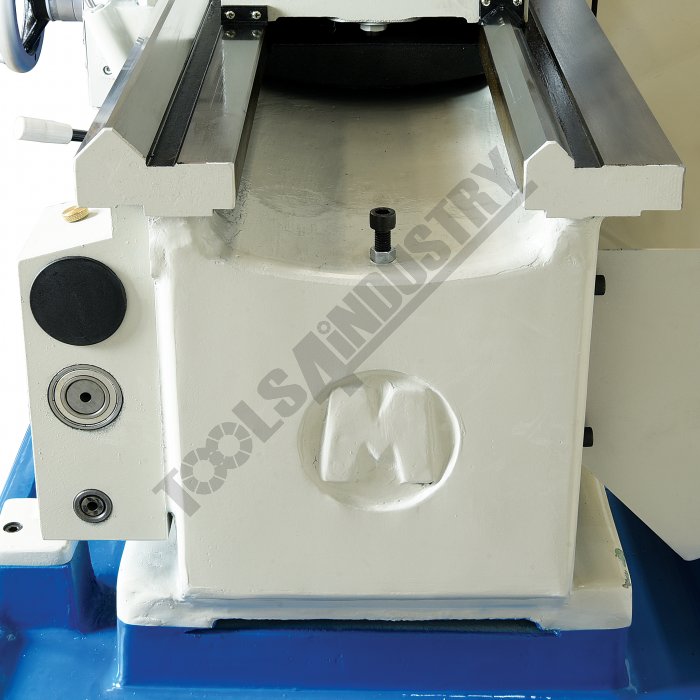

High quality one-piece Meehanite cast base increases rigidity
Overload protection on drive motor and coolant system
Universal enclosed gearbox incorporating metric & imperial thread capabilities
Inching button incorporated on the control panel for convenient spindle speed selection

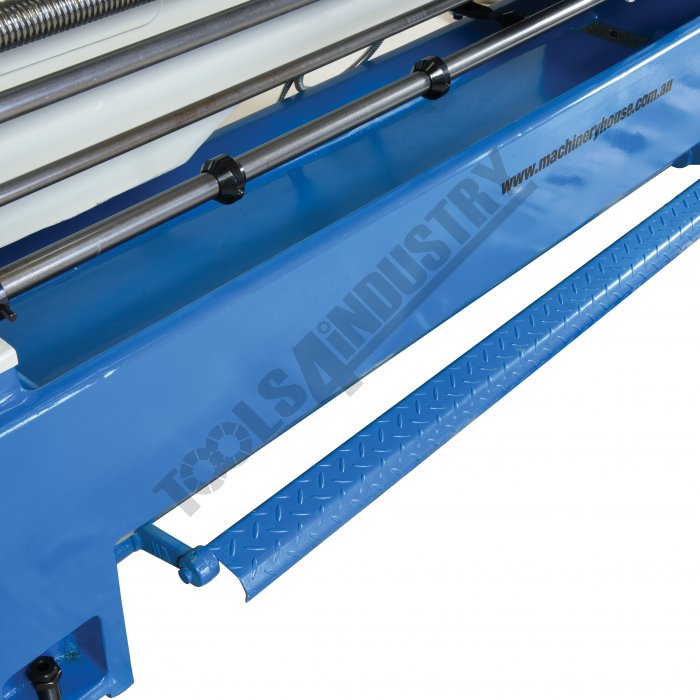

Foot operated spindle brake with safety cut out switch
350mm wide induction hardened heavy duty cast iron bed

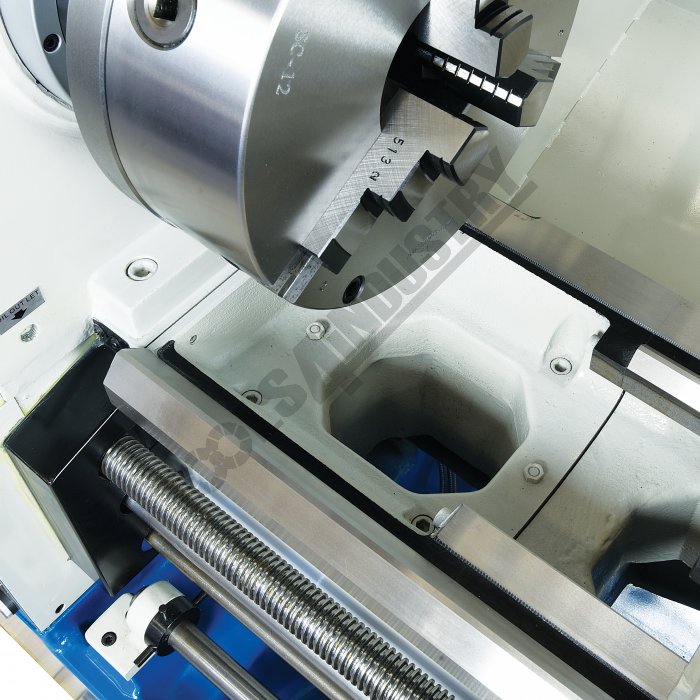

Removable gap bed allowing work piece to swing up to 788mm
Powered longitudinal and cross feeds

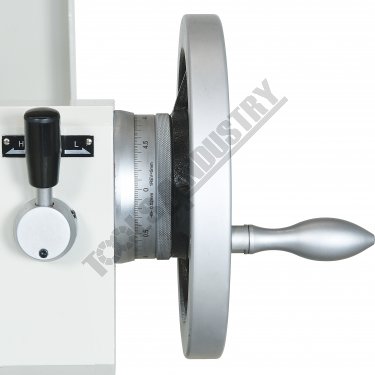

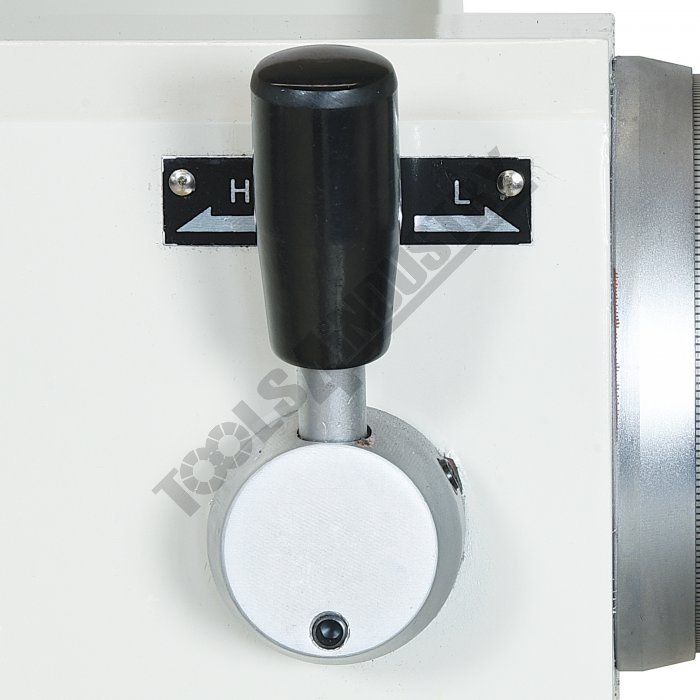

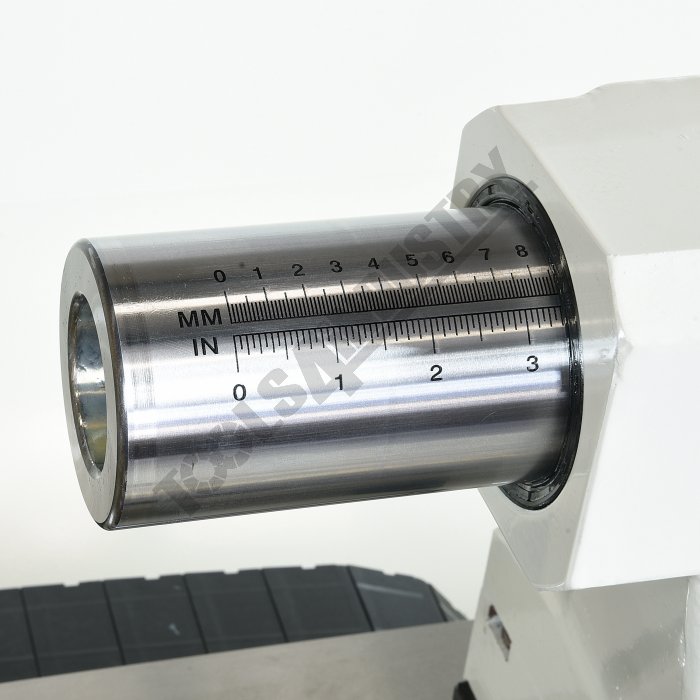

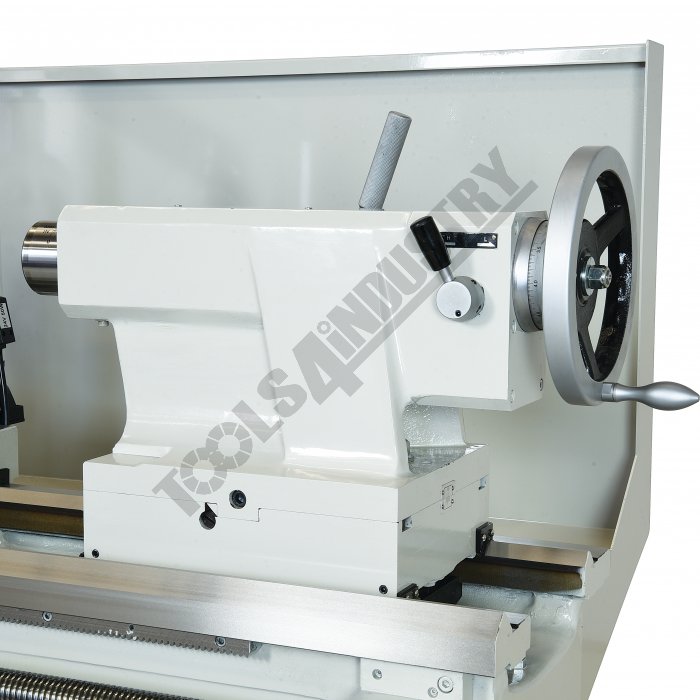

2 speed high/low lever on tailstock
Slide-way mechanical lubrication pump driven via the saddle hand-wheel
Adjustable 4 position length-stop mechanism for accurate repetitive operation
Dual calibrated dials incorporating metric & imperial graduations
Coolant system with flexible hose enabling operator to manipulate flow direction
Roller bearings inserted to assist tail stock movement
Oil sight glass for head stock, gearbox and apron
Low voltage halogen work light
D1-8 camlock spindle for quick chuck removal
12 Spindle speeds from 16 - 1600rpm
Large 105mm spindle bore
7.5kW / 10HP 415V main motor

Includes

2 Axis digital readout system

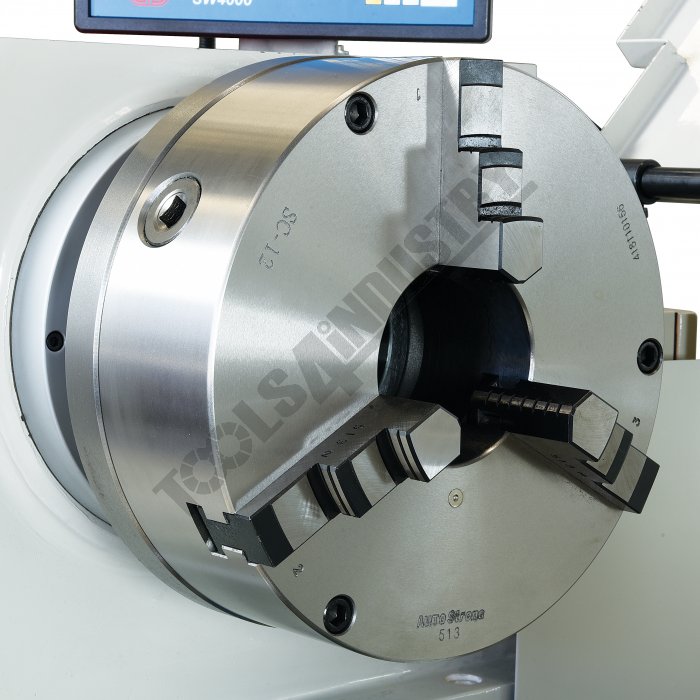

310mm 3-jaw chuck with reverse jaws
400mm 4-jaw chuck
406mm face plate

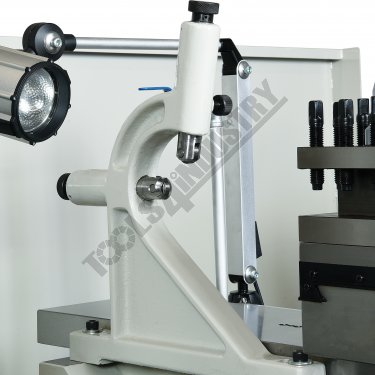

Fixed steady with roller bearings
Travelling steady with roller bearings
4-position knock out feed system
Dead centres
Thread chasing dial
Foot brake
Coolant system
Work light
Rear splash guard
Spindle reducing bush
Instruction booklet

Specifications

Compare 37 Products
ORDER CODE
MODEL
Swing Over Bedmm
Distance Between Centresmm
Spindle Boremm
Swing In Gapmm
Swing Over Cross-slidemm
Digital Readout System Fitted
Quick Change Toolpost Fitted
Leadscrew Covers Fitted
Taper Turning Attachment
Coolant System
Tool Height To Suitmm
Centre Heightmm
Spindle Nose Size or Type
Bed Widthmm
Headstock Spindle TaperMT
Tailstock TaperMT
Cross Slide Travelmm
Compound Slide Travelmm
Leadscrew Type
Metric Cross Feed (X-Axis)mm/rev
Imperial Cross Feed (X-Axis)inch/rev
Metric Longitudinal Feed (Z-Axis)mm/rev
Imperial Longitudinal Feed (Z-Axis)inch/rev
Metric Thread Steps & PitchNo. / mm
Imperial Thread Steps & TPINo. / TPI
3 Jaw Chuck Diametermm
4 Jaw Chuck Diametermm
Spindle Steps / SpeedsNo. / rpm
Motor PowerkW / hp
Voltage / AmperageV / amp
Shipping Dimensions (L x W x H)cm
Nett Weightkg

L637D
TM-2260G
560
1500
105
788
340
Yes
Optional
~
Optional
Yes
25
280
D1-8 Camlock
350
7
5
300
200
Metric
0.02 - 0.4
~
0.05 - 0.82
~
24 (0.5 - 14)
44 (2 - 56)
310
400
12 (16 - 1600)
7.5 / 10
415
290 x 115 x 193
2550
