D7142 Digital Readout Counter - 5µm ES14-2x
Digital Readout Counter - 5µm

Side ViewBack View
EASSON
Code:D7142
Model:ES14-2x
Capacity:2-Axis
Weight (Nett):5.72 Kg
Weight (Cubic):0.018 m3
Weight (Freight):5.994 Kg
Dimensions:40 x 26 x 17.7
In Stock:Contact your Dealer
Instruction Sheets
ES14 Manual [3.18 MB]
Resetting an Easson Display [350.15 KB]

Digital Readout Counter - 5µm

Description
ES14 SERIES PROGRAMMABLE DIGITAL READOUT SYSTEMS

EASSON - Always committed to Quality, Technology & Innovation
Multi function display unit. Can be used with 5µm or 1µm scales for either mills, grinders or lathes.
Individual programming allows for the unit to be set-up for individual applications. Can be set up for Mill, Lathe, Grinder, Borer, and EDM function.
Each axis can be set up for either 5µm or 1µm

Easson GS series Glass Grating Linear Transducer

• Robust design - totally sealed
• State-of-the-art electronics
• Highly durable switching membrane
• High noise immunity and designed to EMC specifications
• Ultra low temperature rise transformers
• Packed with performance features

Double Seal Designed Scales

• The plastic seals of the transducer use an innovative material
• to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lip geometry offer low slide resistance.

• 100% Laser Calibration
• All glass grating transducers are individually inspected and calibrated by our in-house laser calibrator to ensure accuracy complies 100% with the specifications.

• Advanced Optical Measuring System
• The slide carrier of the GS series scales, use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market.
• The glass grating slide-ways are lapped, and JIS standard P5 grade bearings are used to achieve smooth and accurate movement and long working life.

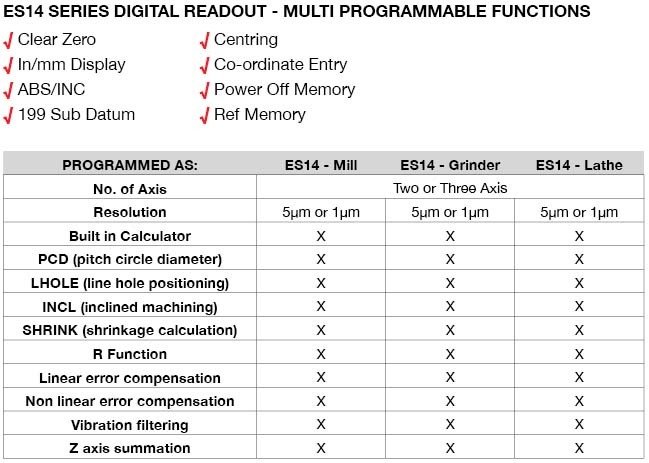

ES14 SERIES DIGITAL READOUT - MULTI PROGRAMMABLE FUNCTIONS
Clear Zero
Centring
In/mm Display
Co-ordinate Entry
ABS/INC
Power Off Memory
199 Sub Datum
Ref Memory
